Erbauer ERB2504SE - Maintenance Procedures; General Maintenance Tasks; Blade Mechanism Adjustments; Lubrication Guidelines

ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
MAINTENANCEMAINTENANCE
GENERAL MAINTENANCE
Warning
:
Before maintaining or
lubricating the saw, turn switch off,
remove the switch key, and unplug the
saw.
1) Clean out all sawdust that has
accumulated inside the saw cabinet and
the motor.
2) Polish the saw table with an automotive
wax to keep it clean and to make it easier
to slide the workpiece.
3) Clean cutting blades with pitch and gum
remover.
4) I
mmediately
replace a
worn, cut, or
damaged power cord.
Warning
:
All electrical or mechanical
repairs should be attempted only by
a trained repair technician. Contact the
nearest Service Centre for service. Use
only identical replacement parts. Any other
parts may create a hazard.
5) Use liquid dish washing detergent and
water to clean all plastic parts.
Note:
Certain cleaning chemicals can
damage plastic parts.
6) Avoid use of the following cleaning
chemicals or solvents: ammonia and
household detergents containing ammonia.
Blade raising and tilting mechanism
After each fi ve full hours of operation,
the blade raising mechanism and tilting
mechanism should be checked for
looseness, binding, or other abnormalities.
With the saw disconnected from the power
source, turn the saw upside down and
alternately pull upward and downward on
the motor unit. Observe any movement of
the motor mounting mechanism.

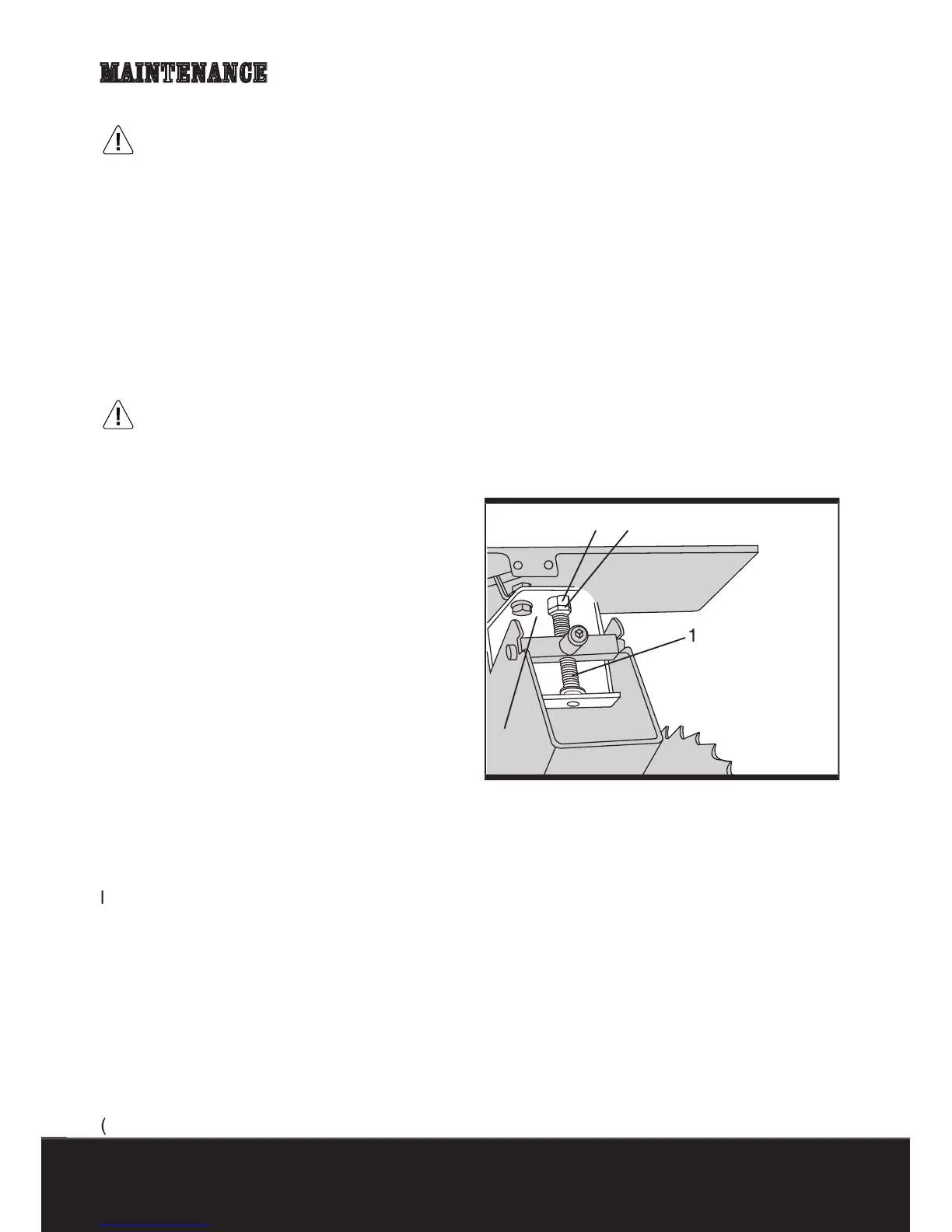

Adjust
l
ooseness or play in the blade raising
screw (1) as follows:
1) Using a 14 mm spanner, loosen the
check-nut (2).
2) Adjust nut (3) until it is fi nger-tight
against the bracket (4), and then back off
the nut (3) 1/6 turn.
3) Tighten nut (2) with a second 14 mm
spanner
, while holding nut (3) with the fi rst
spanner
in place. Maximum allowable play
of
screw rod (1) is 0.16 in. (4 mm)
(
See fi g.
26).
You can place a small amount of dry
lubricant on bevel angle adjustment rod
also. This rod (1) must be kept clean and
free of sawdust, gum, pitch, and other
contaminants for smooth operation.
If excessive looseness is observed in any
parts of the blade raising mechanism or
tilting mechanism, take the complete unit
to a Service Centre.
LUBRICATION
All motor bearings are permanently
lubricated at the factory and require no
additional lubrication.
On all mechanical parts of your table saw
where a pivot or threaded rod are present,
lubricate using graphite or silicone. These
dry lubricants will not hold sawdust as
would oil or grease.
1
2
3
4
Fig
26
