ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
INSTRUCTIONS
INSTRUCTIONS
efore using your
table
s
aw be sure to read the instruction
manual carefully.
Operating instructions
1.
Switches of the table saw
The main switch (3
), No Volt Release (NVR)
switch, is on the front of saw base. Press “ I
”
to turn on the power; press “O” to turn off the
power
(See fi g. 18)
.
Warning:
Never connect the plug to the
power source outlet until all installations
and adjustments are completed and you
have read and understood the safety and
operational instructions.
2.
Raising And Lowering The Saw Blade
Warning:
Never operate while saw
blade rotating.
1)
To raise the saw blade, rotate the
handwheel
(1) anticlockwise.
2)
To lower the saw blade, rotate the
handwheel
(1) clockwise.
Note:
The saw blade height is recommended
about 3.2 mm above the top of the workpiece.
3.
Tilting the saw blade
Warning:
Always lock the saw blade tilt
lock handle during operations.
Loosen the saw blade tilt lock handle (2),
move the hand wheel until the saw blade is at
the desired angle and tighten the saw blade tilt
lock handle
(See fi g. 18).
4.
Moving the rip fence
Note:
●
The rip fence can be used on either side of
the saw blade.
●
The pointer on the rip fence indicates the
distance between the saw blade and rip fence.
●
To move the rip fence, loosen the clamp
handle while pressing the fence bracket
against the table surface and set the desired
distance from the saw blade, retighten the
clamp handle.

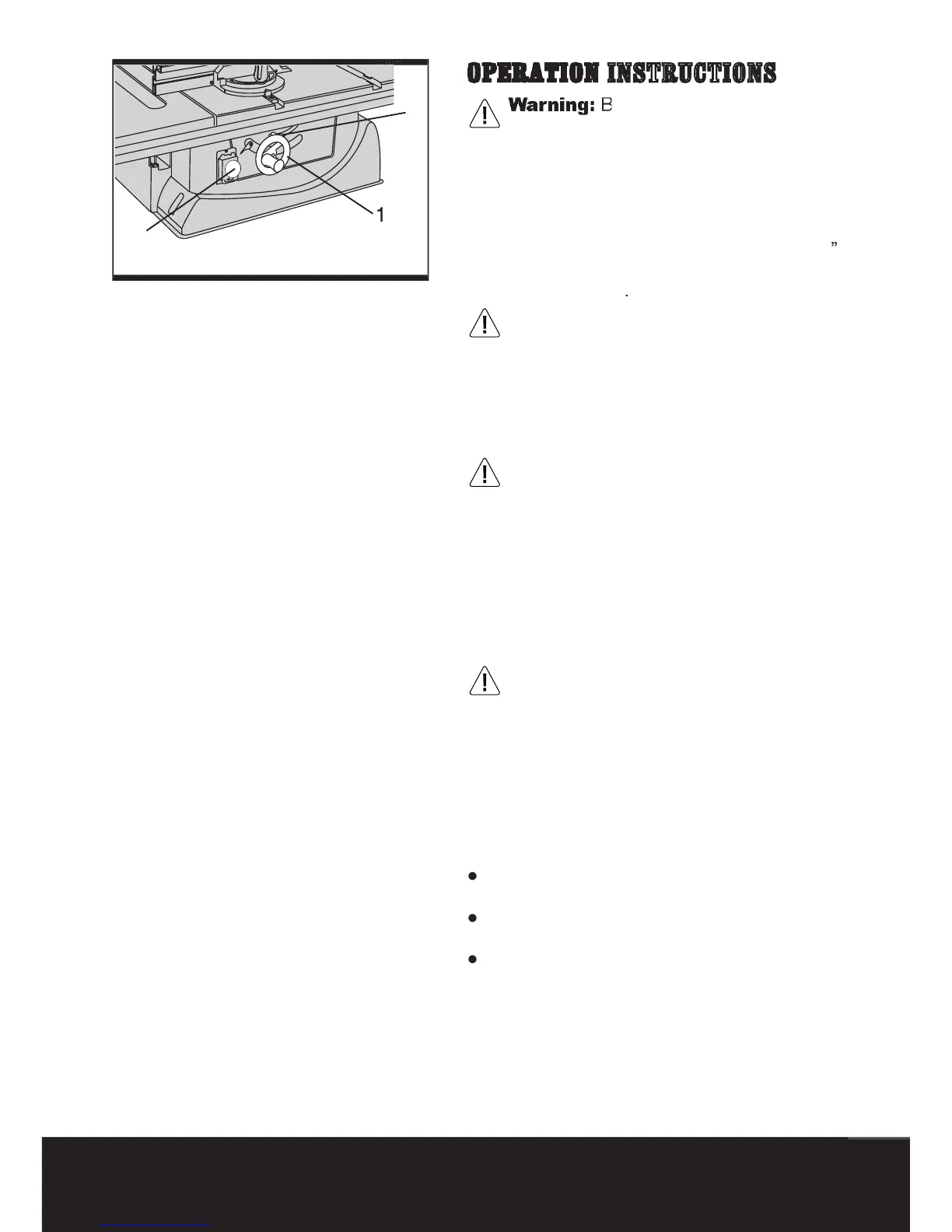

Fig
18
3
1
2
