5) If fence is loose when the handle is in the
locked (down) position, follow these steps:
●
Lift the handle (2) and turn the adjusting nut
(5) clockwise until the rear clamp is snug. Do
not turn the adjusting screw more than 1/4 turn
at a time.
●
Over-tightening the adjusting screw could
bend the rear clamping lever, which may cause
the fence to come out of alignment
(See fi g. 16)
.
5. Adjusting the pointer of rip fence
1) The rip fence indicator (6) points to the
measurement scale. The scale shows the
distance from the side of the fence closest to
the blade.
2) Measure the actual distance with a ruler.If
there is a difference between the measurement
and the indicator, adjust the indicator (6).
3) Loosen the screw (7), and slide the indicator
to the correct measurement on the scale.
Tighten the screw, and
remeasure with the
ruler
(See fi g. 16)
.
6

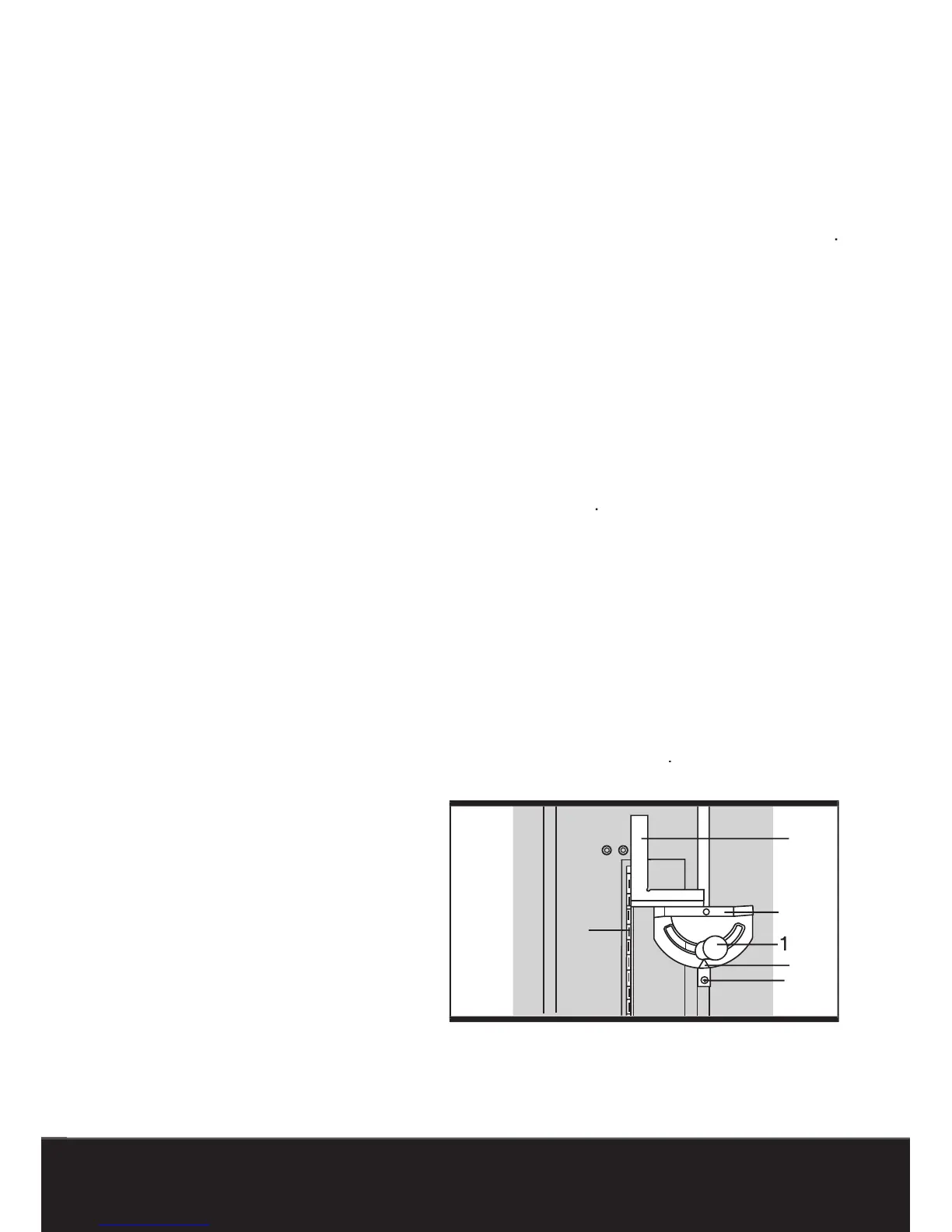

. Adjusting the mitre gauge
1) To adjust pointer 90° setting, loosen the
clamp handle (1) and place a square (2)
against both the saw blade (3) and mitre gauge
(4). The pointer (5) should indicate 90° on the
mitre gauge.
2) If the pointer does not point to 90° on the
mitre gauge, tighten the clamp handle, loosen
the pointer screw (6) on the bar, adjust the
pointer to the 90° position and retighten the
pointer screw
(See fi g. 17)
.
Fig
17
1
6
2
5
3
4
