Warning:
Never operate while saw
blade rotating.
7) When the width of rip 50 mm to 150 mm
wide, use the supplied push stick to feed the
workpiece.
8)
When perform bevel ripping, only work with
the
work
piece and rip fence on the right side
of the saw
blade.
7.
Crosscutting
Note:
●
Generally cross cutting is cutting across the
grain.
●
Do not perform cross cutting “free hand”
. Use the mitre gauge for cross cutting and
remove the rip fence from the table.
Warning:
●
Before cross cutting, confi rm the following
items:
a) Riving blade is properly aligned with the
saw blade.
b) The workpiece must have a straight edge
against the mitre gauge and must not be
warped, twisted or bowed.
●
Keep both hands away from the saw blade
and away from the path of the
saw blade.
1) Adjust the saw blade (1) height so it is
about 3.2 mm above the top of the workpiece.
2) Hold the workpiece fl at on the table and
against the mitre gauge. Keep the workpiece
about 25 mm away from the saw blade.
3) Turn on the switch and allow the saw blade
(1) to come up to full speed.
4) Keep the workpiece (2) against the table
and mitre gauge (3), slowly feed the workpiece
rearward all the way through the saw blade.
Continuously push the workpiece until it is
clear of the blade guard and it falls off the rear
of the table.

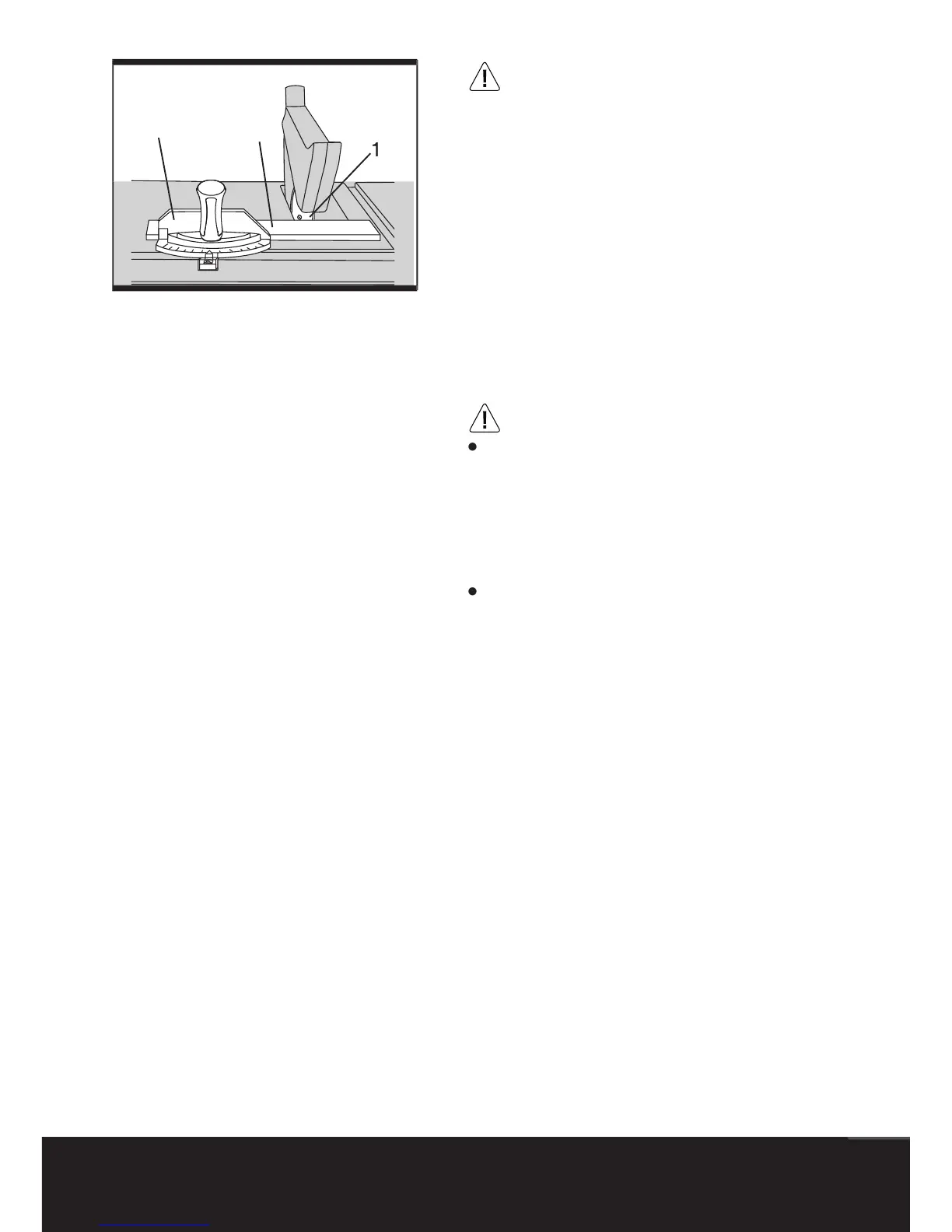

5) When performing bevel cross cutting,
only
work with the workpiece and mitre gauge on
the right side of
the saw blade
(See fi g. 20)
.
3
3
2
1
Fig
20
