2. Functions

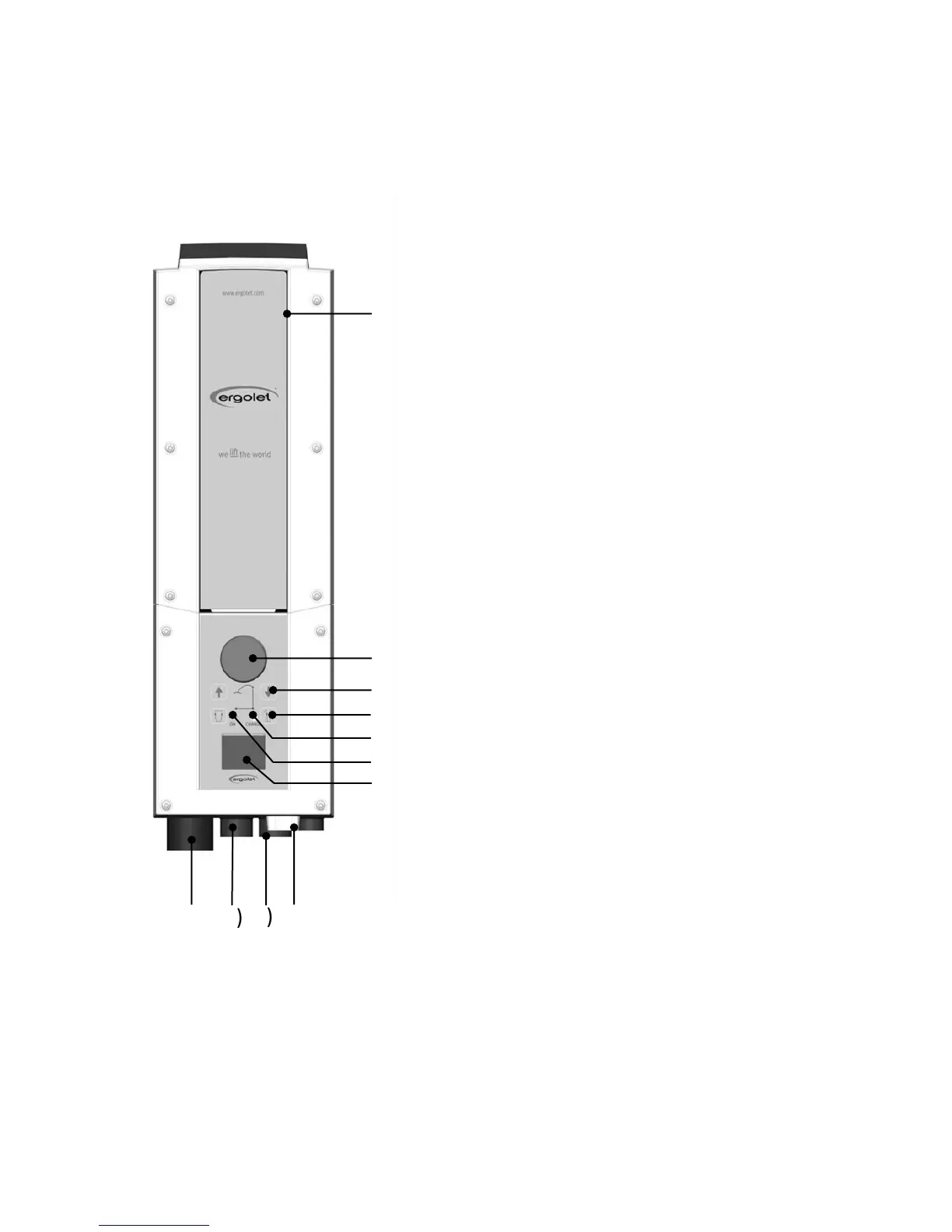

2.1 Pictograms and functions – control-box
(1) Connecting plug - hand control
(2) Connecting plug - lifting actuator
(3) Connecting plug - electrical leg spreading
(4) Connecting plug - power supply
(5) Battery
(6) Emergency stop – See section 2.3
(7) Lift up/down – Press  and the lifting arm
is lifted up. Press  and the lifting arm is
lowered. Stop movement by releasing the
button.
(8) Leg spreading in/out – Press   and the
leg spreading move together. Press  and the
leg spreading will spread. Stop movement by
releasing the button.
(9) Charge – indicates charging on the battery
(see section 2.4).
(10) ON – indicates that main supply is on.
(11) Display – (See section 3.3)
(5)
(6)
(7)
(8)
(9)
(10)
(1)
(2)
(3)
(4)
(11)
