ergolet Stellar/160 - Unpacking; Assembling Instruction

6
1.5 Unpacking
Check that all the parts are present and undamaged. Any suspicion of damage or shortage
should be reported to your dealer or Ergolet. We recommend that the box packaging is kept if
the stand-aid lifter is to be used on other sites or for return shipment in case of repair or annual
check.

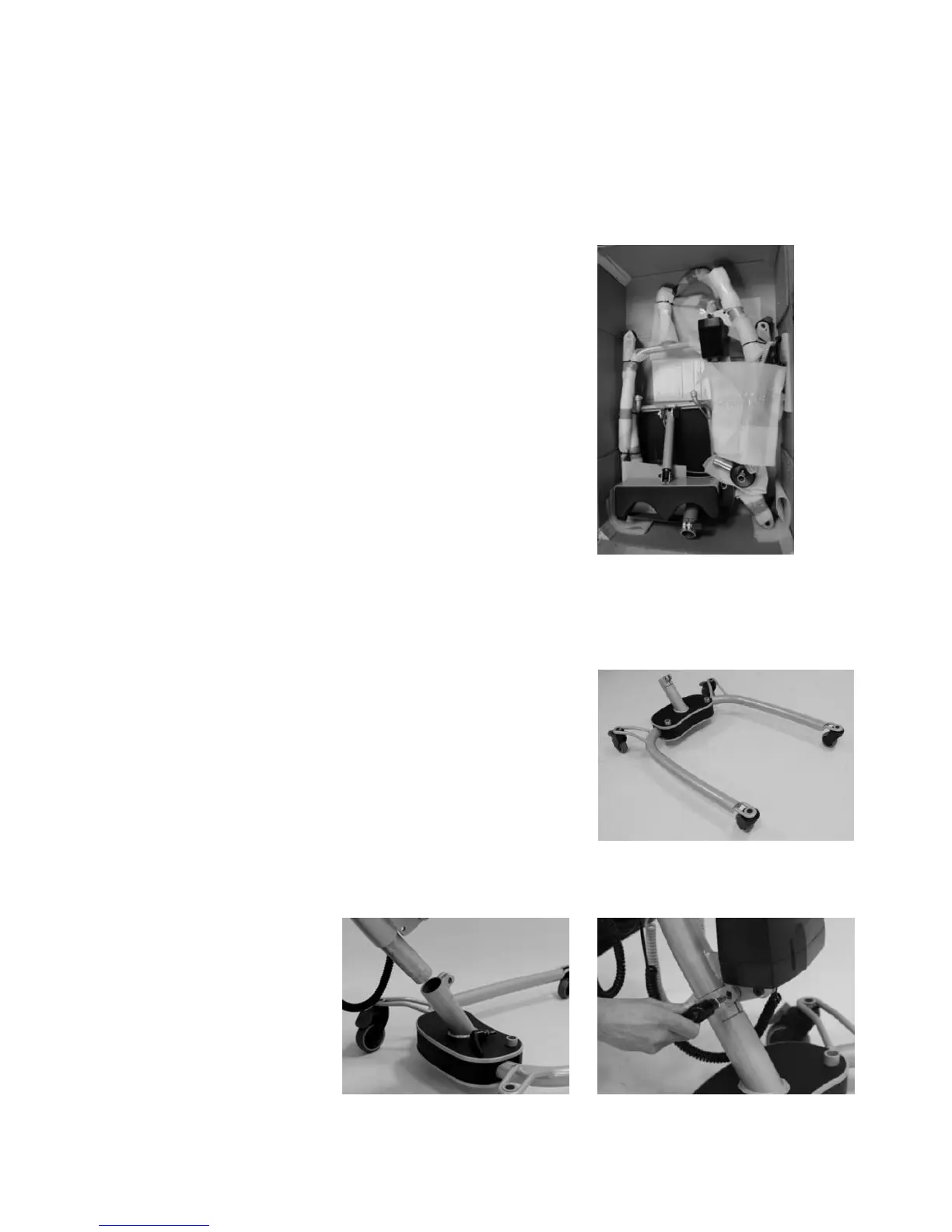

Content of the box:
1. Leg with base for leg spreading
2. Mast and lifting arm
3. Actuator
4. Hand control with battery
5. Control box
6. Handles
7. Knee support
8. Tools (Allen key, spanner)
9. User instruction
1.6 Assembling instruction
Following step by step the assembly guidance:
1. Place the leg part on the floor and brake the
wheels. Fig. 1.6A
2. Assembly the mast/lifting arm with the leg part
and tighten the hand screw. (Fig 1.6B + 1.6C)
Fig. 1.6C
Fig. 1.6B
Fig. 1.6A
