Technical data
46

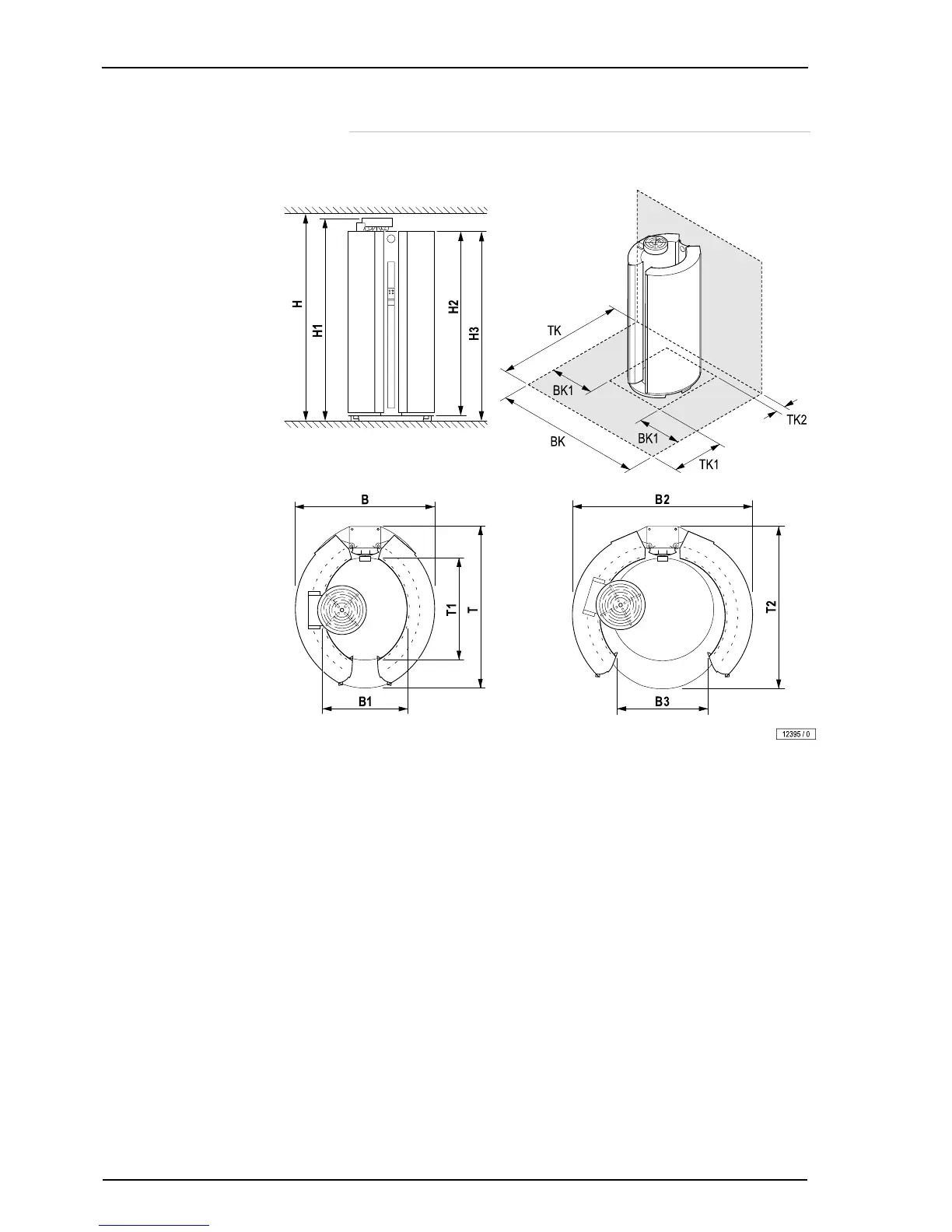

6.2 Dimensions
ESSENCE 280
B = 960 mm BK = 2,100 mm
B1 = 590 mm BK1 = 438 mm
B2 = 1,225 mm TK = 2,400 mm
B3 = 620 mm TK1 = 1,000 mm
T = 1,100 mm TK2 = 300 mm
T1 = 700 mm
T2 = 1,100 mm
H = 2,320 mm
H1 = 2,270 mm
H2 = 2,050 mm
H3 = 2,130 mm
