ergoline Vertical series - INSTALLATION SITE REQUIREMENTS; Environmental and Spatial Needs

Ergoline Vertical
User manual
Seite 5 von 29

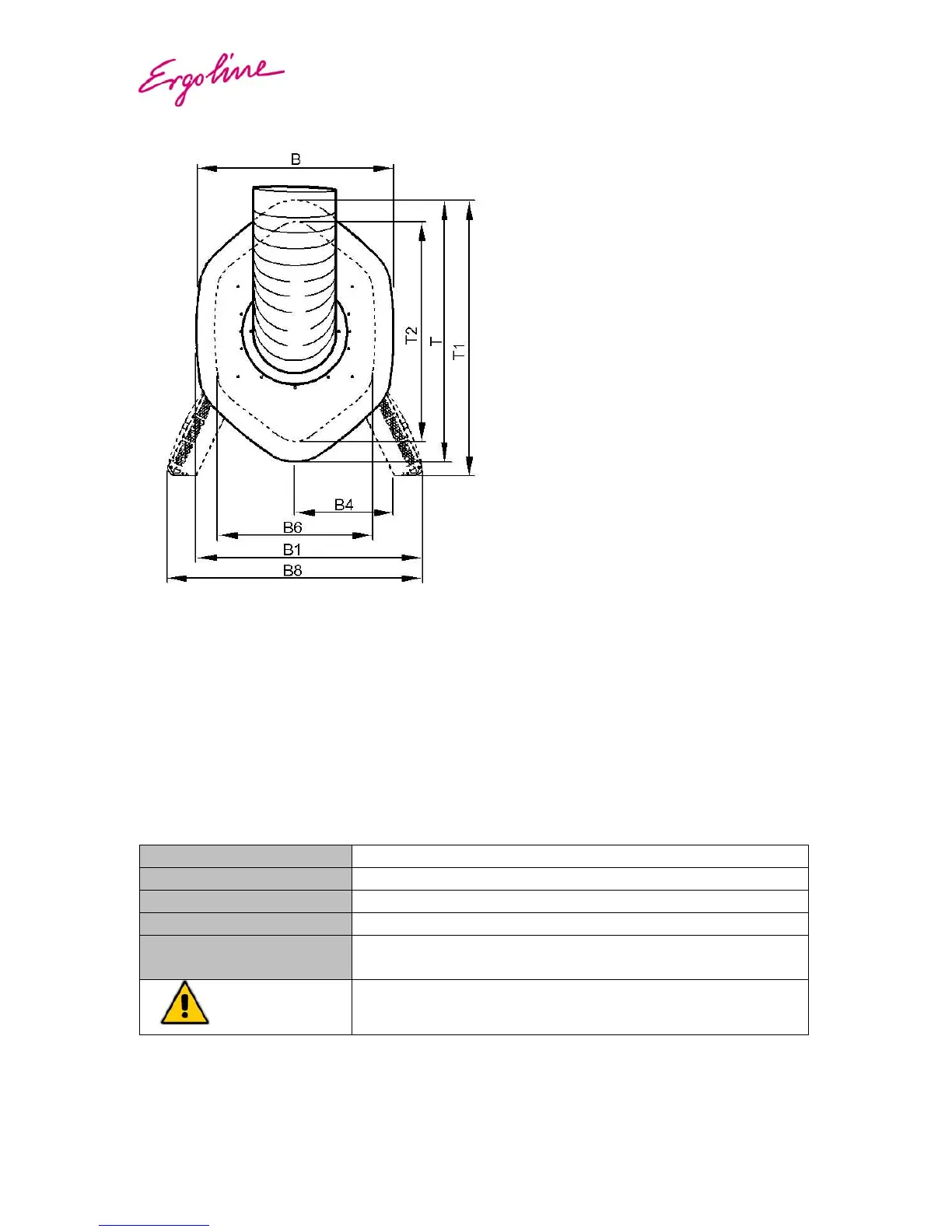

B = 930mm
B1 = 1270mm
B4 = 440mm
B6 = 600mm
B8 = 1600mm
T = 1230mm
T1 = 1380mm
T2 = 920mm
Installation site
In dry rooms with sufficient air supply (more than 2000 m
3
/h)
Relative air humidity
≤70 %
Ambient temperature
≤30°C (86 °F)
Exhaust air hose gauge
500mm
Distance between top and
ceiling
300mm
ATTENTION!
The unit must not be operated in case of faulty of control panel or
some broken parts
Electrical connection
