3 of 12
1/4” or 17/64”
(6.5 mm)
1
2
34
888-24-273-G-00 rev D • 12/14
ENGLISH

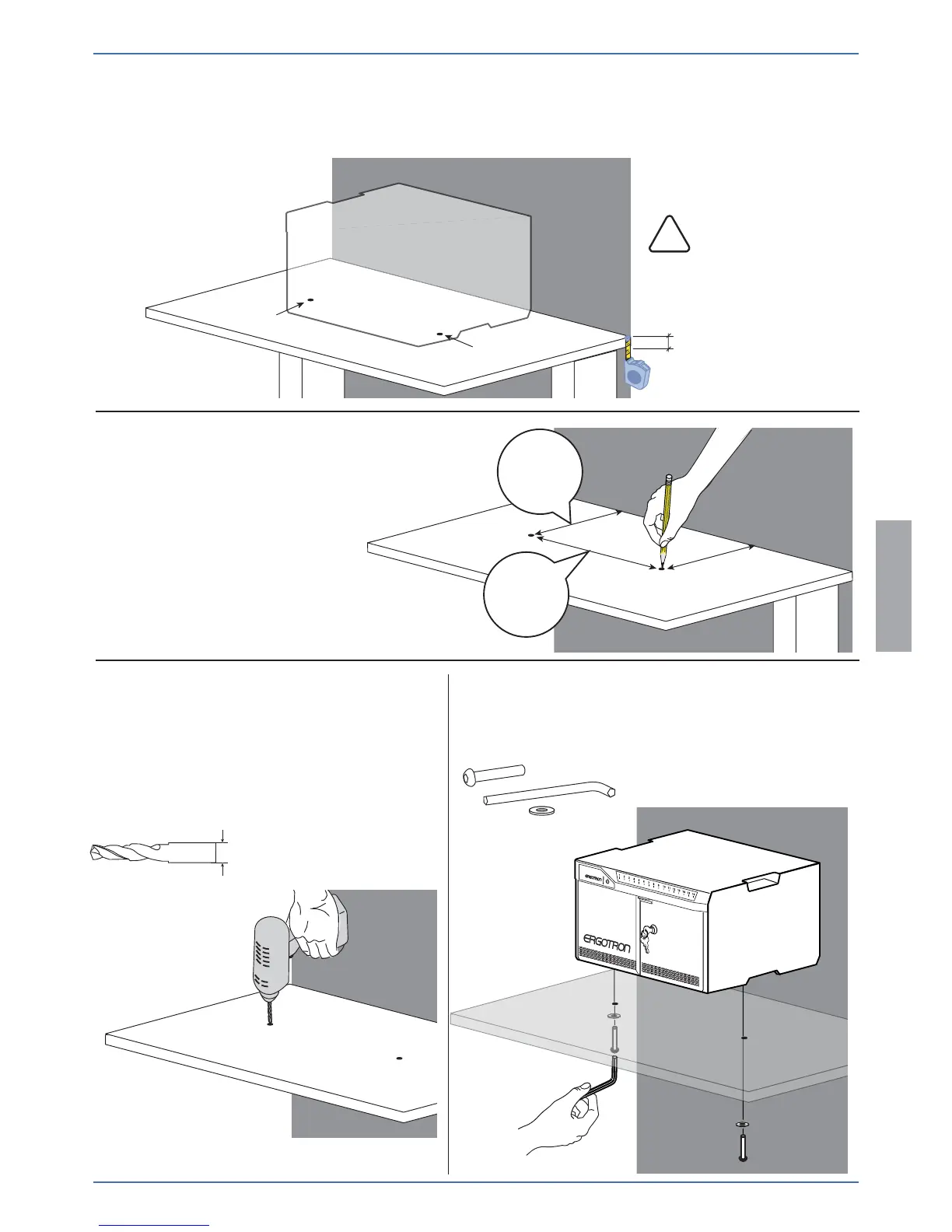

Place Desktop 16 on
surface in desired
location.
Remove the Desktop 16.
Use a pencil to mark the
mounting hole locations:
11.5 “ (292 mm) from the wall
and 17.3” (440 mm) apart.
Drill two mounting holes
using a 0.266 OD drill bit.
Use the security wrench to insert
provided M6 screws and washers.
Security Mounting Kit Option
For mounting the Desktop 16 to a work surface (desktop, countertop, table, etc.)
CAUTION: mounting
surface cannot
exceed 1” (25.4 mm
thick).
≤ 1” (25.4mm)
Mounting
Hole
Mounting
Hole
Wall
Wall
Mounting
Hole
Mounting
Hole
17.32”
440 mm
11.5”
292 mm
