Erickson 07705 - Page 4

Item no: 07705

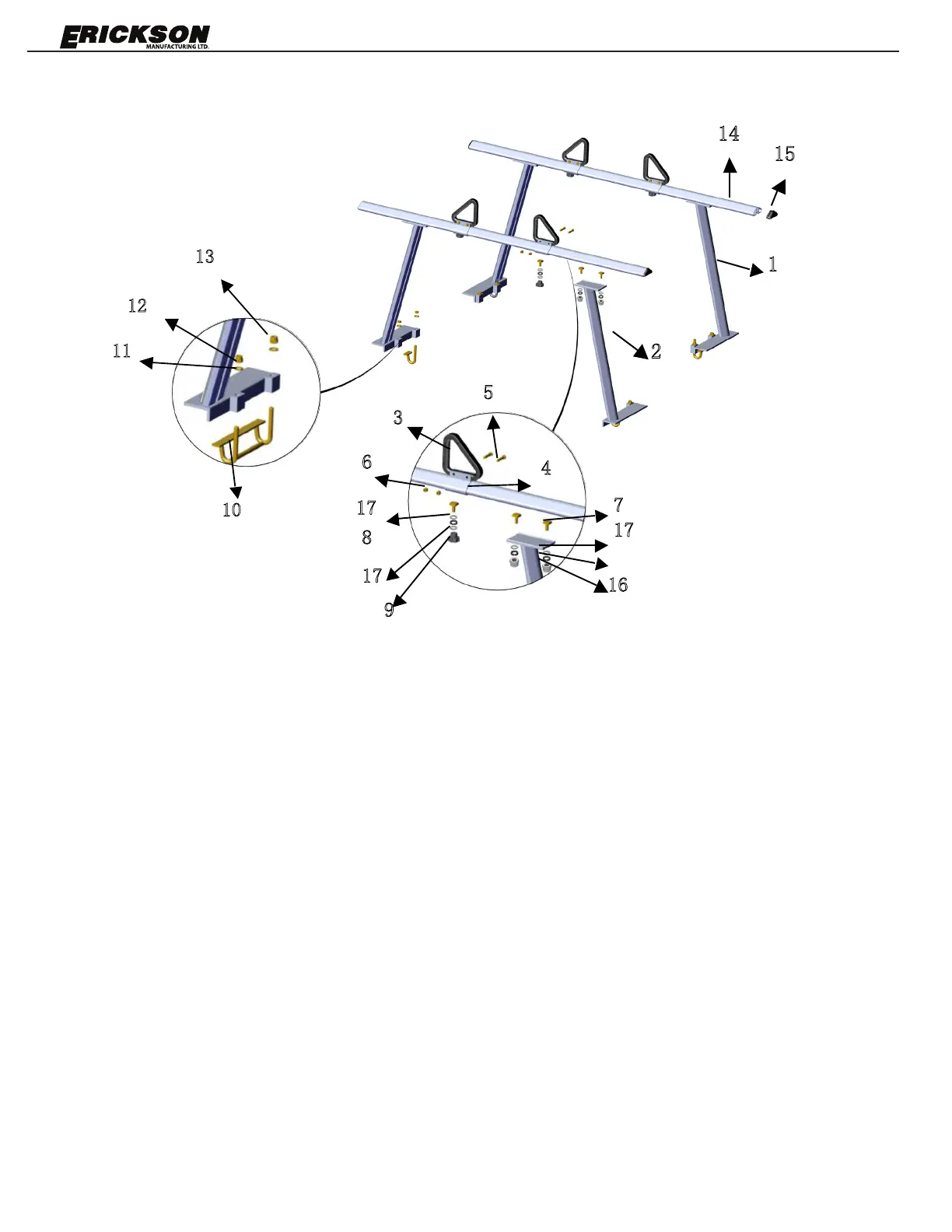

Item# Description Q’ty Item# Description Q’ty
1 Post A 2 9 Adjustment knob 4
2 Post B 2 10 Clamp 8
3 Triangular stop 4 11 12 washer 8
4 Mounting sleeve 4 12 12 spring washer 8
5 M8*40 Bolt 8 13 M12 nut 8
6 M8 Lock nut 8 14 Cross Bar 2
7 M10*25 bolt 12 15 Plastic end cover 4
8 10 spring washer 12 16 M10 Locking Nut 8
17 10 Washer 16

9
7
6
5
4
3
16
17
17
8
1
7

10
1
1
1
2
13

1
2
14
1
5
