A1018s/A1018sc Standard Electrical Repair
4/00021-2/FEA 209 544/16.B 30 (42)
Fig. 8.2

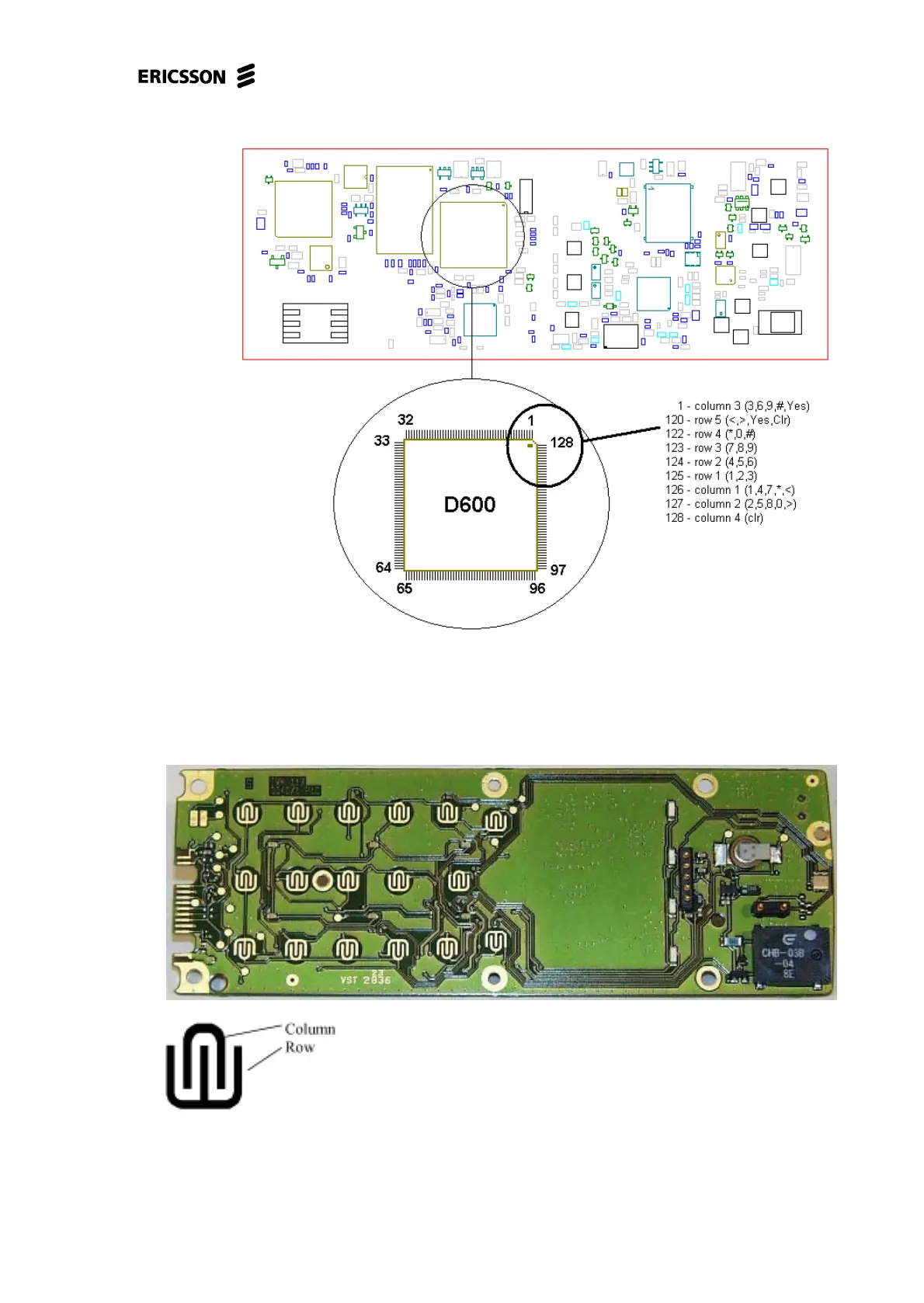

If the soldering is correct, measure the resistance from one of the faulty pads (row/
column see Fig. 8.3) to the corresponding pin of D600 (Fig. 8.2). Should be ~0
Ohm, otherwise is there a foil damage.
