GH688,GA628, Standard Electrical Repairs
4/00021-2/FEA 209 544/1.G 63 (112)
10 RTC
10.1 Find fault.
Insert a SIM card and a fully charged battery into the phone and start it up.
Set the correct time.
Remove the battery and reinsert it after a minute.
• If the time says 00:00 proceed to section 10.2.
Compare to the correct time.
• If the clock is speeding or is halted proceed to section 10.3

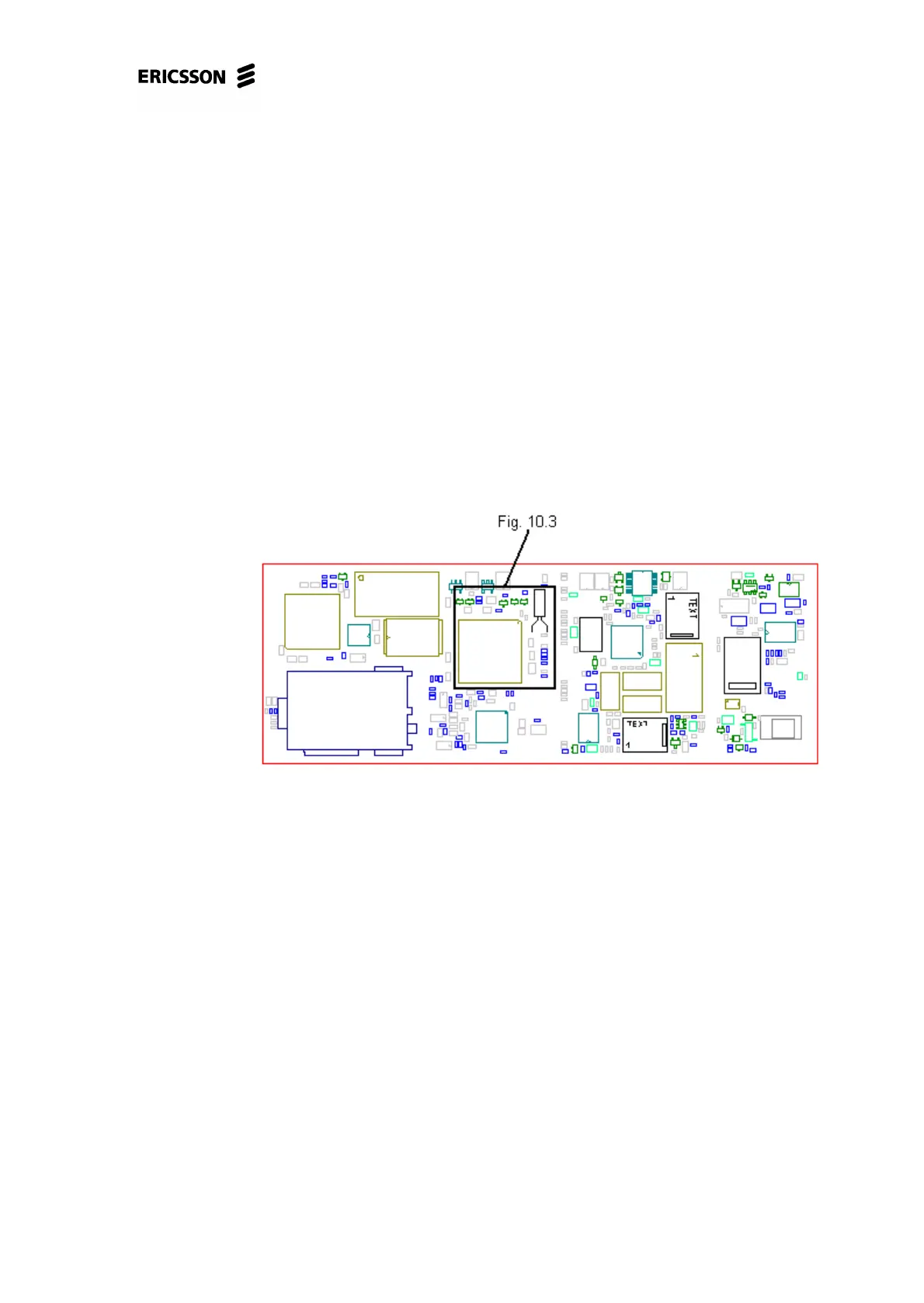

The component side of the circuit board is shown in fig. 10.1.
Fig. 10.1
10.2 The time says 00:00 after removed and
reinserted battery.
Open the phone and check if the backup capacitor C720 (class A, fig. 1.2) is cor-
rectly soldered.
