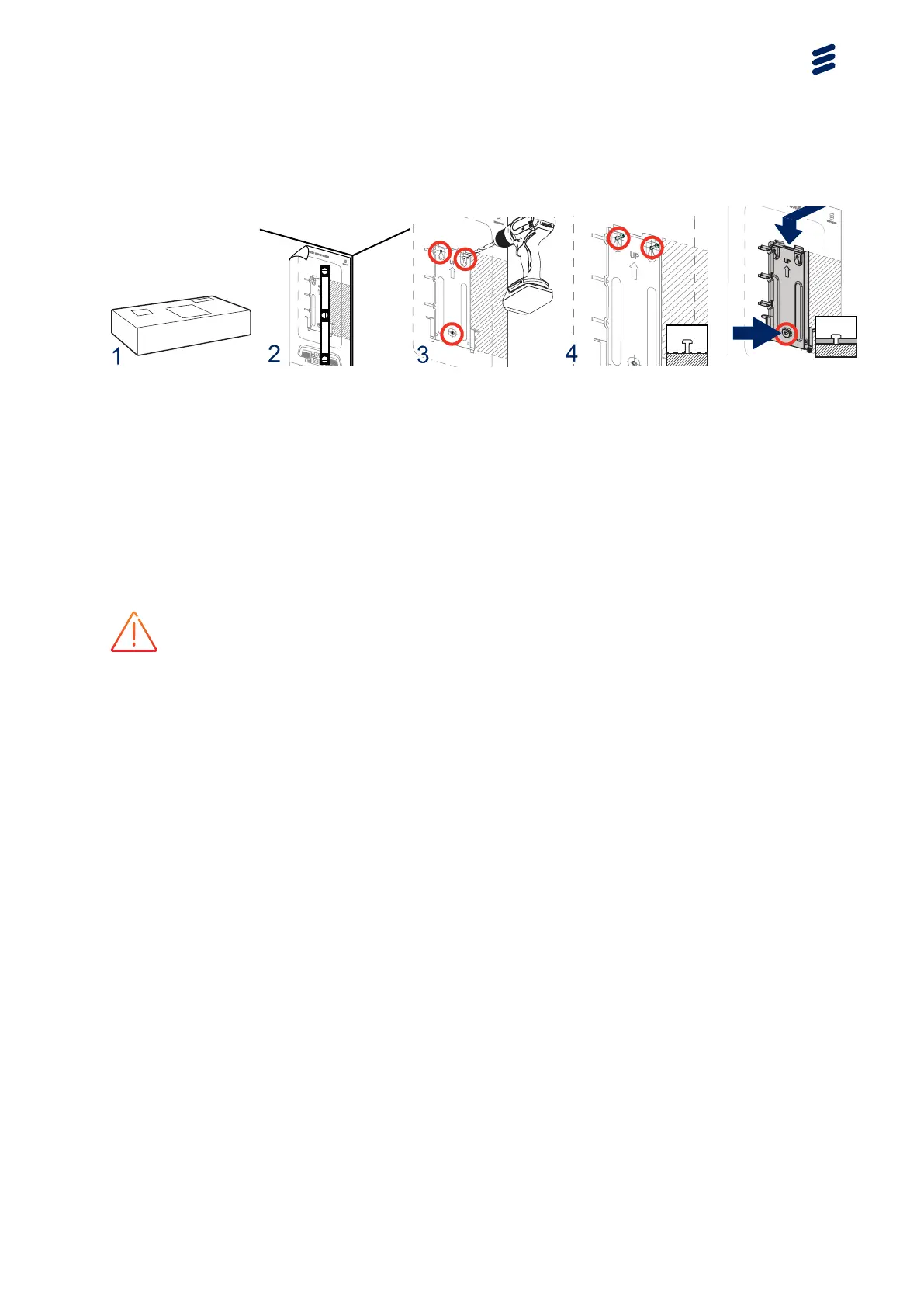

1. Protect the RBS and cables from dust by keeping them in the box when drilling.
2. Put the drilling template on the wall and ensure that it is straight by using a spirit level. Make
sure that the entire drilling template fits on the wall without it folding around any corners.
3. Drill the three holes marked on the drilling template.
4. Attach the two upper screws in positions to hang the mounting bracket.
5. Attach and fasten the mounting bracket to the wall using a screwdriver.
The RBS can be installed horizontally on ceilings, see Appendix A for more information.
The RBS can be installed with the external antenna adapter, see Appendix C for
more information.
