Installing RBS

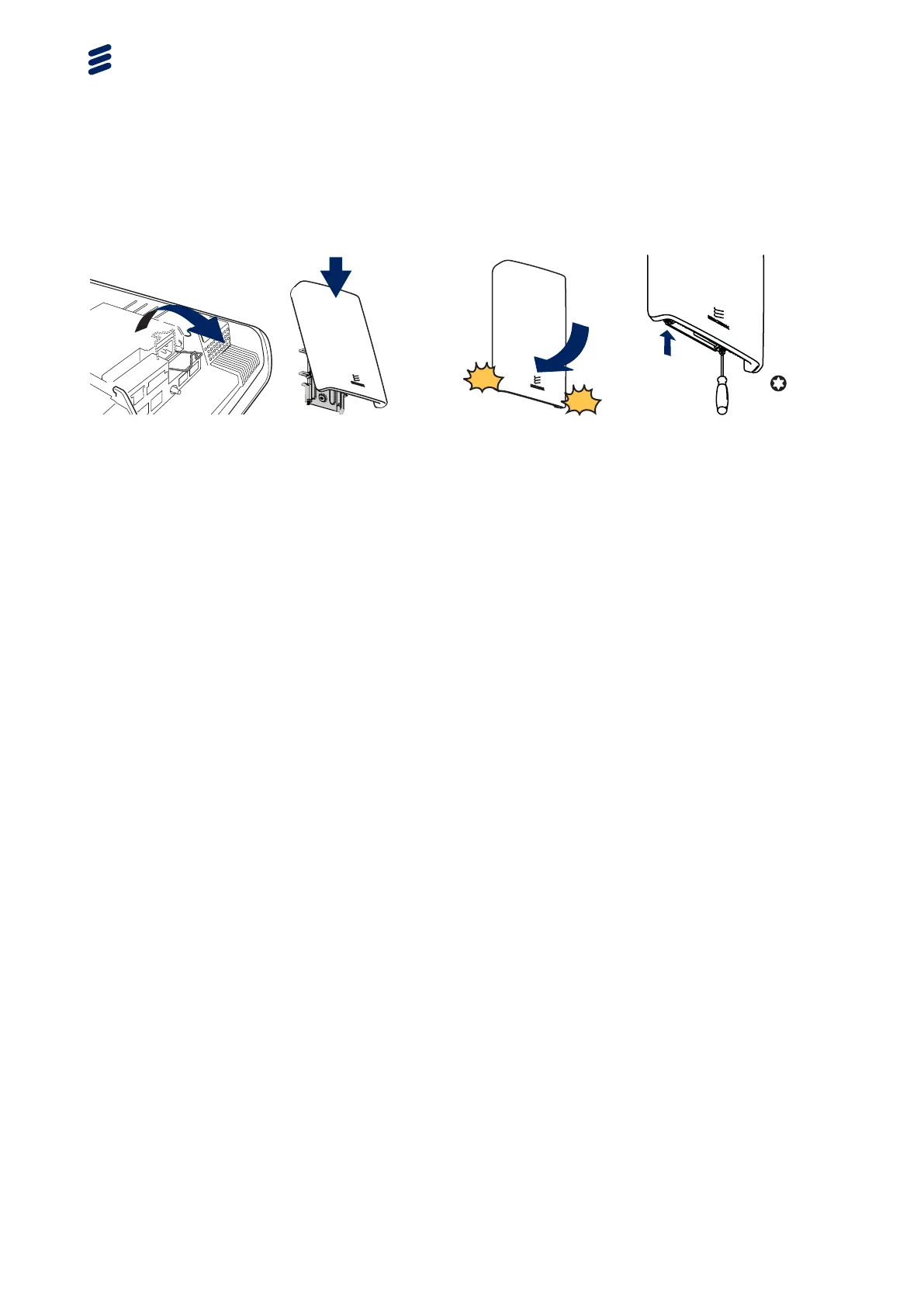

5 Attach RBS to Bracket
1
2
clic
k
click
3
TX20
4
1. Close the cable strain relief
2. Hang the RBS loosely on the mounting bracket hooks.
3. Attach the RBS to the bracket by gently pushing the bottom of the RBS toward the bracket
until it locks.
4. Fasten the RBS to the mounting bracket, by tightening the screws to 2.0 Nm.
6
25/1531-LZA 701 6001 Uen H | 2013-11-14
