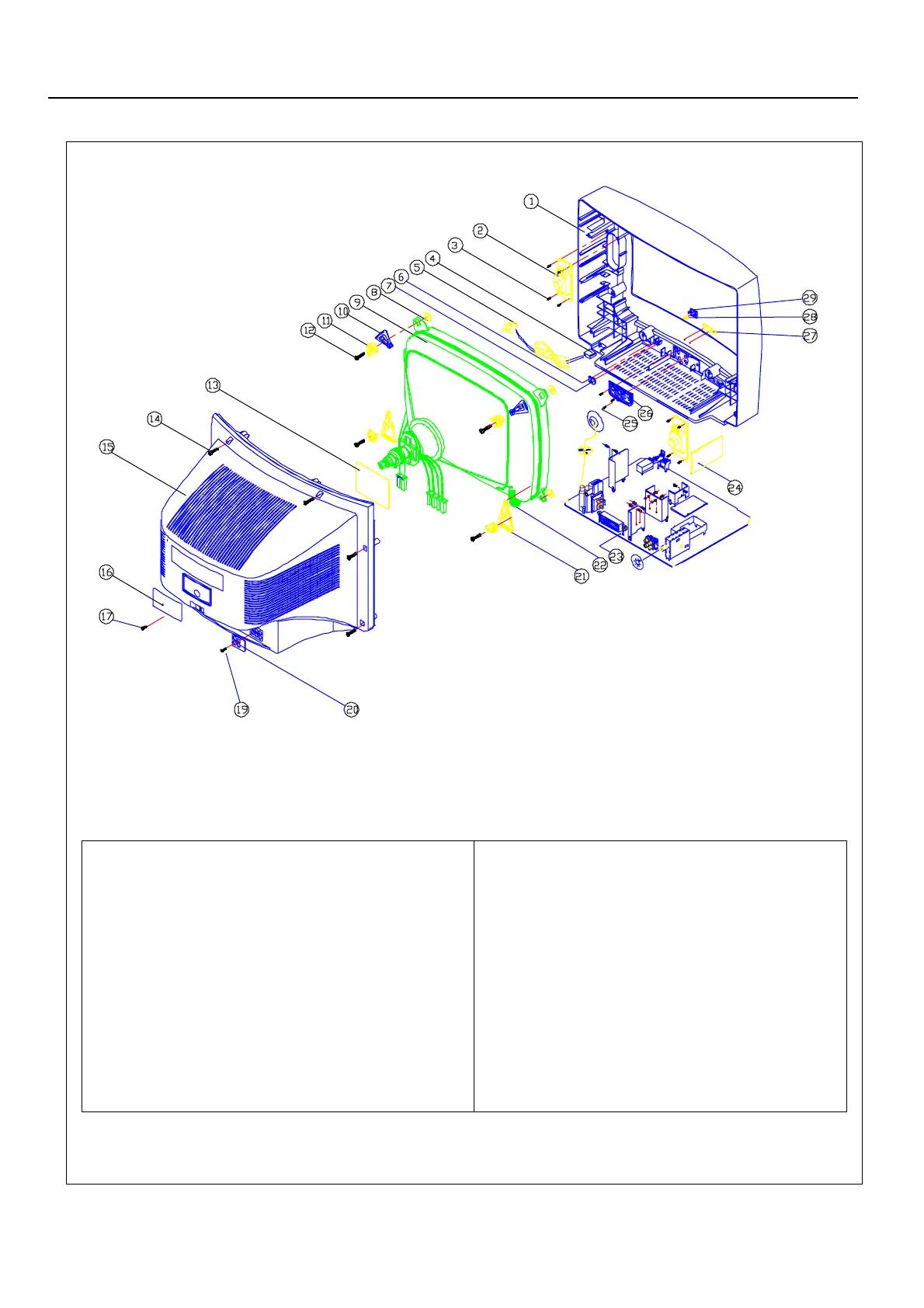

XII. Exploded View Diagram and parts list
A. Unit set (for 21W3)
Parts List for Exploded View Diagram
Item Part NO. Description QTY.
1 200- CAB. Front BLK. 1
2 E4801- Speaker 2
3 614- S-Tap Screw B/T 4X10 8
4 254- Power Cord Clip Black HI-PS 1
5 AC Power Line 1
6 263- Power Lens 1
7 263- Sensor Lens 1
8 334- Rubber Ring (T=2.00MM) 4
9 102- CRT 1
10 259- Degaussing Coil Clip 2
11 229- CRT MTG Clip White Nylon 4
12 614- S-Tap Screw B/T 5X30MM White 4
13 090- CRT PCB 1
14 614- S-Tap Screw B/T 5X25MM Black 6
15 202 Black Cabinet Black HI-PS 1
Item Part NO. Description QTY.
16 412- Model Plate 1
17 614- S-Tap Screw B/T 4X12MM 1
19 611- Screw 1
20 389- AV PVC Sheet 1
21 259- Degaussing Coil Clip Nylon 2
22 477- CRT Spring 1
23 E3701- Main PCB 1
24 E3701- Power PCB 1
25 612- S-Tap Screw W/T 3X10MM 3
26 277- Function Key Black ABS 1
27 411- N/P Aluminum 1
28 477- Compression Spring 1
29 292- Power Knob Black ABS 1
