21

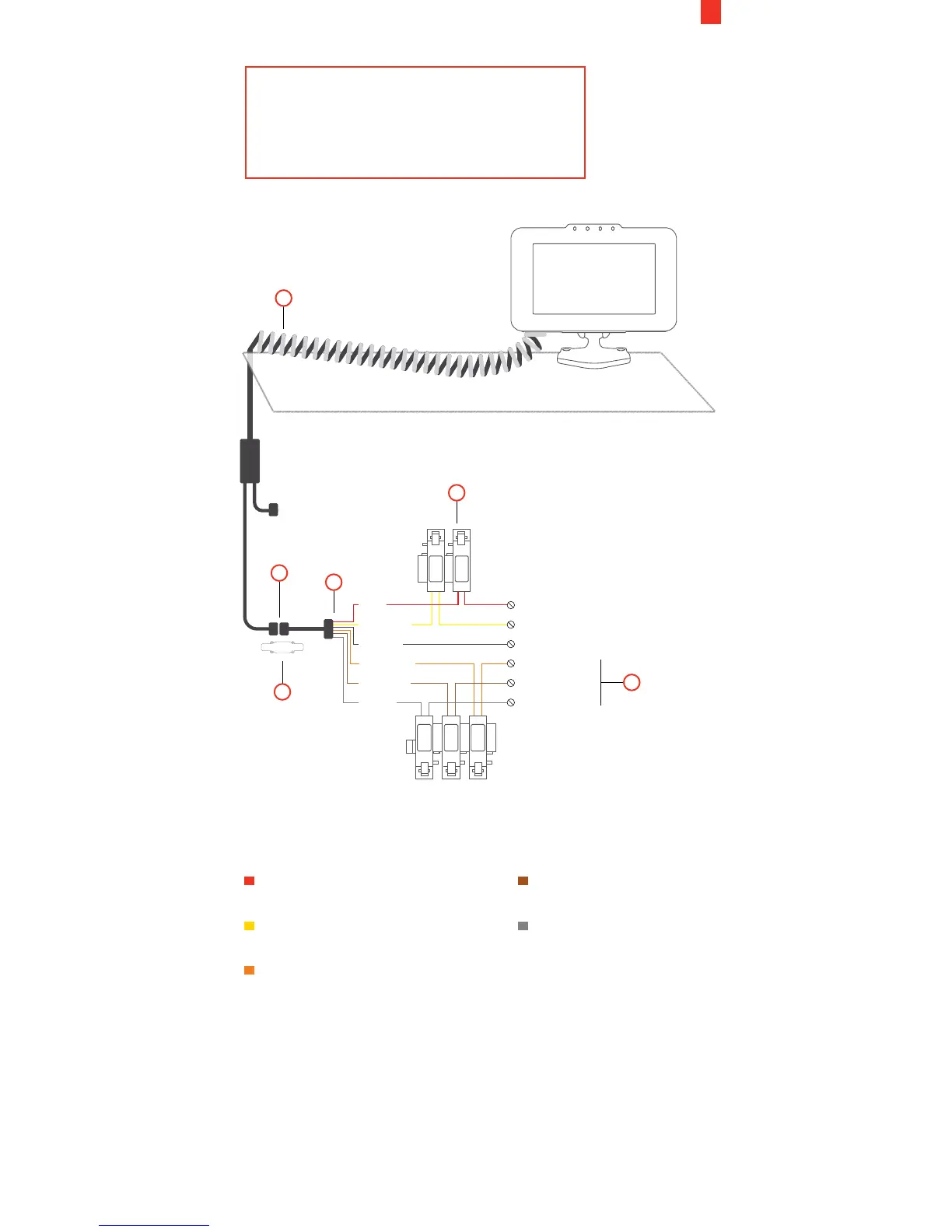

RED – Permanent Power
(Fuse supplied)
YELLOW – Switched
Power (Fuse supplied)
ORANGE - Digital Input 1
(3A Fuse)
BROWN - Digital Input 2
(3A Fuse)
GRAY - Digital Input 3
(3A Fuse)
YELLOW
Switched Power (Engine on/o)
Permanent Power (12V or 24V)
Ground
Digital input 2
Digital input 3
BLACK
ORANGE
BROWN
GRAY
RED
Digital input 1
IGN
+ve
3A
3A
3A
EROAD
EROAD
(Fuse note) You must fuse the following wires when connected for
short-circuit protection:
The Ehubo shuts down to a lower power mode and draws a very
small current from the vehicle supply when the vehicle is o.
Remove the Ehubo permanent power fuse if the vehicle is in
storage or parked up for more than a month to avoid discharging
the vehicle battery.
Q
N
E
J
D
R
The Ehubo needs a permanent power
source and a good view of the sky to
operate optimally.
The curly cable must remain above the dash.
