EROAD Ehubo - Page 30

28
YELLOW
Switched Power (Engine on/o)
Permanent Power (12V or 24V)
Ground
Digital input 2
Digital input 3
BLACK
ORANGE
BROWN
GRAY
RED
Digital input 1
IGN +ve
3A
3A 3A
EROAD
EROAD
Q
N
E
J
D
R
The Ehubo needs a
permanent power source
and a good view of the
sky to operate optimally.
The curly cable must
remain above the dash.
Insert the EROAD OBD-II wireless adapter
into the OBD-II port of the vehicle
NOTE: Electronic logs are activated in Depot after installation.
Contact your Customer Success Account Manager for more
information, if needed.

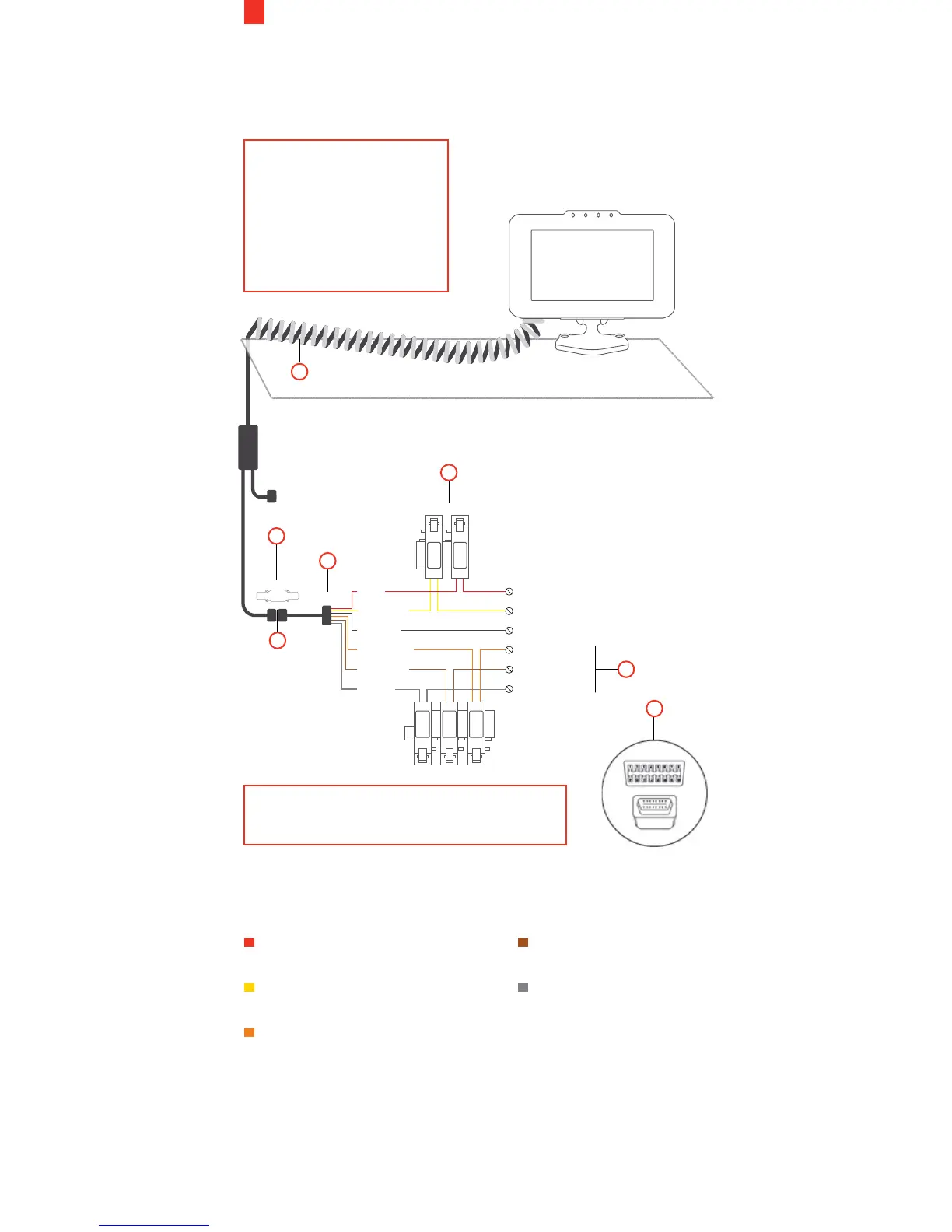

RED – Permanent Power
(Fuse supplied)
YELLOW – Switched
Power (Fuse supplied)
ORANGE - Digital Input 1
(3A Fuse)
BROWN - Digital Input 2
(3A Fuse)
GRAY - Digital Input 3
(3A Fuse)
(Fuse note) You must fuse the following wires when connected for
short-circuit protection:
The Ehubo shuts down to a lower power mode and draws a very
small current from the vehicle supply when the vehicle is o.
Remove the Ehubo permanent power fuse if the vehicle is in
storage or parked up for more than a month to avoid discharging
the vehicle battery.
