SECTION 4 Operation
ESP-600C Plasma Power Source
ESP-600C Plasma Power SourceESP-600C Plasma Power Source
ESP-600C Plasma Power Source
4-5
WARNING
!

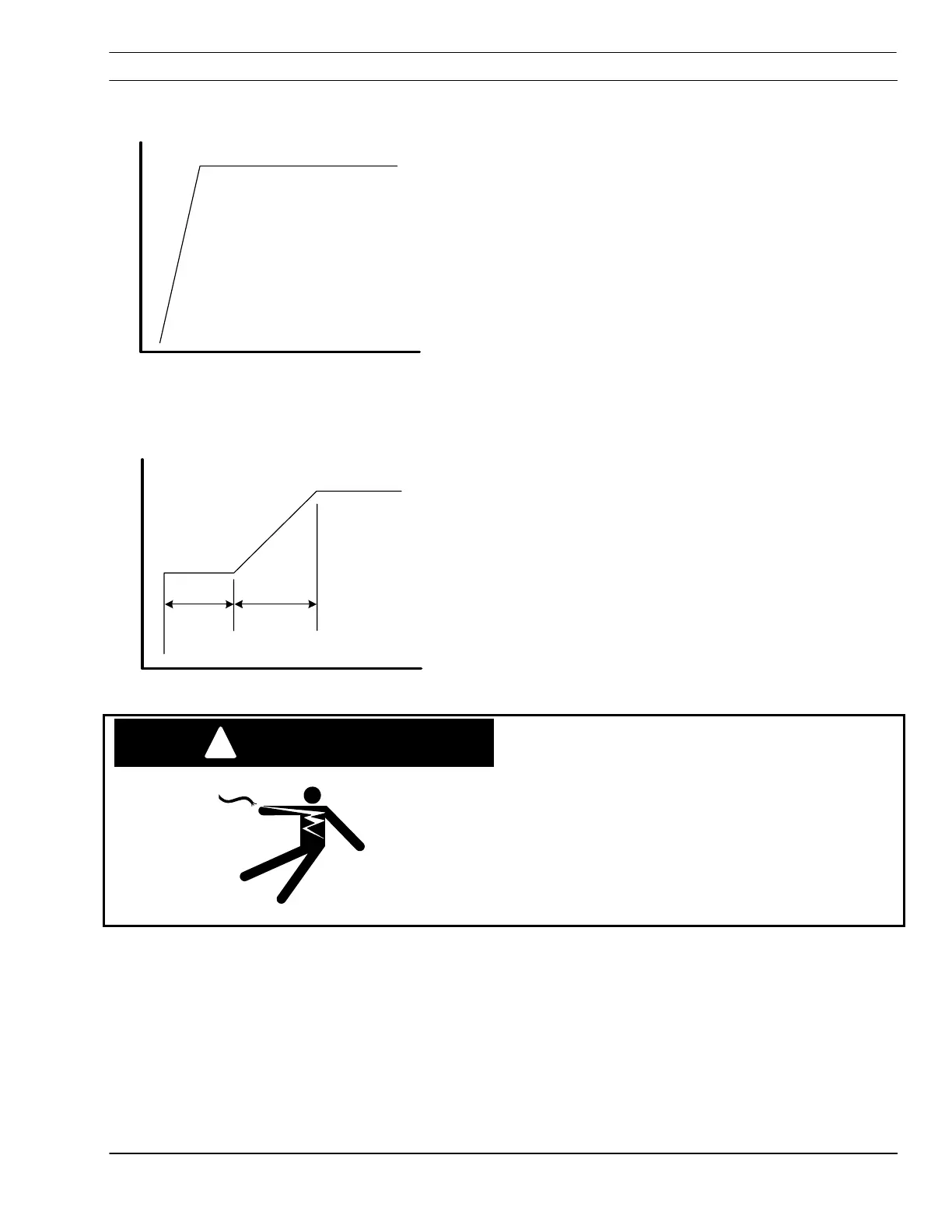

DC Output Current
Time
Cut Current
approx. 2 msec time to
full current
Start Current Waveform With Arc
Initiation Timer OFF
DC Output Current
Time
Cut Current
Start Current Waveform With Arc
Initiation Timer ON
Start Current
Dwell
Time to
full current
800 msec
1
OUT
= 80 V
REF
1
OUT
= 80 V
REF
These timing functions can be disabled or adjusted
to suit individual system requirements.
Electric Shock Can Kill!
Shut off power at the line (wall) disconnect
before removing any covers or making any
adjustments to the power source.
