SECTION 4 Operation
ESP-600C Plasma Power Source
ESP-600C Plasma Power SourceESP-600C Plasma Power Source
ESP-600C Plasma Power Source
4-7
4.4.3 Arc Initiation Controls
4.4.4 Start Current and Up-Slope Timer
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
0 1 2 3 4 5 6 7 8 9 10 MAX
Start Current Pot Setting
Percentage (%) of Cutting Current
Starting Curent (%) and Pot Setting
Relationship

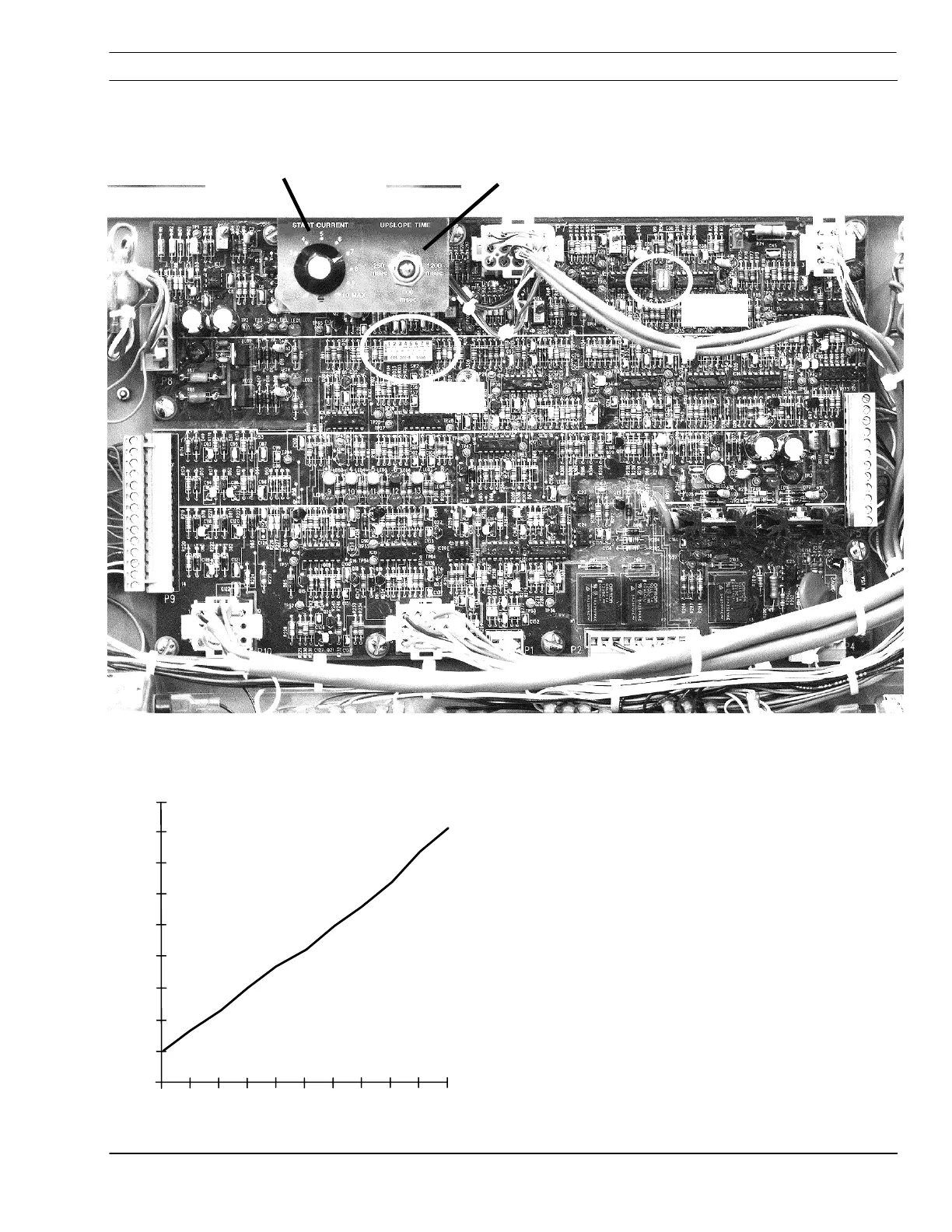

Start Current
Start CurrentStart Current
Start Current
Set using potentiometer located above and to the
left of center of PCB1. Factory default setting is 7.
Up-Slope Timer
Up-Slope TimerUp-Slope Timer
Up-Slope Timer
Three position switch located next to the start
current potentiometer. Time is from start current
(after dwell ends) to full current. Factory default =
800 msec.
Left position = 250 msec
Center position = 800 msec
Right Position = 1200 msec
SW2
SW1
Start Current Pot
UP-Slope Timer
