ESAB MEF 44N - INSTALLATION

16
15
19
MEF 44N

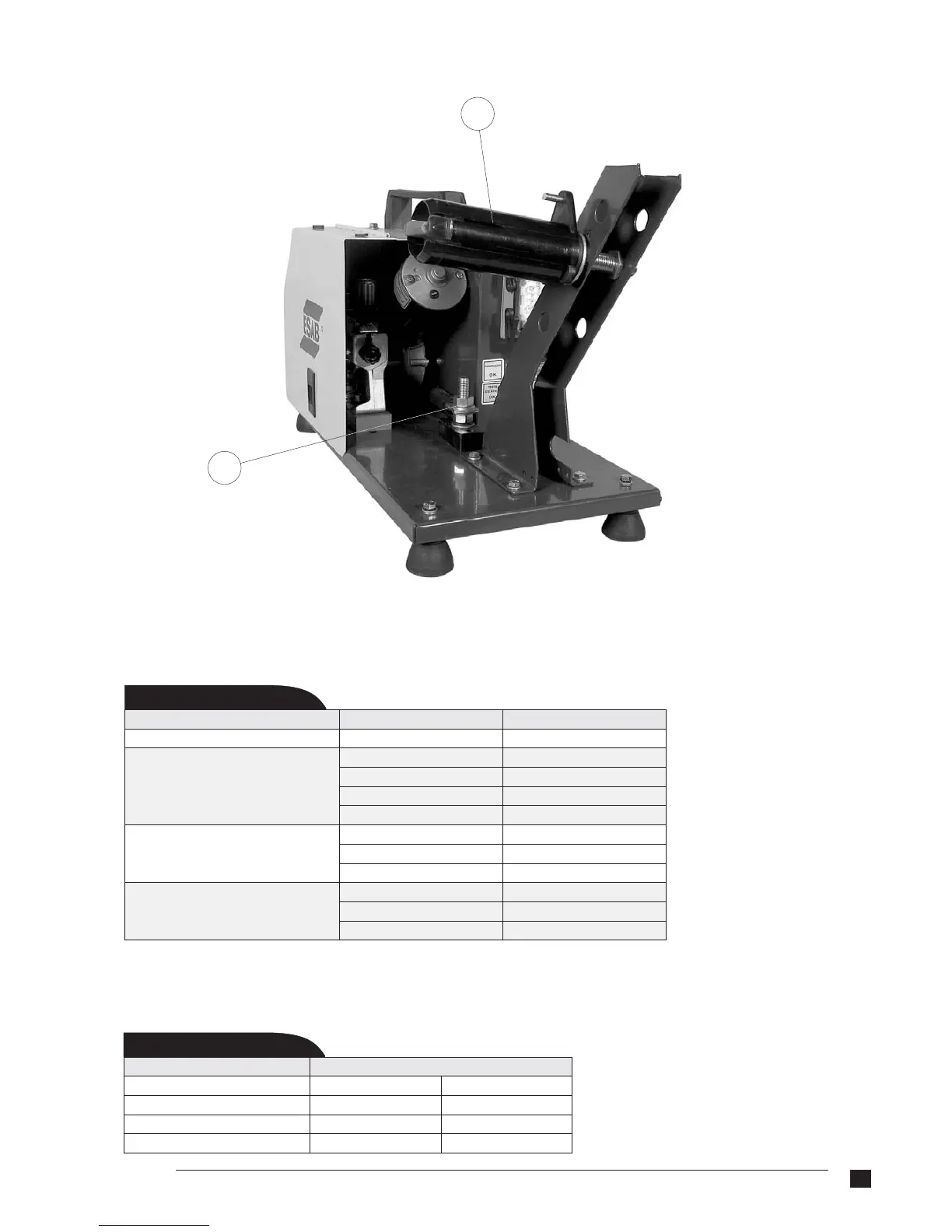

Install the inlet nozzle, the intermediate nozzle and the outlet nozzle according to the wire diameter to be
used.(seeTable5.2).
TABLE 5.1
Pressure feed roller
Steels
Aluminium alloys
Cored wire
0.60 - 0.80
0.80 - 1.00
1.00 - 1.20
1.20 - 1.60
1.00 - 1.20
1.20 - 1.60
2.40 - 3.20
1.20 - 1.60
1.60 - 2.40
2.80 - 3.20
Wire type Diameter (mm)
0900467
0900905
0900251
0901338
0900822
0900168
0901272
0900732
0900121
0901204
0902230
MEF 44N
TABELA 5.2
Tipo de arame
Wire diameter (mm)
Inlet nozzle
Intermediate nozzle
Nozzle Tube
0.60 - 1.60
0900988
0900368
0900261
1.60 - 3.20
0901094
0900896
0900618
MEF 44N
5) INSTALLATION
Install the feed rollers respectively to the wire diameter and type according to the table 5.1.
