ESAB Migmaster 280 Pro - Operation; Connection and Control Devices

-- 9 --
MMP280e
6 OPERATION
General safety regulations for the handling of the equipment can be found on
page 4. Read through before you start using the equipment!
WARNING!
Rotating parts can cause injury, take great care.
WARNING -- TIPPING RISK!
There is a risk of tipping while transportation and operation, if the welding machine leans
more than 10
o
. In that case appropriate securing has to be provided !

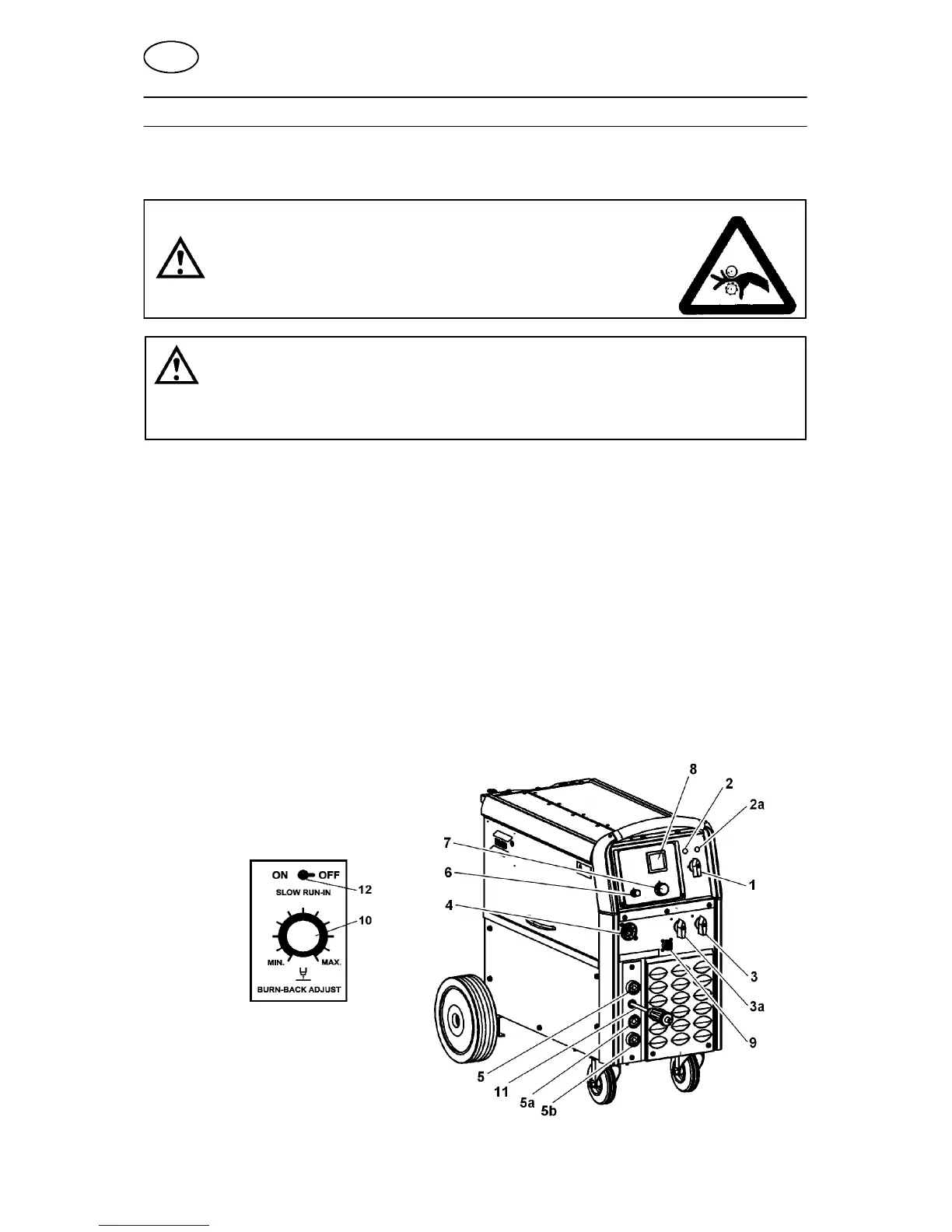

6.1 Connection and control devices
1 Mains supply switch 5b Connector [--], low inductance, for welding gun or
return cable (welding polarity change--over)
2 Orange indicating lamp, overheating 6 Knob for spot welding -- ON/OFF and time setting
2a White indicating lamp “ON” 7 Knob for wire speed setting
3 Welding voltage switch (fine) 8 Digital instrument -- V/A
3a Welding voltage switch (coarse) 9 Connector for ”spool--on gun” (control wire)
4 EURO -- connector for welding gun 10 Knob for burn--back time setting
(located in wire feeder compartment)
5 Connector [+] for “electrode” or return cable
(welding polarity change--over)
11 ”Electrode” cable with plug, connected to the weld-
ing gun connector (welding polarity change--over)
5a Connector [--], high inductance, for welding gun
or return cable (welding polarity change--over)
12 Creep start switch
(located in wire feeder compartment)
