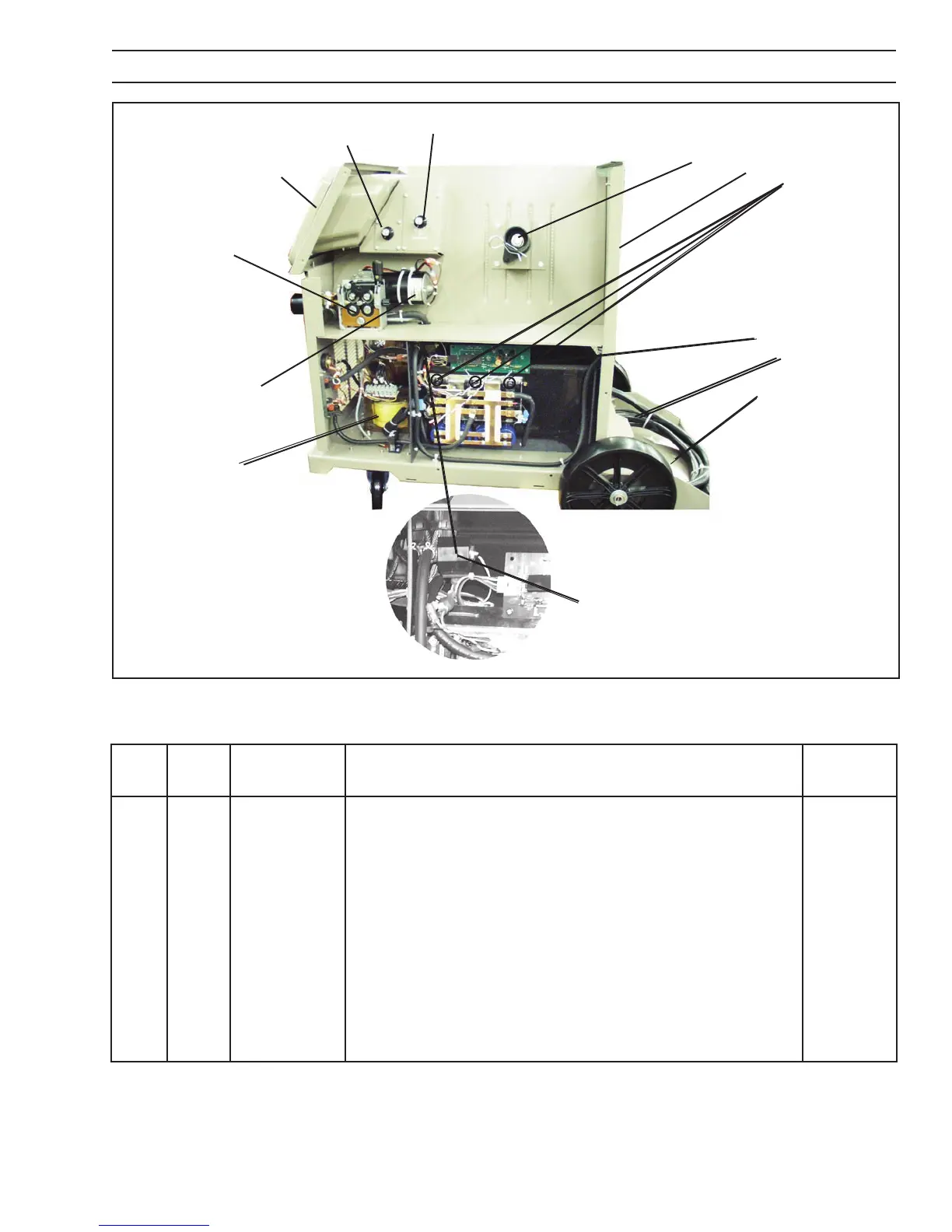

Figure 26 - Inside Right View of Multimaster 260
QTY. ITEM CIRCUIT
No. REQ. NO. DESCRIPTION SYMBOL
40 1 948258 SPINDLE MOLDED (SEE FIGURE 28)
41 1 0558001685G REAR COVER
42 3 0558001533 TRANSISTORS (FET) CHOPPER 240A 250V Q1-3
43 1 38186 PCB ASSY. DRIVER PCB3
44 1 0558001893 POWER CABLE 208/230V
1 0558002081 POWER CABLE 230/460/575V
45 1 0558001696G CYLINDER TRAY
46 1 951634 DOLENOID 24 SOL1
47 1 0558001846 INDUCTOR L1
48 1 951530 DRIVE MOTOR M2
49 1 0558001339 COMPACT 4 ROLL WDS
50 1 38184 PCB DISPLAY ASSY. PCB2
51 1 -- INDUCTANCE CONTROL (OPTIONAL)
52 1 -- BURNBACK CONTROL MODULE (OPTIONAL)
40
41
42
43
44
45
46
47
48
49
50
51
52
SECTION 6 REPLACEMENT PARTS
