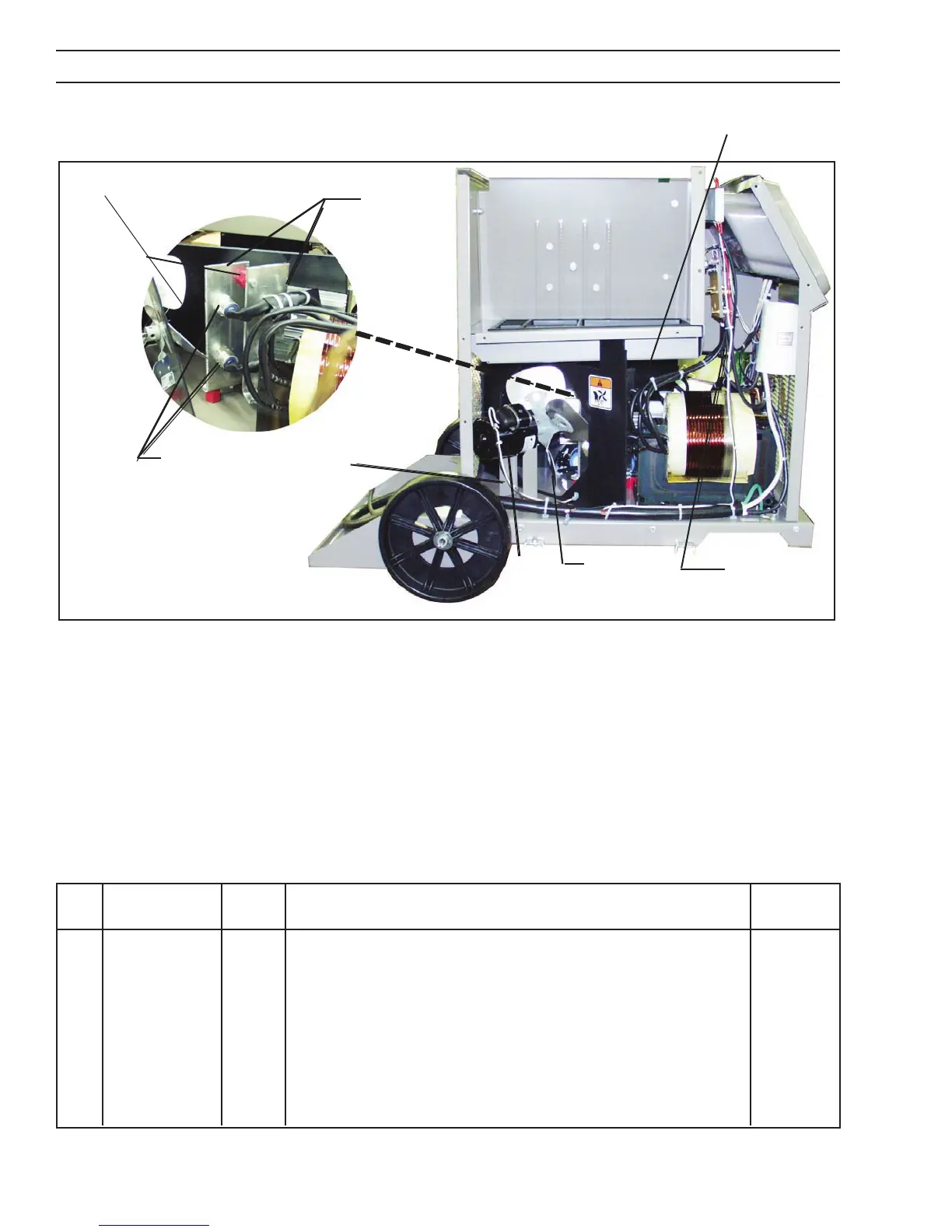

Figure 27 - Inside Left View of Multlimaster 260
QTY. ITEM CIRCUIT
No. REQ. NO. DESCRIPTION SYMBOL
60 0558001710G 1 FAN MOUNT
61 680970 1 MOTOR M1
62 950592 1 FAN BLADE
63 0558001577 1 MAIN TRANSFORMER 208/230V T1
0558001580 1 MAIN TRANSFORMER - 230/460/575V T1
64 99511915 2 DIODE REV 200V 250A D1,2
65 99511916 2 DIODE FWD 200V 250A D3,4
66 0558001018 3 INSULATOR STANDOFF
67 0558001708 2 DIODE HEATSINK
68 9510711 1 THERMAL SWITCH TS2
69 951085 1 THERMASL SWITCH TS1
60
61
62
63
64,65
67, 68
66
SECTION 6 REPLACEMENT PARTS
69
