ESAB Multimaster-260 Installation And Operation

49

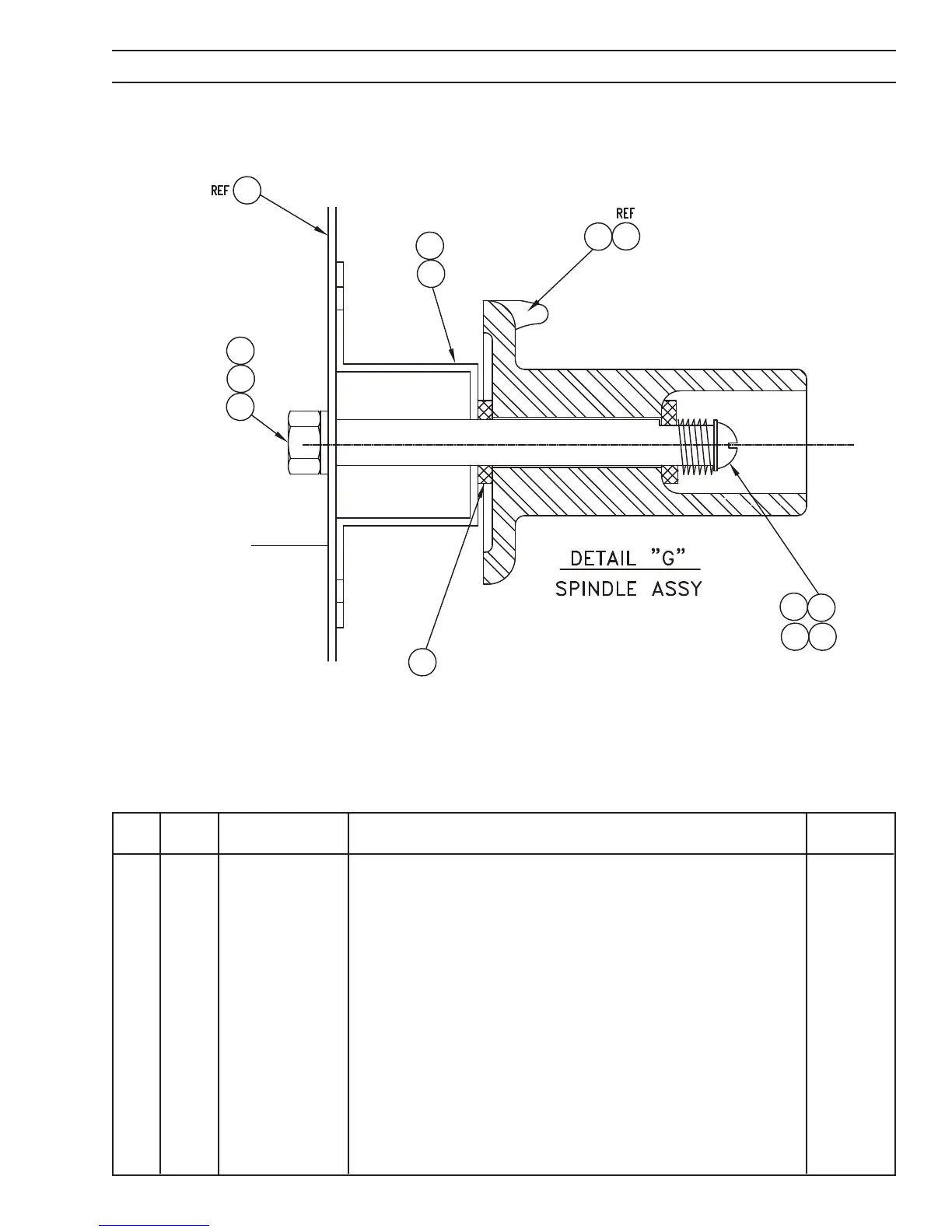

Figure 28 - Spindle Assembly for Migmaster 2606
QTY. ITEM CIRCUIT
No. REQ. NO. DESCRIPTION SYMBOL
80 1 0558002561M BRACKET WIRE SPOOL MOUNT
81 1 65509512 RIV BLD AL 1/4GRIP .062.250
82 1 0558002548M SHELF DIVIDER
83 1 634347 CLIP HITCH .16D X 3.25L
84 1 948258 SPINDLE MOLDED
85 1 36756 “D” SHAFT ALUMINUM
86 SCR 10001 STLZPC .375-16 X 1.00
87 1 WSR 52002 STLZPC .375
88 2 948255 PAD BRAKING
89 1 23600982 SPR .88 X .65D X .88L
90 1 WASHER D-TYPE
91 AR WSR 53001 STLZPC .375
92 AR SCR 12043 STLZPC .375-16 X 1.00
81
80
8483
82
SECTION 6 REPLACEMENT PARTS
86
85
89
88
87
92
91
90
