6.4 Dismantling the motor
f
1 2
34
5
6

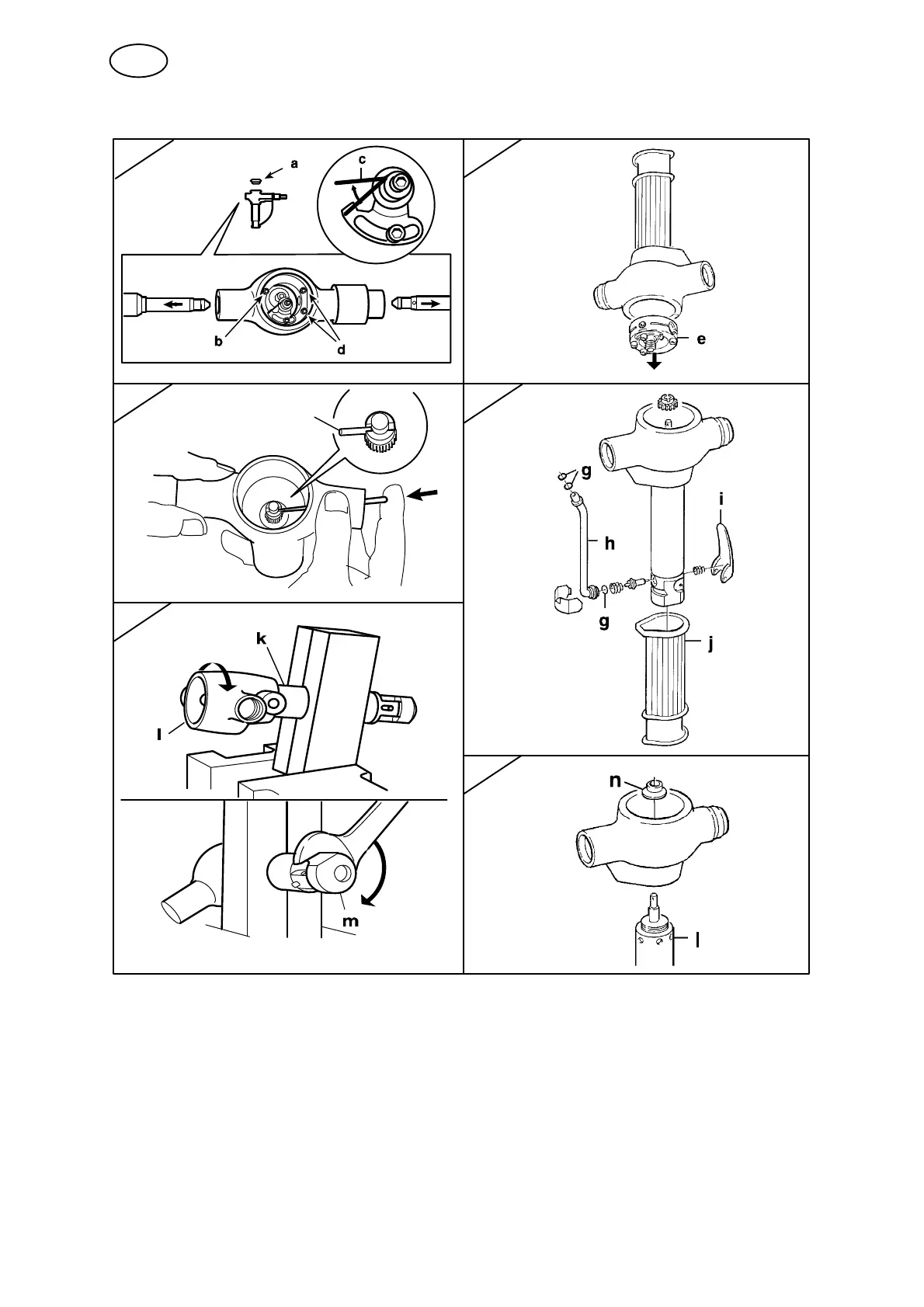

1. Remove the plastic cover (a) on the gun housing. Undo the locking screw (b) using
an Allen key and remove the welding hose.
Unload the spring (c) and undo the screws (d) holding the contact tube.
Remove the tube.
2. Turn the welding gun upside-down. Wire the feed unit (e) can now be easily removed.
3. Insert a 90 mm long metal rod with a diameter of 2 mm through the hose connection
hole in the gun housing.
Push out the roll pin (f) in the motor shaft which holds the feed roller of the motor
shaft in place.
Remove the feed roller.
