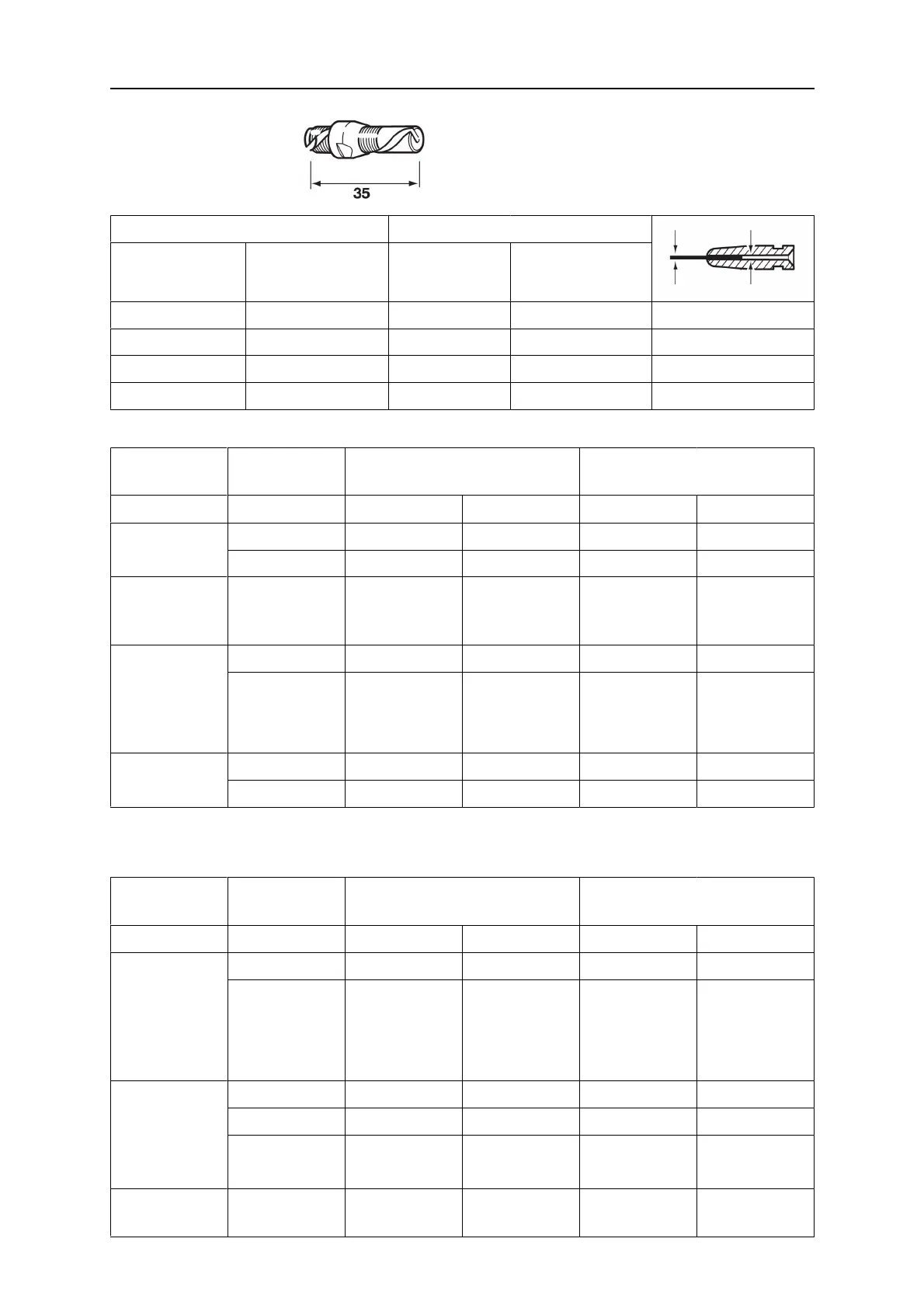

WEAR PARTS
0458 870 201
- 28 -
© ESAB AB 2014
Helix M7 / M8
Shielding gas / Welding wire Ø Contact nozzle
CO
2
Mix / Ar M7 M8
- 0.6 0368 313 881 - W0.8
0.9 0.8 0368 313 883 0368 313 983 W1.0
1.0 0.9 0368 313 884 0368 313 984 W1.2
1.2 - 0368 313 885 - W1.4
Wire liner
Welding
torch
Welding wire Steel spiral liner PTFE ceramic liner*) (beige)
3 m 4.5 m 3 m 4.5 m
PSF™ 250
PSF™ 250C
0.6 - 0.8 mm 0366 549 882 0366 549 883 - -
0.9 - 1.0 mm 0366 549 884 0366 549 885 0457 969 882 0457 969 883
PSF™ 305
PSF™ 315C
LD
1.2 mm 0366 549 886 0366 549 887 0457 969 882 0457 969 883
PSF™ 405
PSF™ 405C
PSF™ 410w
PSF™ 410Cw
1.4 mm 0366 549 888 0366 549 889 0457 969 884 -
1.6 mm 0366 549 890 0366 549 891 - -
PSF™ 505
PSF™ 510w
2.0 mm - 0366 549 898 - -
2.4 mm - 0366 549 899 - -
*) No wear insert needed.
The wire guide is marked with the max. wire diameter (stamped on the nipple).
Welding
torch
Welding wire PTFE liner incl. wear insert
(steel, white)
Wear insert separate for
PTFE liner
3 m 4.5 m Steel PTFE (Al)
PSF™ 250
PSF™ 250C
PSF™ 305
PSF™ 315C
LD
0.8 mm 0366 550 882 0366 550 883 0366 545 880 0368 742 880
0.9 - 1.0 mm 0366 550 884 0366 550 885 0366 545 881 0368 742 880
PSF™ 405
PSF™ 405C
PSF™ 410w
PSF™ 410Cw
1.2 mm 0366 550 886 0366 550 887 0365 545 882 0368 742 883
1.4 mm 0366 550 888 0366 550 889 0366 545 883 0368 742 881
1.6 mm 0366 550 890 0366 550 891 0366 545 884 0368 742 881
-PSF™ 505
PSF™ 510w
2.0 mm / 2.4
mm
0366 550 892 0366 550 893 - -
