Magnifying lens installation
1. Install the magnifying lens into the magnifying lens frame
2. Install the magnifying lens frame into the Auto-Darkening filter by sliding it down into the

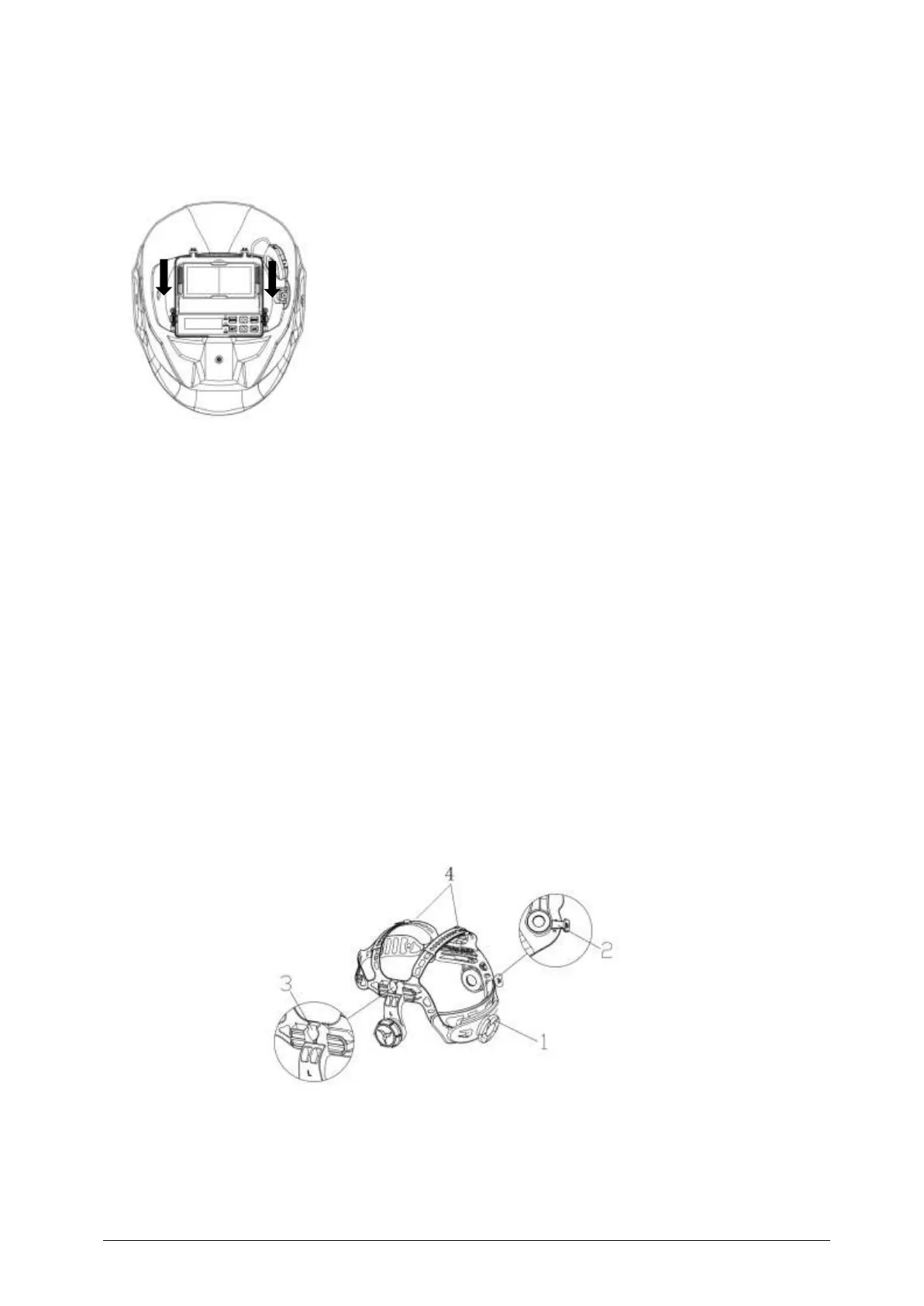

magnifier frame retention bracket as shown in the below picture
ADJUSTING THE FIT OF THE HELMET
The overall circumference of the headband can be made larger or smaller by rotating the knob
on the back of the headband. (See adjustment “1” in the picture below). This can be done while
wearing the helmet and allows easy micro-level tension adjustment to keep the helmet firmly on
the head without it being too tight.
If the headband is riding too high or too low on your head, adjust the straps which passes over
the top of your head. To do this, release the end of the band by pushing the locking pin out of the
band’s hole. Slide the two portions of the band to a greater or lesser width as required, and push
the locking pin through the nearest hole. (See adjustment “4” in the picture below).
ADJUSTING THE DISTANCE BETWEEN THE HELMET AND FACE
1. Press and hold the slider (see adjustment 3 in the picture below) on both sides, to slide
the headgear back and forth within the helmet.
2. Ensure the slider is locked back into position and make certain the distance between the
lens to both eyes is equal. This avoids issues with uneven ADF darkness.
ADJUSTING VIEW ANGLE POSITION
The tilt adjustment is located on the right side of the helmet. Loosen the right headgear tension
knob and adjust the lever forward or back to the desired position (see adjustment 2 in the picture
below). Retighten the right headgear tension knob.
To Next Page
