Installing the Motherboard
Connecting Case Components

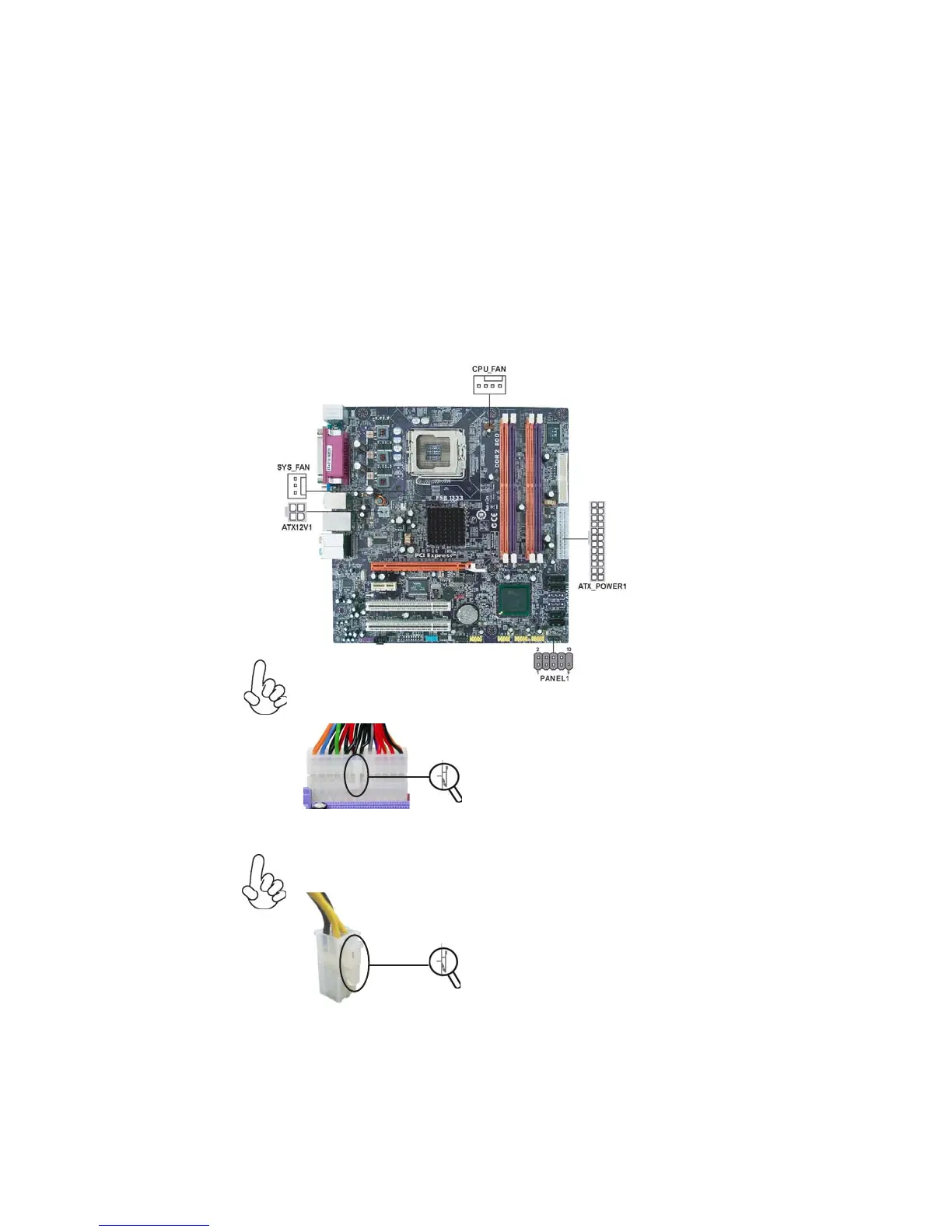

After you have installed the motherboard into a case, you can begin connect-
ing the motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN
2 Connect the system cooling fan connector to SYS_FAN
3 Connect the case switches and indicator LEDs to the PANEL1.
4 Connect the standard power supply connector to ATX_POWER1.
5 Connect the auxiliary case power supply connector to ATX12V1.
Users please note that the 24-pin power cable can be connected to the
ATX_POWER1 connector.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX_POWER1 match perfectly.
Connecting 24-pin power cable
24-pin power cable
The ATX12V power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V
match perfectly.
Connecting 4-pin power cable
4-pin power cable
