Installing the Motherboard
Connecting Optional Devices

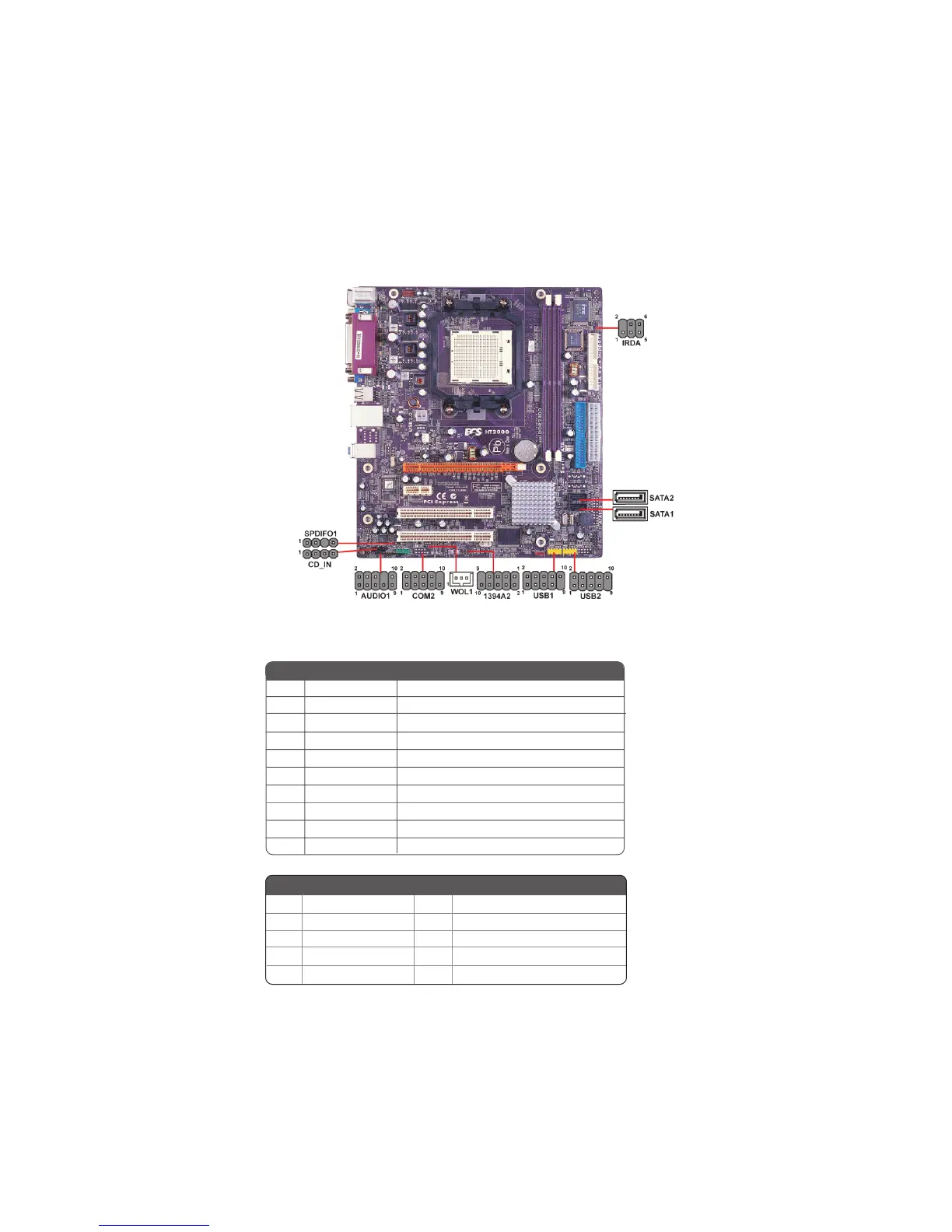

Refer to the following for information on connecting the motherboard’s optional devices:
AUDIO1: Front Panel Audio header
This header allows the user to install auxiliary front-oriented microphone and line-out ports
for easier access.
Pin Signal Name Function
1 AUD_MIC Front Panel Microphone input signal
2 AUD_GND Ground used by Analog Audio Circuits
4 AUD_VCC Filtered+5V used by Analog Audio Circuits
5 AUD_F_R Right Channel Audio signal to Front Panel
6 AUD_RET_ R Right Channel Audio signal to Rear Panel
7 REVD Reserved
8 Key No Pin
9 AUD_F_L Left Channel Audio signal to Front Panel
10 AUD_RET_ L Left Channel Audio signal to Rear Panel
3 AUD_MIC_BIAS Microphone Power
Pin Signal Name Function
1 PORT 1L 2 AUD_GND
3 PORT 1R 4 PRESENCE#
5 PORT 2R 6 SENSE1_RETURN
7 SENSE_SEND 8 KEY
Pin Signal Name
Pin Signal Name
9 PORT 2L 10 SENSE2_RETURN
To Next Page
