ESCALADE Triumph - Page 6

Assembly Instructions - Play Position
6.

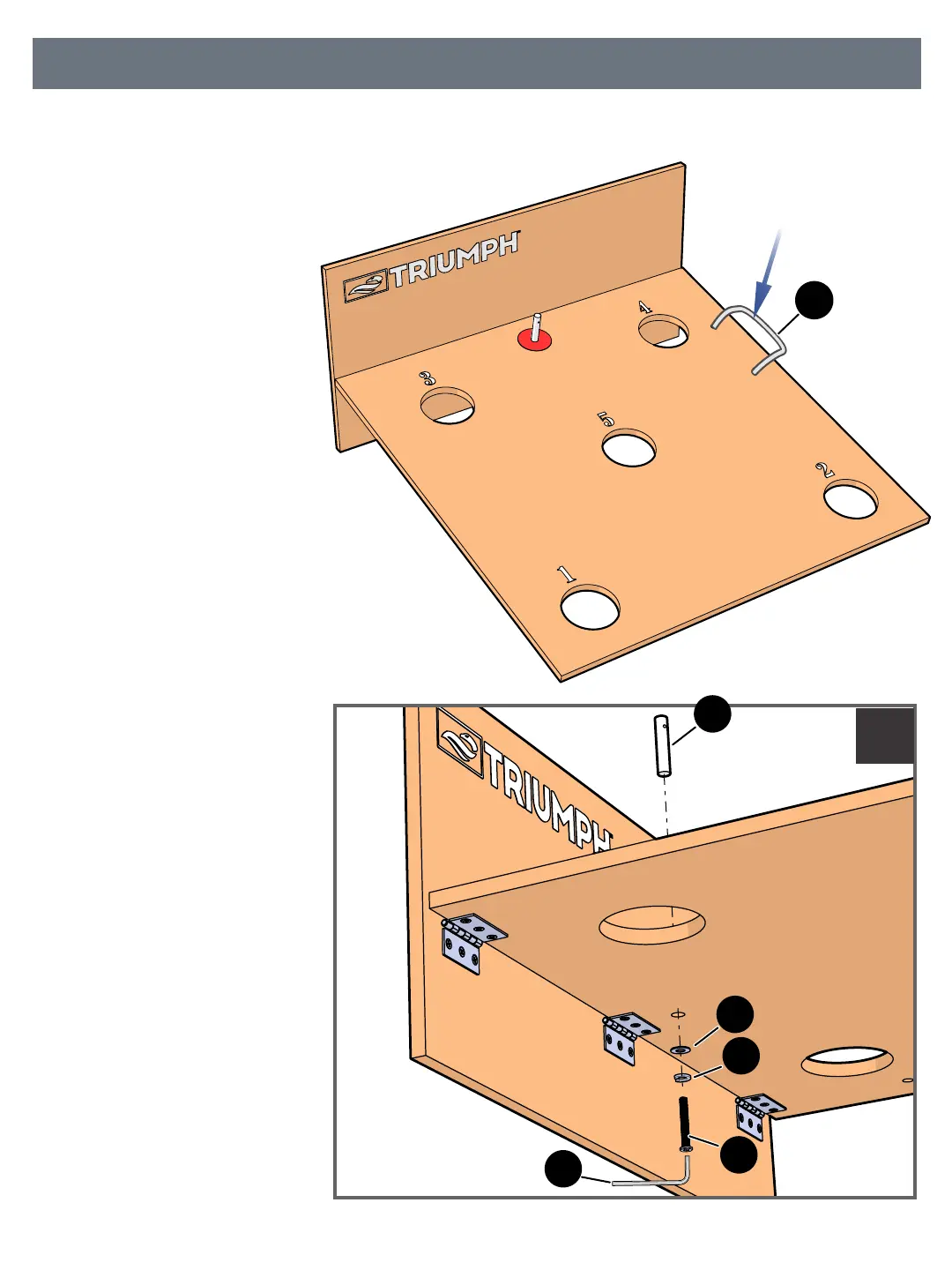

Install the White Pin (#6)
with an Allen Bolt (#8), a
Lock Washer (#10) and a Flat
Washer (#9) using Allen
Wrench (#13) as shown in
Detail C & Figure 4.
5.
Carefully Rotate the board assembly
from the previous step until it is in the
play position. See Figure 4.
-6-
Insert the loose end of the
Rope Handle (#12) into the
hole on the target board, and
tie a knot underneath. One end
of the rope will be tied already.
Rope Handle
C
7.
6.
Repeat steps 1- 7 to assemble a
second Washer Toss assembly
then you are ready to play!
6
9
8
F
igure 4.
10
12
13
