ESCALADE Triumph - Page 5

3.
4.

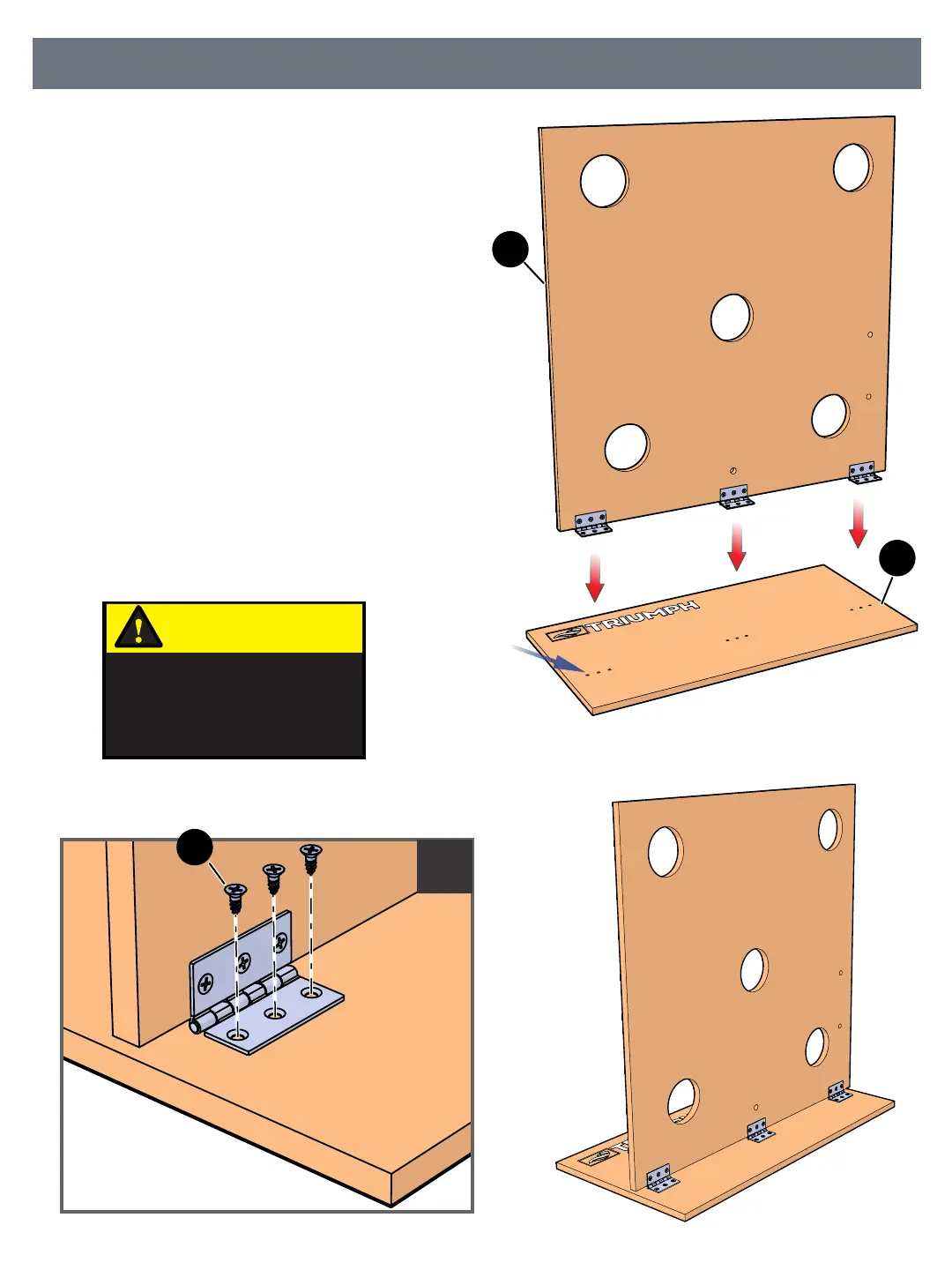

Line up the hinges on the Target board (#1)
with the Pre-drilled holes on the Backboard
(#2). Then attach the Screws (#11) until
secure. See Figure 3 & Detail B.
-5-
Assembly Instructions - Installing the Backboard
2.
On a dry and clean surface place
Backboard (#2) with the logo facing up.
See Figure 2.
B
Figure 2.
Figure 3.
Pre-drilled
holes
2
1
11
Continue to Step 5 on the next page right
away. Do not leave the Target Board
unattended while in the vertical position.
CAUTION.
DO NOT leave the Target
Board unattended while in
the Vertical position.
