EScale Seafire - Page 7

7Seare Instruction Manual
SEAFIRE.
6
3mm.
Flap control horn.
T-pin.
C/A glue.
C/A glue.
T-pin.

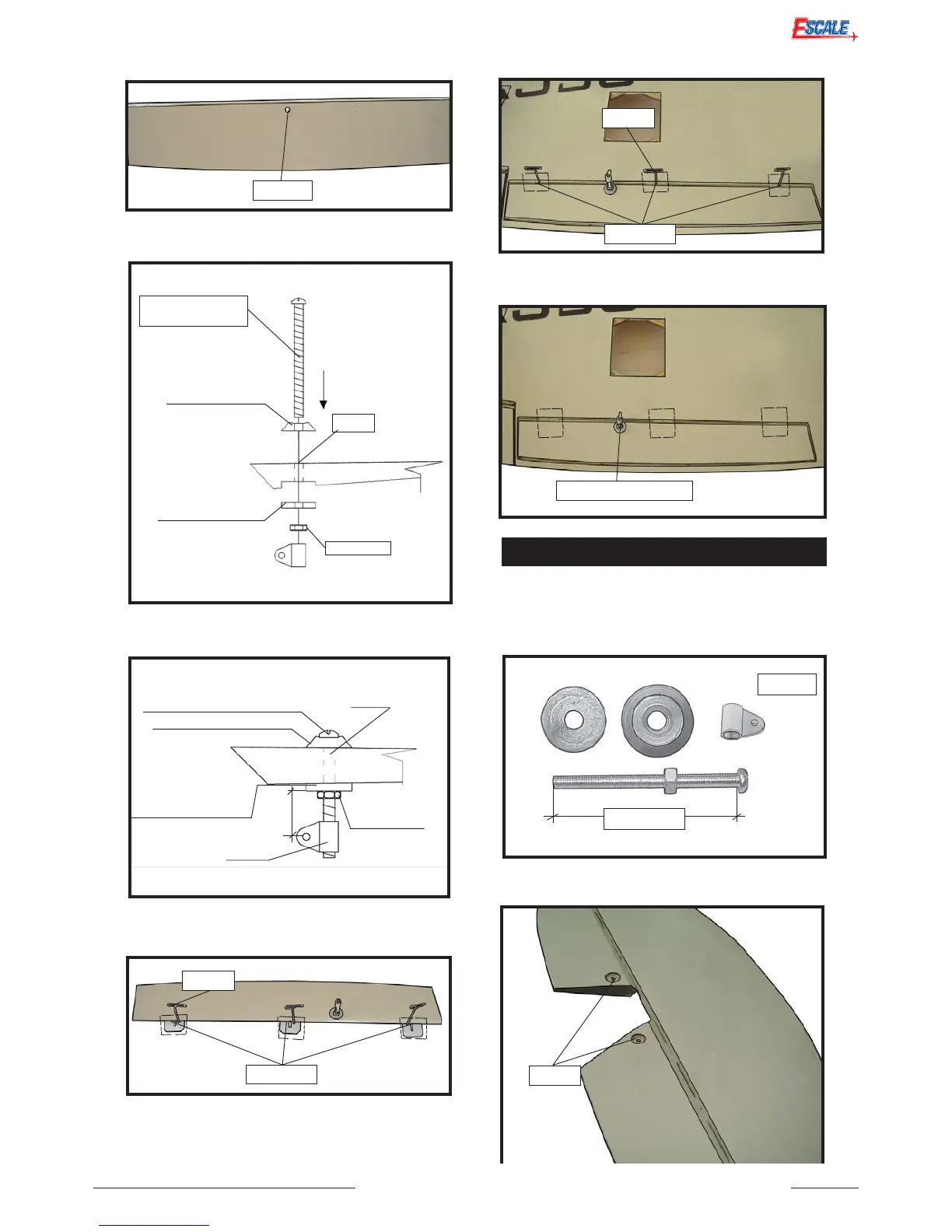

Install the elevator control horn using the
same method as the aileron control
horns.
INSTALL ELEVATOR CONTROL HORN
CONTROL HORN M3 SCREW.
M3 lock nut.
ALUMINIUM WASHER.
18mm.
ALUMINIUM WASHER.
Epoxy.
Epoxy.
Flap.
Aluminium Washer.
CONTROL HORN
M3 SCREW.
M3 LOCK NUT.
Epoxy.
Aluminium Washer.
Flap.
2 sets.
3x35mm.
3mm.
