Escea DF700 - Masonry Installation

B
10

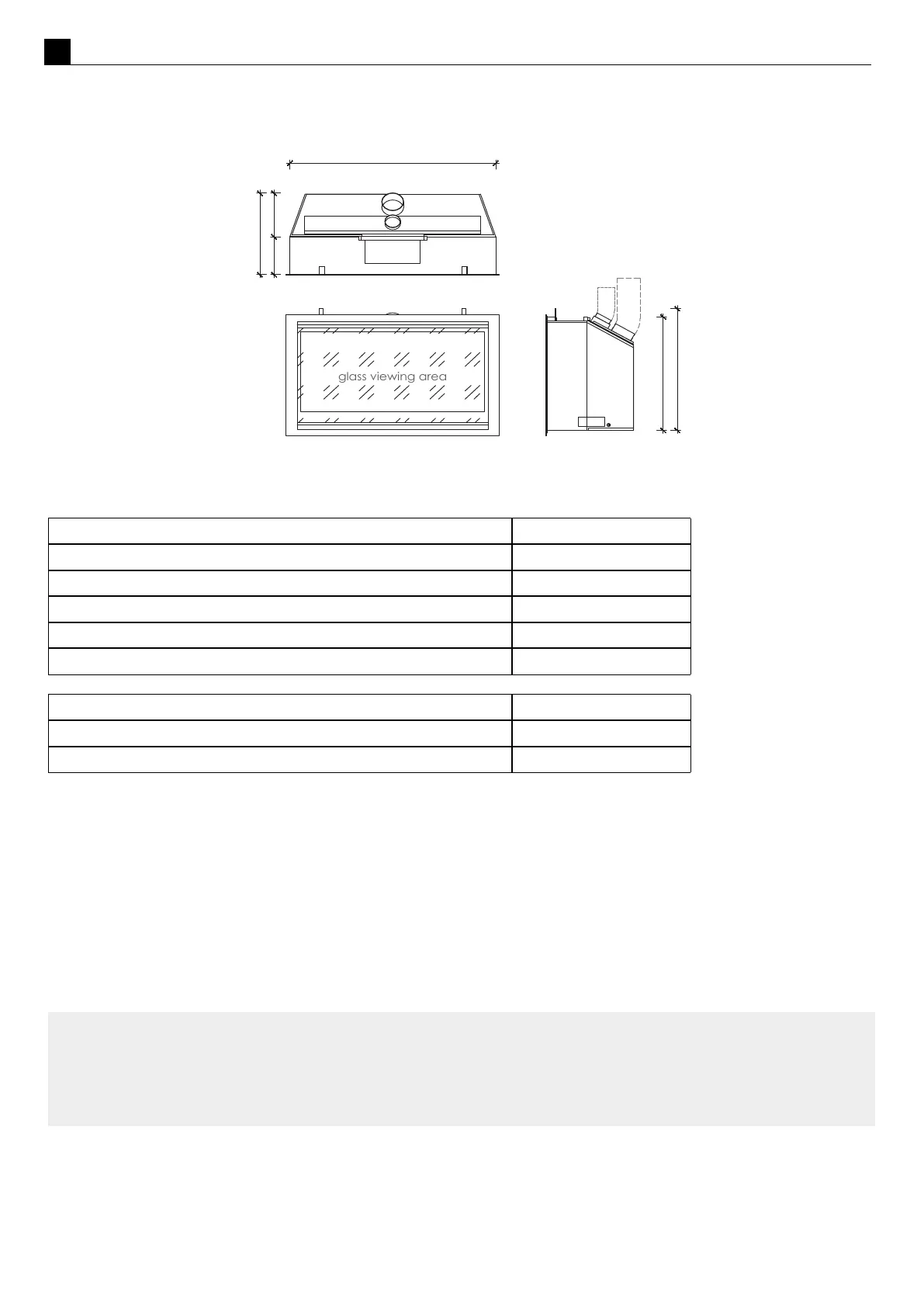

Fireplace Width (A) 940mm
Fireplace Height (B) 598mm
Fireplace Height (C) Without stando bracket 558mm
Fireplace Depth (D) 400mm
Glass Viewing Area Width 872mm
Glass Viewing Area Height 464mm
Framed Cavity Opening Width min. 945mm
Framed Cavity Opening Height min. 600mm
Framed Cavity Depth min.
 425mm*
* Cavity does not include the 50mm ue clearance to a combusble material

The DF gas replaces t exisng masonry chimneys and benet from a fully non-combusble structure with
minimised clearances. Installaon requires a minimum opening size of:
DF700: 695mm W x 560mm H x 400mm D

WARNING: IDEALLY THE WALL LINING WONT BE INSTALLED UNTIL AFTER THE FIREPLACE IS INSERTED INTO



Note: Measure the indicated framing dimensions from the base of the appliance.
Note: If cavity dimensions signicantly exceed those specied, a register plate is available for purchase through
your local Escea retailer (New Zealand Only).
glass viewing area
glass viewing area
A
D
B
C
A
D
C
wall lining to
overhang framework
40
DF Series Gas Fire
with Slim Fascia
standoff bracket
no combustibles
in shaded area
B
186 210
186 215
framing member
wall lining to
overhang framework
40
DF Series Gas Fire
with Slim Fascia
standoff bracket
no combustibles
in shaded area
framing member
