Escea DF700 - Creating the Cavity; Product Dimensions

9
IMPORTANT: INSTALLATIONS THAT ARE NOT SPECIFICALLY OUTLINED IN THIS MANUAL SHOULD BE







B CREATING THE CAVITY

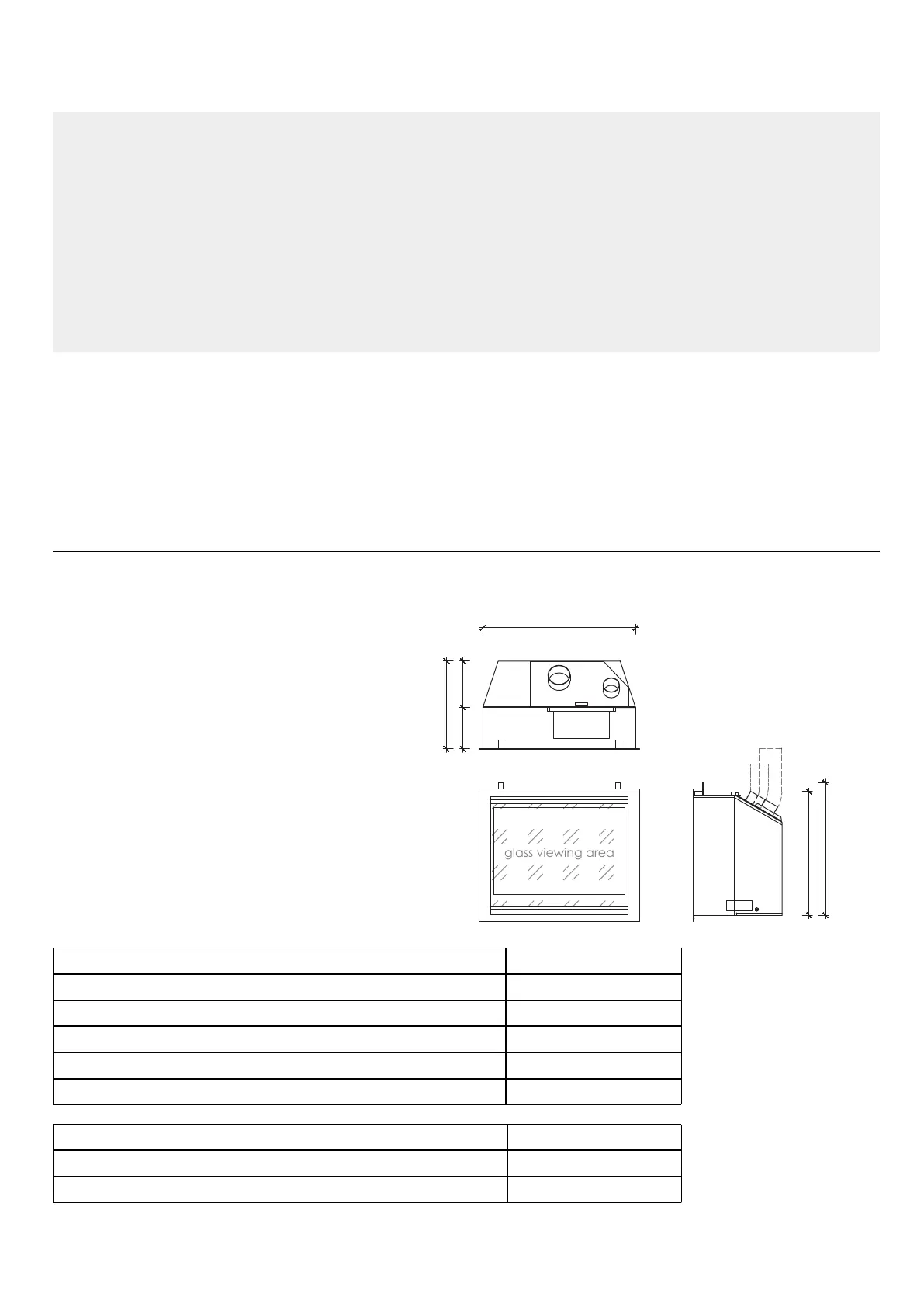

Product Dimensions
Note: All outside dimensions taken from the
appliance are with the standos aached
Note: a top is not required when creang
the cavity
Fireplace Width (A) 690mm
Fireplace Height (B) 598mm
Fireplace Height (C) Without stando bracket 558mm
Fireplace Depth (D) 396mm
Glass Viewing Area Width 620mm
Glass Viewing Area Height 464mm
Framed Cavity Opening Width min. 695mm
Framed Cavity Opening Height min. 600mm
Framed Cavity Depth min. 400mm*
* Cavity does not include the 50mm ue clearance to a combusble material
glass viewing area
glass viewing area
A
D
B
C
A
D
C
wall lining to
overhang framework
40
DF Series Gas Fire
with Slim Fascia
standoff bracket
no combustibles
in shaded area
B
186 210
186 215
framing member
wall lining to
overhang framework
40
DF Series Gas Fire
with Slim Fascia
standoff bracket
no combustibles
in shaded area
framing member
