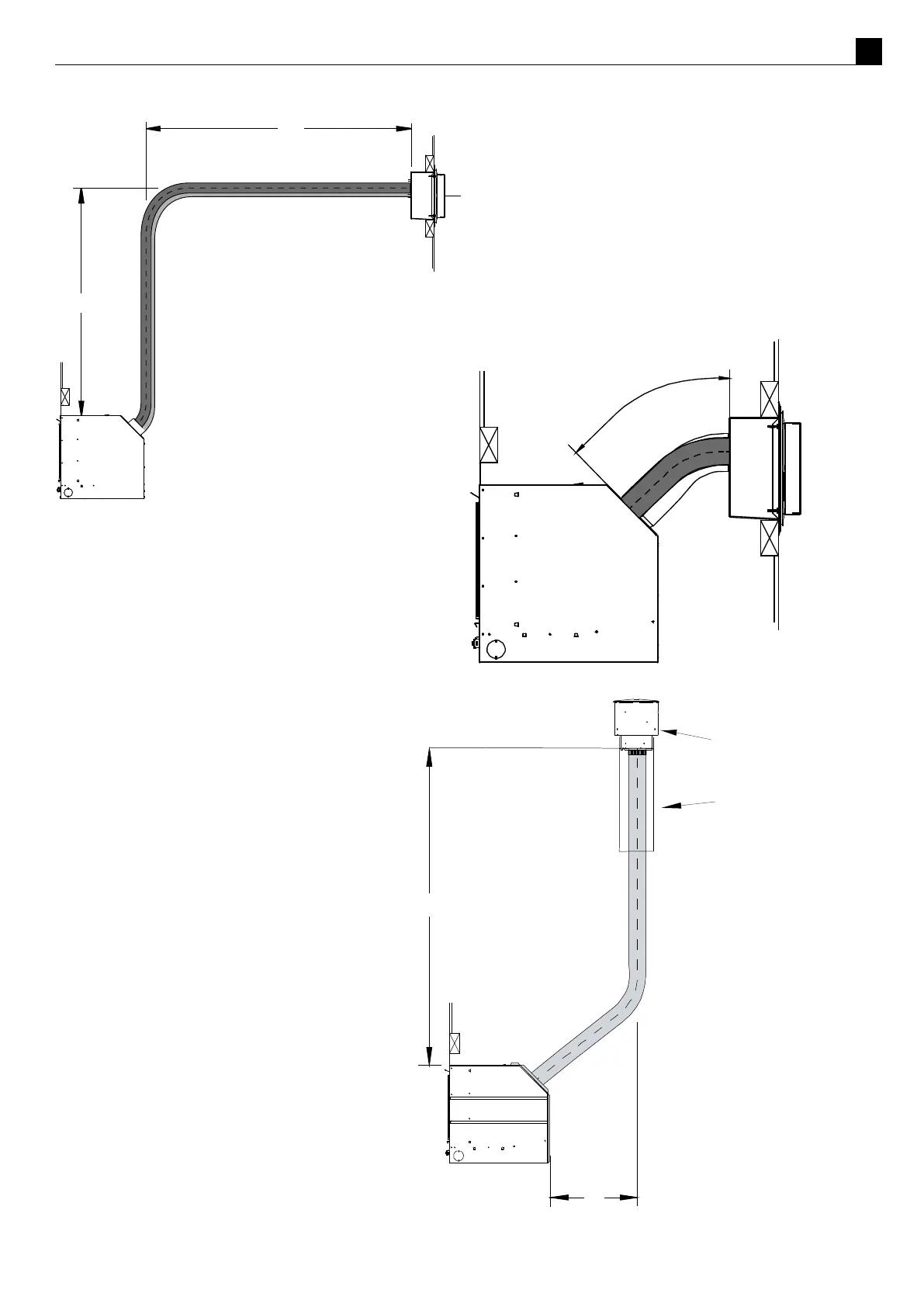

: Ulises the Escea Vercal
Power Flue enclosure kit.
X
Y
X + Y Maximum = 4m
Y Maximum = 4m
Y Minimum = 0m
X Maximum = 4m
X Minimum = 0m
X + Y Minimum = 0.4m
400mm Min.
4m Max.
Overall flue length:
X
Y
UVP Fan Unit
1.2m F-F Liner
X Max = 4m
Y Max = 4m
X + Y Max = 4m
