D4 Gas Pipe Sizing
Gas pipe should be sized as per the requirements of AS/NZS 5601. The pipe sizing must be sucient to deliver
the following volume of gas to the heater with all other gas appliances in the home running at the same me:
D5

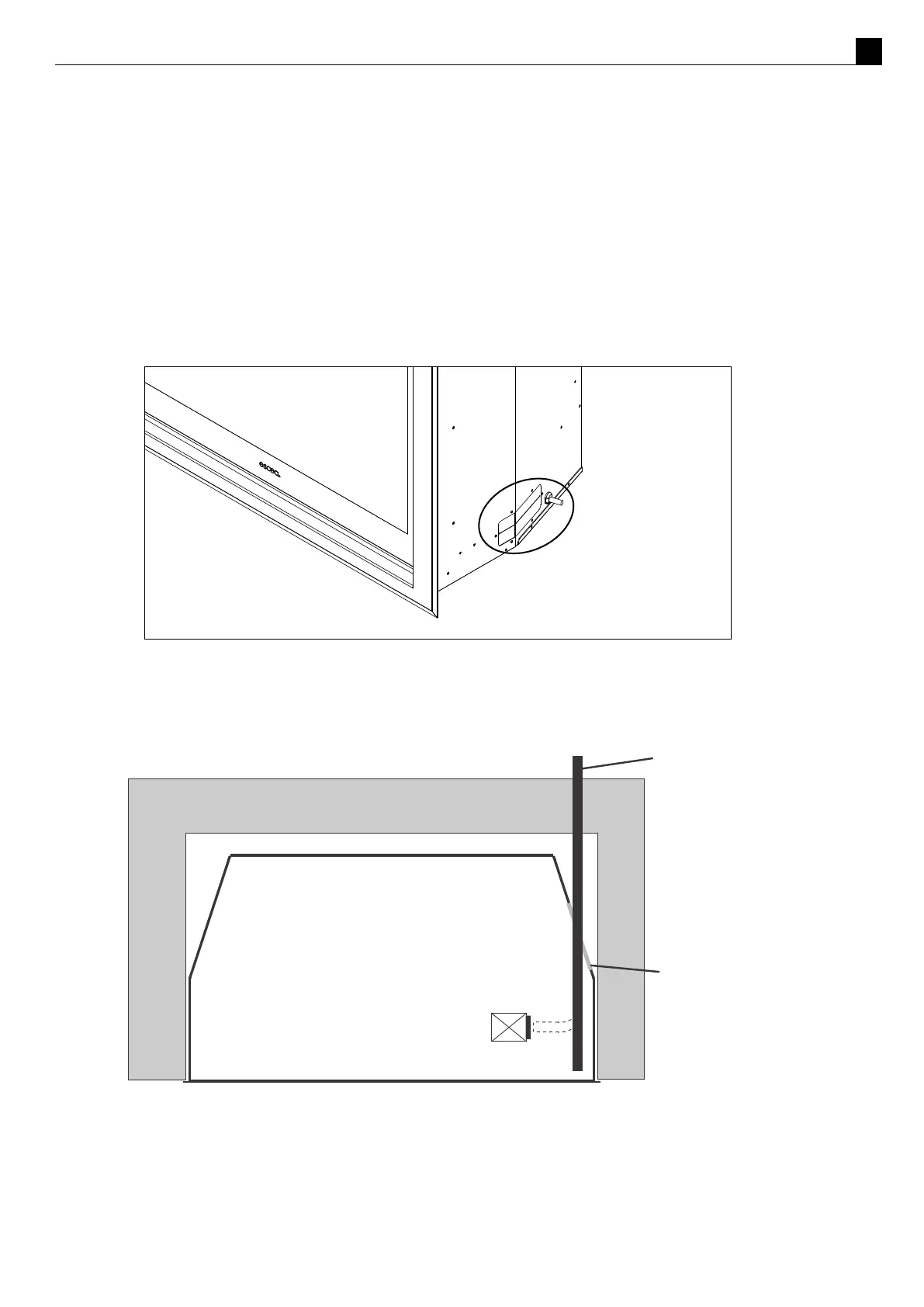

The DF-Series replace gas pipe entry point is located in the lower right corner; a sheet of silicone is used as a
grommet (circled below).
Get the gas pipe lined up with the silicone grommet so that when the chassis is pushed into the cavity in secon
E on page 33 the re will look like the diagram shown below.
D6 Gas Supply
Escea does not condone using a 9kg bole as the main gas supply for an Escea re. Doing so could result in a
dirty or poor ame and produce excess soot build up.
Fireplace
Cavity
Regulator
Gas supply
pipe
Silicone
grommet
