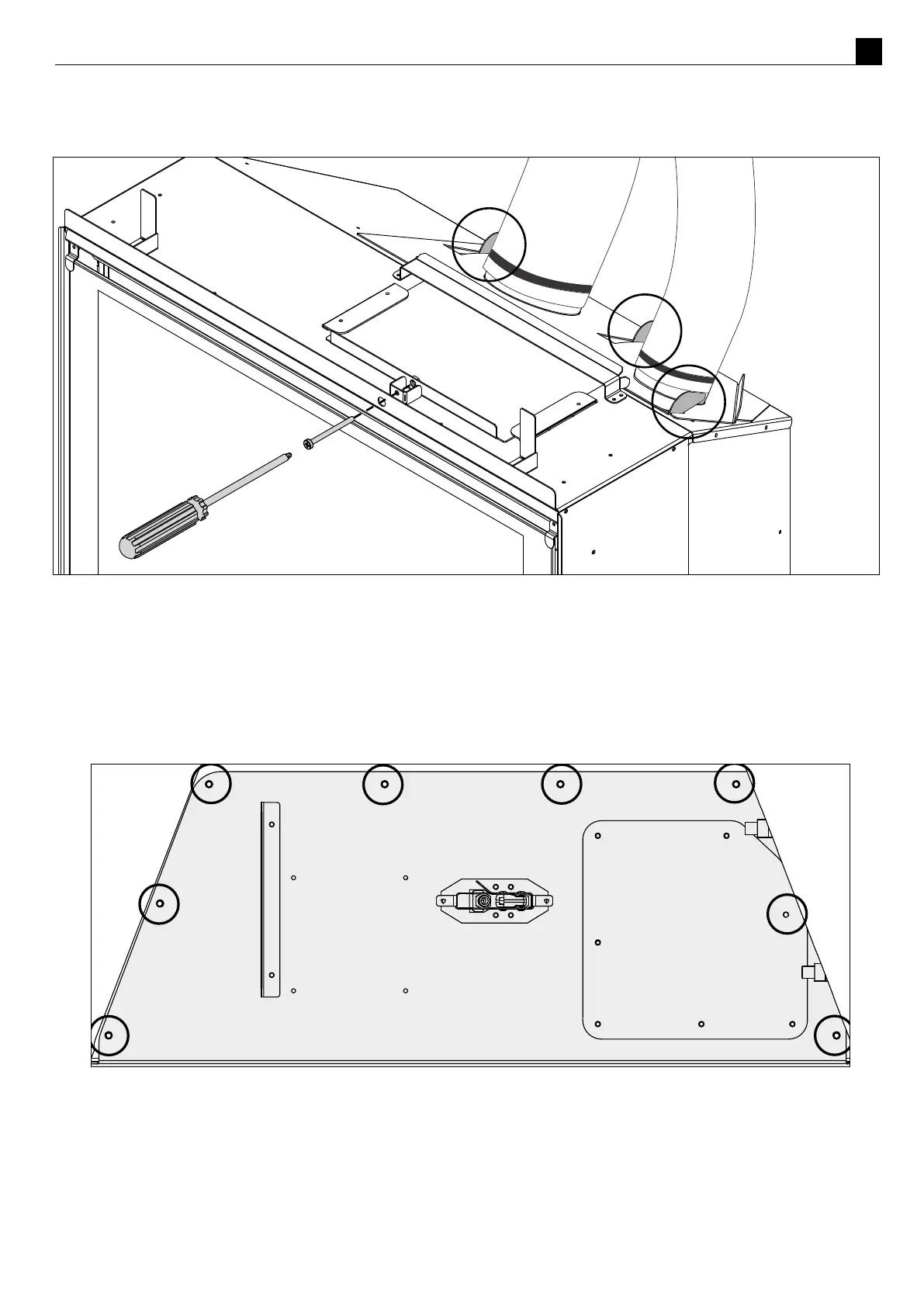

Make sure that all of the fold up tabs (circled in the diagram below) used for locang the ue spigot plate onto
the chassis are poking through the ue spigot plate. Note DF960 has 6 tabs.
Insert the 1 long machine screw into the locaon shown in the diagram above to secure the ue spigot plate to
the chassis.
E3 Removing the Burner Tray
Undo halfway the two screws circled below, this will allow you to slide out the front bae (shaded below)
Remove the screws circled in the diagram above. The burner tray can now be carefully slid forward and lied
out of the rebox slightly to detach the 2 ignion leads, the 8-way teddington valve connector and the earth
lead.
