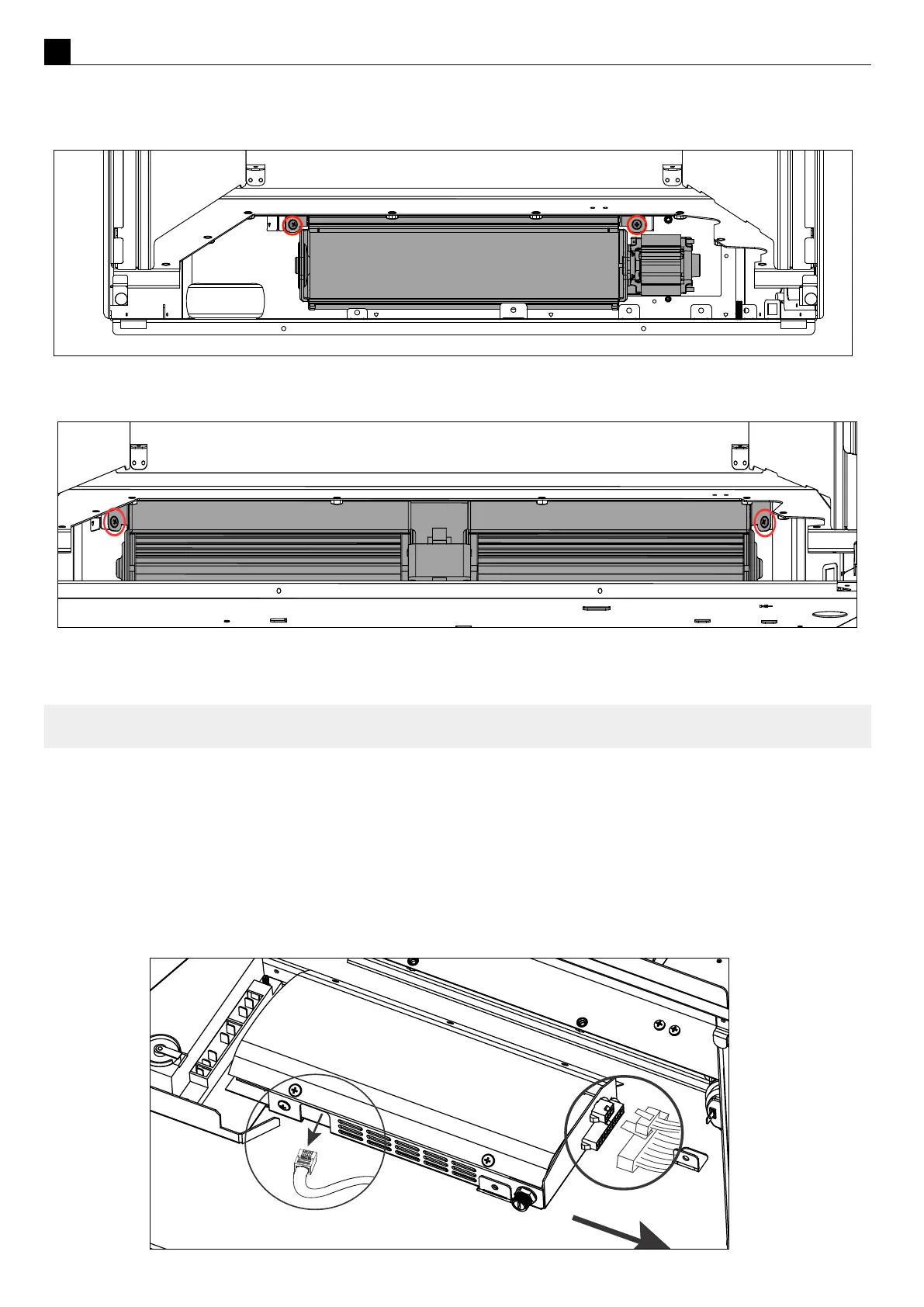

S8 Removing Electronic Tray
All of the electronic components of the heater have been located on a removable tray.
Remove the 18-way connector and 6-way connector from the end of the tray, the network cable, if installed
(both locaons circled in diagram shown) and the transformer connector located in the rear LH corner of the
electronics tray.
Remove one self tapping screw in the front face of the electronics tray.
The tray can now be slid towards the RH side then lied out of the burner tray hole in the rebox.
