Escort ELC-131D - Software Operating Instructions

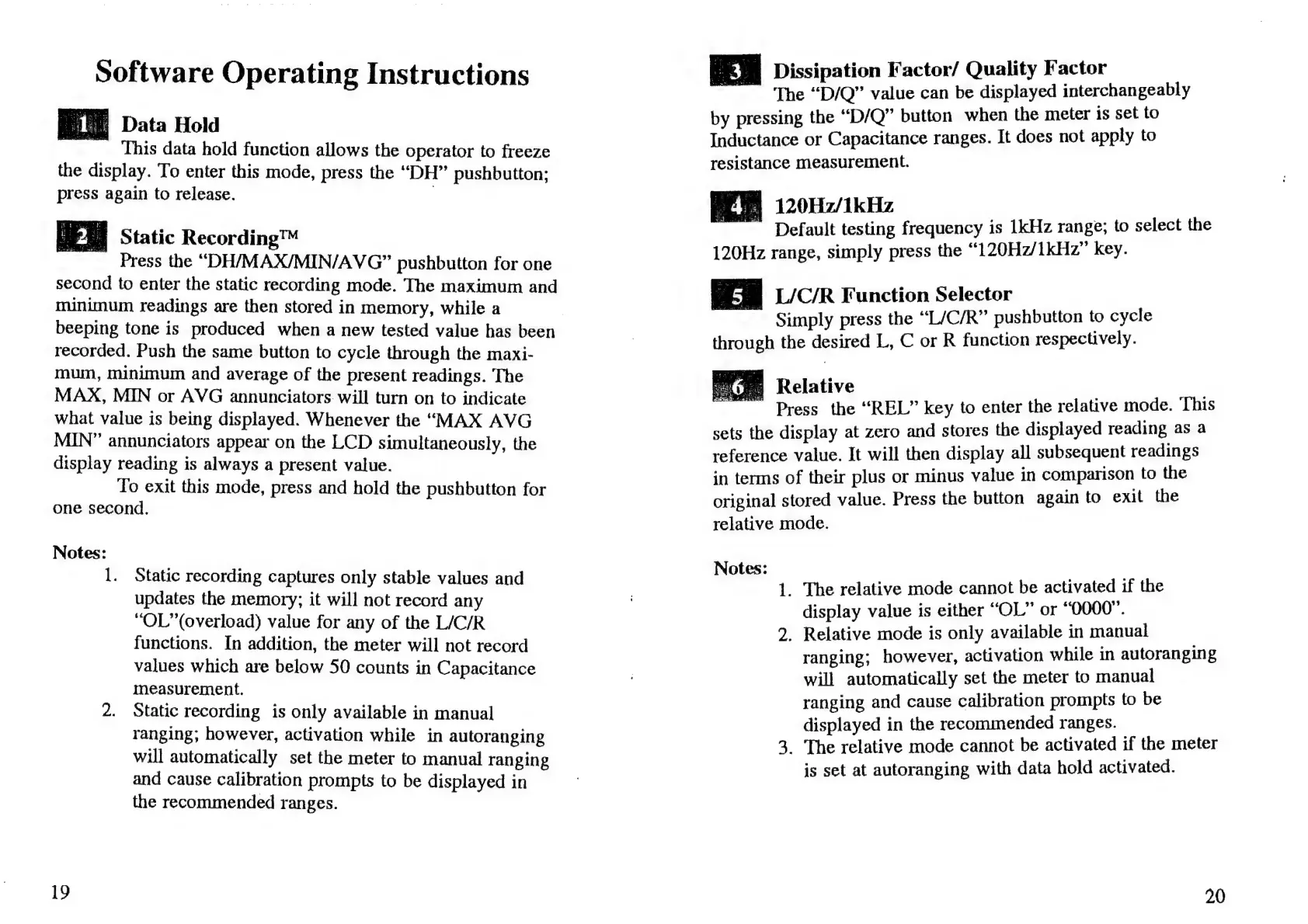

Software Operating Instructions
MI Data Hold
—
This
data
hold
function
allows
the
operator
to
freeze
the
display.
'To
enter
this
mode,
press
the
“DH”
pushbutton;
press
again
to
release.
|
j HA Static Recording™
—
Press
the
“DH/MAX/MIN/AVG”
pushbutton
for
one
second
to
enter
the
static
recording
mode.
The
maximum
and
minimum
readings
are
then
stored
in
memory,
while
a
beeping
tone
is
produced
when
a
new
tested
value
has
been
recorded.
Push
the
same
button
to
cycle
through
the
maxi-
mum,
minimum
and
average
of
the
present
readings.
The
MAX,
MIN
or
AVG
annunciators
will
turn
on
to
indicate
what
value
is
being
displayed.
Whenever
the
“MAX
AVG
MIN”
annunciators
appear
on
the
LCD
simultaneously,
the
display
reading
is
always
a
present
value.
To
exit
this
mode,
press
and
hold
the
pushbutton
for
one second.
Notes:
1.
Static
recording
captures
only
stable
values
and
updates
the
memory;
it
will
not
record
any
“OL”
(overload)
value
for
any
of
the
L/C/R
functions.
In
addition,
the
meter
will
not
record
values
which
are
below
50
counts
in
Capacitance
measurement.
2.
Static
recording
is
only
available
in
manual
ranging;
however,
activation
while
in
autoranging
will
automatically
set
the
meter
to
manual
ranging
and
cause
calibration
prompts
to
be
displayed
in
the
recommended
ranges.
19
Dissipation
Factor/
Quality
Factor
The
“D/Q”
value
can
be
displayed
interchangeably
by
pressing
the
“D/Q”
button
when
the
meter
is
set
to
Inductance
or
Capacitance
ranges.
It
does
not
apply
to
resistance
measurement.
TE 120Hz/1kHz
~
Default
testing
frequency
is
1kHz
range;
to
select
the
120Hz
range,
simply
press
the
“120Hz/1kHz”
key.
a
5
M
L/C/R
Function
Selector
g
Simply
press
the
“L/C/R”
pushbutton
to
cycle
through
the
desired
L,
C
or
R
function
respectively.
MTA
Relative
n”
Press
the
“REL”
key
to
enter
the
relative
mode.
This
sets
the
display
at
zero
and
stores
the
displayed
reading
asa
reference
value.
It
will
then
display
all
subsequent
readings
in
terms
of
their
plus
or
minus
value
in
comparison
to
the
original
stored
value.
Press
the
button
again
to
exit
the
relative
mode.
Notes:
1.
The
relative
mode
cannot
be
activated
if
the
display
value
is
either
“OL”
or
“0000”.
2.
Relative
mode
is
only
available
in
manual
ranging;
however,
activation
while
in
autoranging
will
automatically
set
the
meter
to
manual
ranging
and
cause
calibration
prompts
to
be
displayed
in
the
recommended
ranges.
3.
The
relative
mode
cannot
be
activated
if
the
meter
is
set
at
autoranging
with
data
hold
activated.
20
