ESI ES2247B - Page 9

9
15

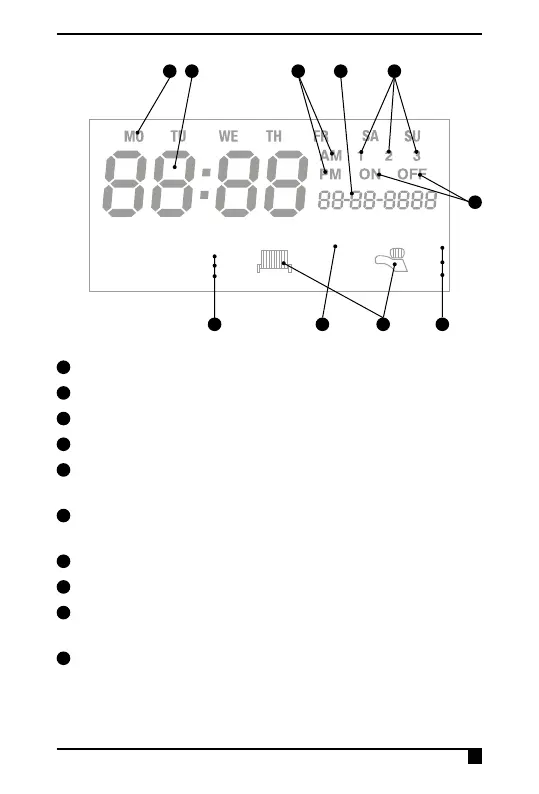

Day of the week
16
Time Display
17
AM/PM
18
Date Display
19
Displays which ON/OFF period (1/2/3) is being set when
programming Central Heating/Hot Water
20
Displays whether setting the ON time or OFF time when
programming Central Heating/Hot Water (ON/OFF)
21
Operating Mode (ON/OFF/AUTO/ALL DAY)
22
Advanced temporary override is active (ADV)
23
Radiator/Tap symbol show that Central Heating/Hot Water
is currently ON
24
+ 1hr / 2hr / 3hr temporary override is active
ADV
ON OFF
AUTO
ALL DAY
ADV
ON OFF
AUTO
ALL DAY
+1 HR
+3 HR
+3 HR
+1 HR
+3 HR
+3 HR
ADV
ON OFF
AUTO
ALL DAY
ADV
ON OFF
AUTO
ALL DAY
+1 HR
+3 HR
+3 HR
+1 HR
+3 HR
+3 HR
TIME/DATE
HEATING HW PROG RUN
15 16 17 18 19
20
21 22 23 24
