Eskimo Eskape 2800 - Parts Explosion

4
Operator’s Manual
38500
|
Eskape™ 2800 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT

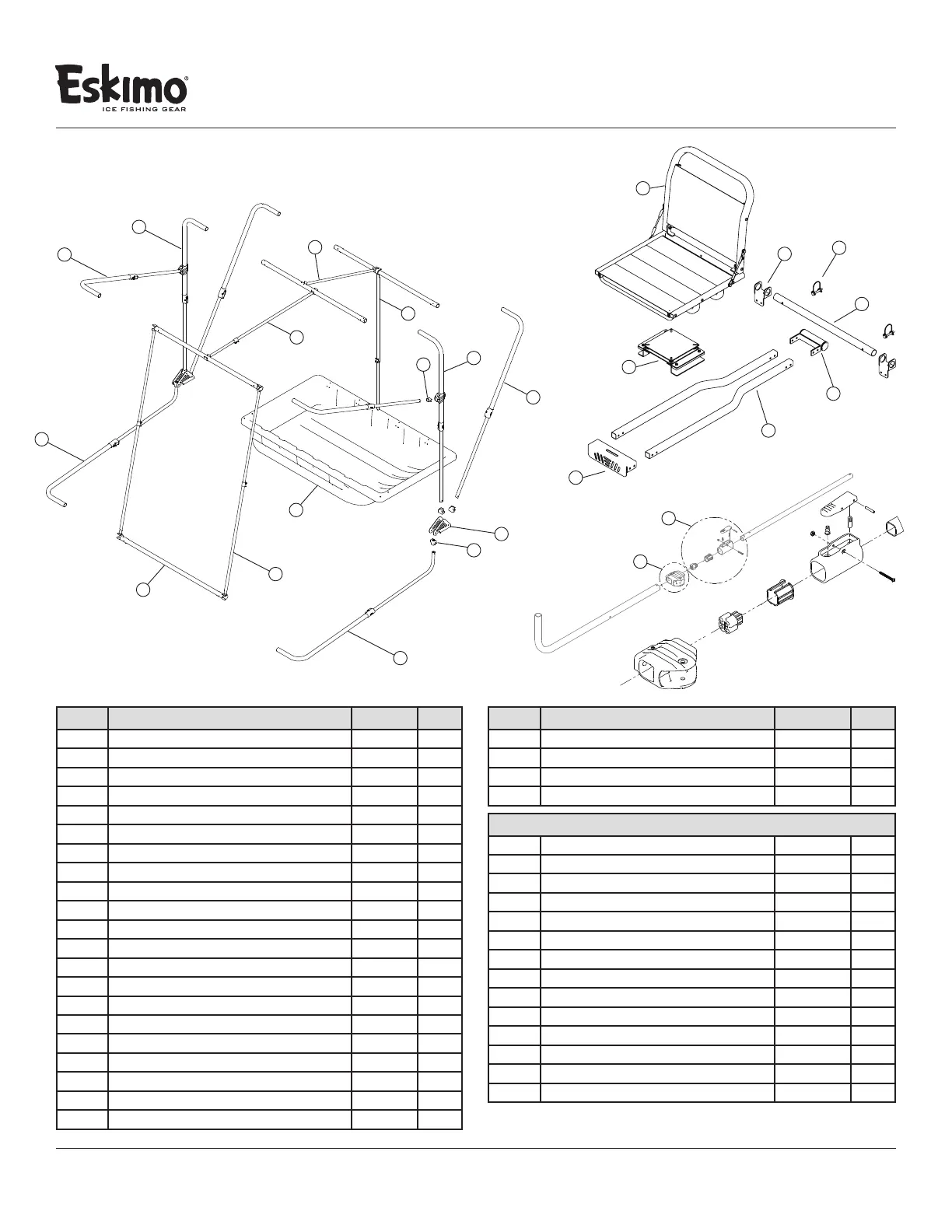

PARTS EXPLOSION
Eskape™ 2800
PARTS LIST
NO. DESCRIPTION PART NO. QT Y.
1
SLED 70 IN DRILLED
30055 1
2
HINGE LIGHTWEIGHT DBL SIDE 3HOLE
36618 2
3
CAP 20.5MM SQUARE TUBE
27821 6
4
POLE BTM SLED REAR 62.3 IN EXT X 6.64 IN DROP
33636 1
5
POLE BTM SLED FRONT 62.3 IN EXT X 6.64 IN DROP
33635 1
6
ASSEMBLY EXT TUBE AND CNR
26539 2
7
TUBE 29.5MM SQUARE MID SECTION
26542 4
8
ASSEMBLY EXT TUBE CNR SIDE EXT ESKAPE SLED FNT
36625 1
9
ASSEMBLY EXT TUBE CNR SIDE EXT ESKAPE SLED BK
36626 1
10
ASSEMBLY EXT TUBE CNR ESKAPE DOOR 51.5 IN
36916 2
11
CAP 20.5MM SQUARE TUBE 27MM WIDE
36858 2
12
ASSEMBLY SPREADER POLE ADJUSTABLE REAR
27730 1
13
ASSEMBLY SPREADER POLE ADJUSTABLE 43.580 IN
36628 2
14
ASSEMBLY SPREADER POLE ADJUSTABLE 38.570.5 IN
27729 1
15
ASSEMBLY SPREADER POLE 35IN AL
26544 1
16
SEAT VERSA TOP
15004 2
17
FTS SEAT FRAME 34IN
26535 4
18
CAP SEAT TUBE WELDMENT
26550 2
19
ASSEMBLY SEAT SLIDE LITE
28058 2
20
ASSEMBLY BRACKET SLIDE
28066 2
21
PIPE SEAT RAIL 28MM X 22 IN
26538 2
NO. DESCRIPTION PART NO. QT Y.
22
BRACKET SEAT RAIL
26537 4
23
LOCKPIN 1/4 X 13/4 ROUND HANDLE BLK
63281 4
24
KIT QRS REPLACEMENT
33581 
25
ASSEMBLY HINGE ESKAPE QRS
36642 2
ITEMS BELOW NOT SHOWN

BOLT 1/420 X 1 HH GR5 ZN
69345 16

BOLT 1/420 X 11/2 HHCS GR5 ZN
48240B 24

BOLT 1/420 X 13/4 PTH
69180 2

BOLT 1/420 X 21/2 PTH
67430 6

NUT 1/420 NYLK GR2 ZN
67538B 46

WASHER 1/4 X 5/8 X 0.07 IN GR8 ZN
48261B 56

NUT 1/420 HFNYLK BLK ZN
48752B 2

SCREW 6 X 1/2 PTH BLK ZN
36953 16

EDGE TRIM 3/8 IN CUT TO 114 INCH
29228 1

SKIN SEWN COMPLETE 38500
34963 1

WINDOW HEXAGON
37546 4

WINDOW TRIANGLE
37547 2

ROPE 1/4 IN X 10 FT TWISTED BLK
27921 1

SEAT STRAP KIT
36960 1
16
18
19
21
22
23
17
20
2
3
5
13
1
7
12
14
11
4
10
9
6
8
15
24
25
25
DETAIL
24
DETAIL
