Esoteric D-07X - Making Connections

8
Q Precautions when making connections
o Make all connection before plugging in the power cord.
o Carefully read the operation manuals of the other equipment and follow their instructions when connecting them.

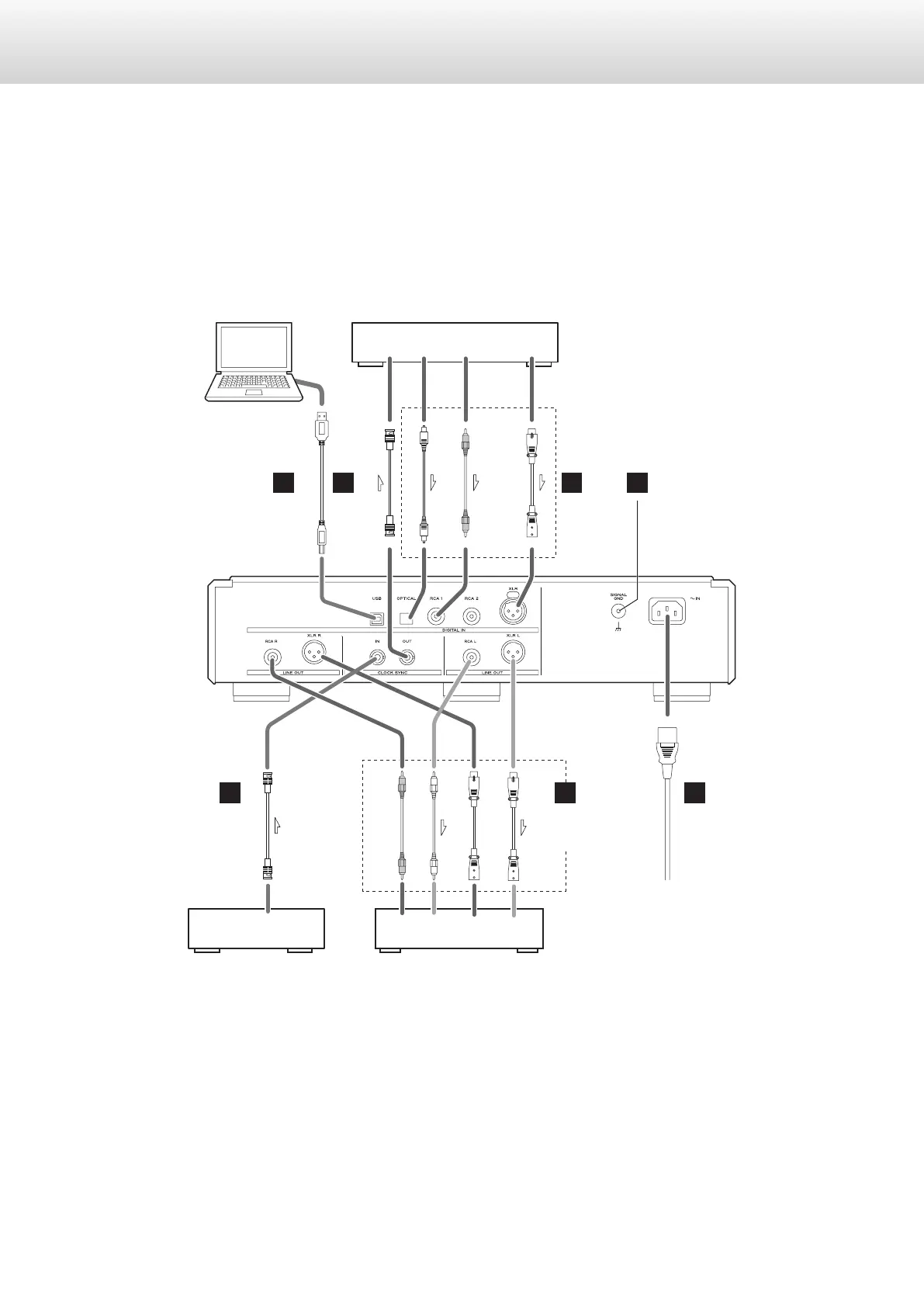

Making connections
Super Audio CD/CD transport or player
DIGITAL OUT
CLOCK SYNC
IN
BNC coaxial digital cable
XLR digital cable
RCA digital cable
Optical digital cable
USB cable
Personal computer
A
B
C D
Audio input
L
RLR
Amplier
Connect a
pair of XLR cables
or RCA cables.
XLR cable
RCA audio cable
D/A converter
(D-07X)
CLOCK SYNC
OUT
Clock generator
(G-01, G-02, etc.)
BNC coaxial digital cable
B E F
Wall socket
