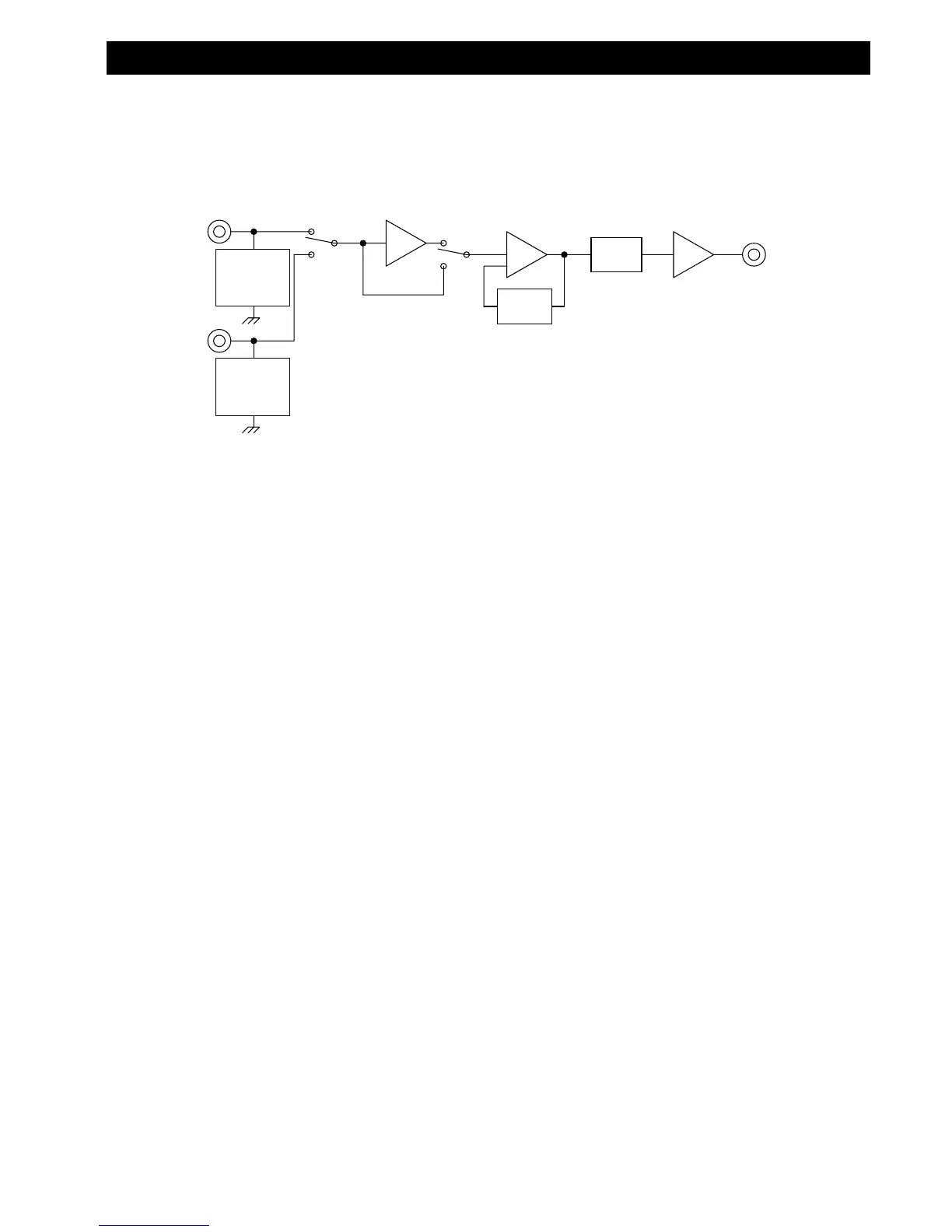

Blockdiagramm
INPUT1
Eingangsumschaltung MC-Vorverstärker RIAA-VorverstärkerPuerverstärker
NF-Typ
CR-Typ
26 dB
MC
MM
40 dB 0 dB
INPUT2
LINE OU
T
Lastumschaltung
Lastumschaltung
RIAA
(Niederbereich)
RIAA
(Hochbereich)
Lastumschaltung
MC-Lastimpedanz: INPUT 1 = DEMAG (0 Ω), 10 Ω, 50 Ω, 100 Ω, 300 Ω, 500 Ω, 1 KΩ, 10 KΩ
INPUT 2 = DEMAG (0 Ω), 100 Ω, 500 Ω, 1 kΩ, 10 kΩ
Kapazitive Last für MM: 0 pF, 100 pF, 330 pF
