Equipment required for controlling one door:-
12 volt DC power supply 2 amp minimum (EV-BPS)
Lock - Magnetic (EVML-250)/Yale type keep 12 volt lock (enter D)
Push to exit button (EVEXIT)
Green break glass emergency release (EVEBG)*
*Note:- for use with Magnetic lock only
Functions of the EZ-TAG2
The EZ-TAG2 can control up to two doors by use of Tags or pin
numbers
Selectable Pin number length 2, 3, 4, 5 and 6 digits (per zone).
Programmable door open time 00 to 99 seconds.
Two locations (zone 1, zone 2) are available for programming Tags
and Pin numbers.
1000 Tags or Pins can be programmed for zone 1.
10 Tags or Pins can be programmed for zone 2.
Two volt free change over relays one per door.
Door closed function (contact required).
2 push to exit button inputs, one per zone.
Programmable volt free change over relay for door bell function.
Programmable rear tamper.
Internal buzzer for tamper monitoring (auto cut off after 1 minute).

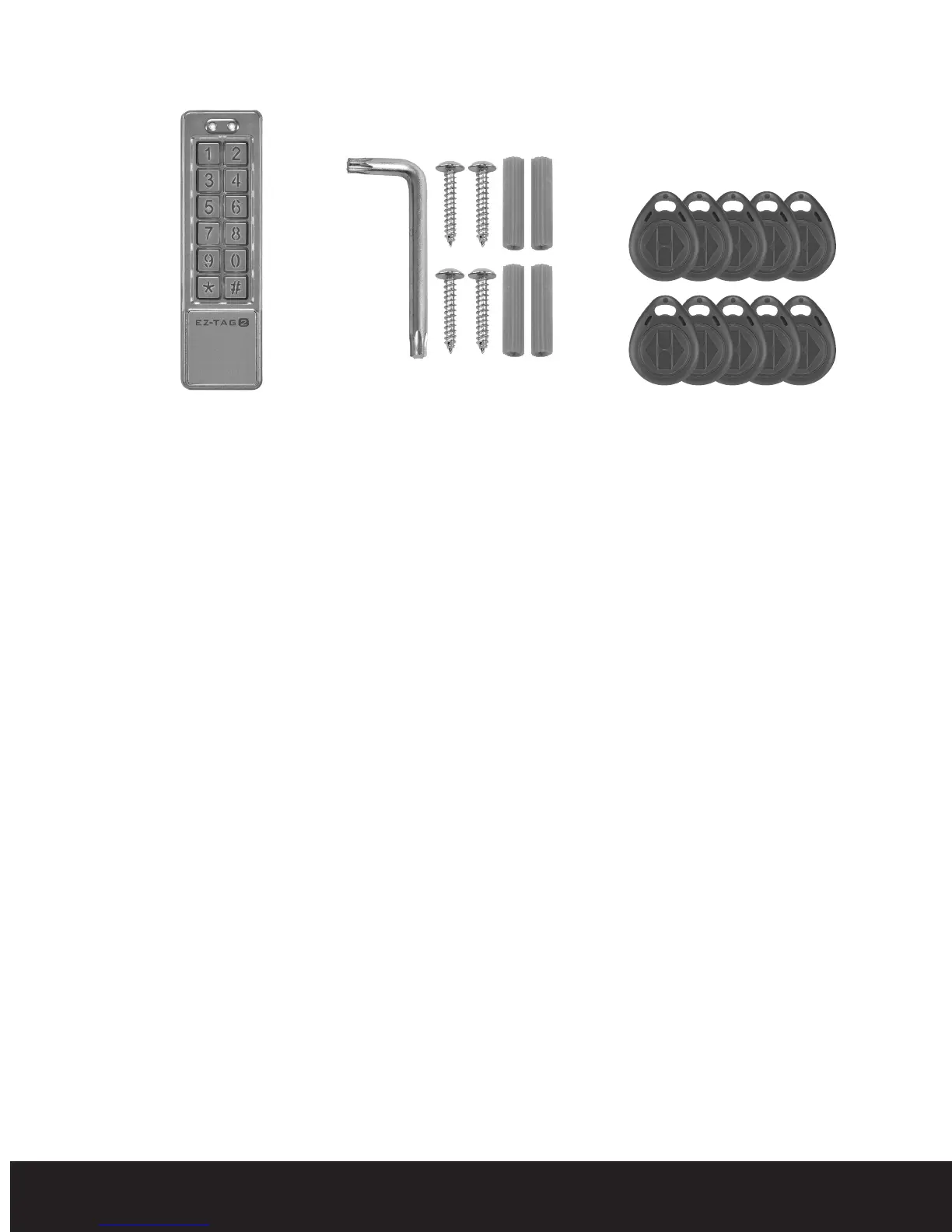

1 x Security Torx Key
4 x Screws and raw plugs
1 x Marking out template
10 x TagsEZ-TAG2
and Back Plate
Contents
