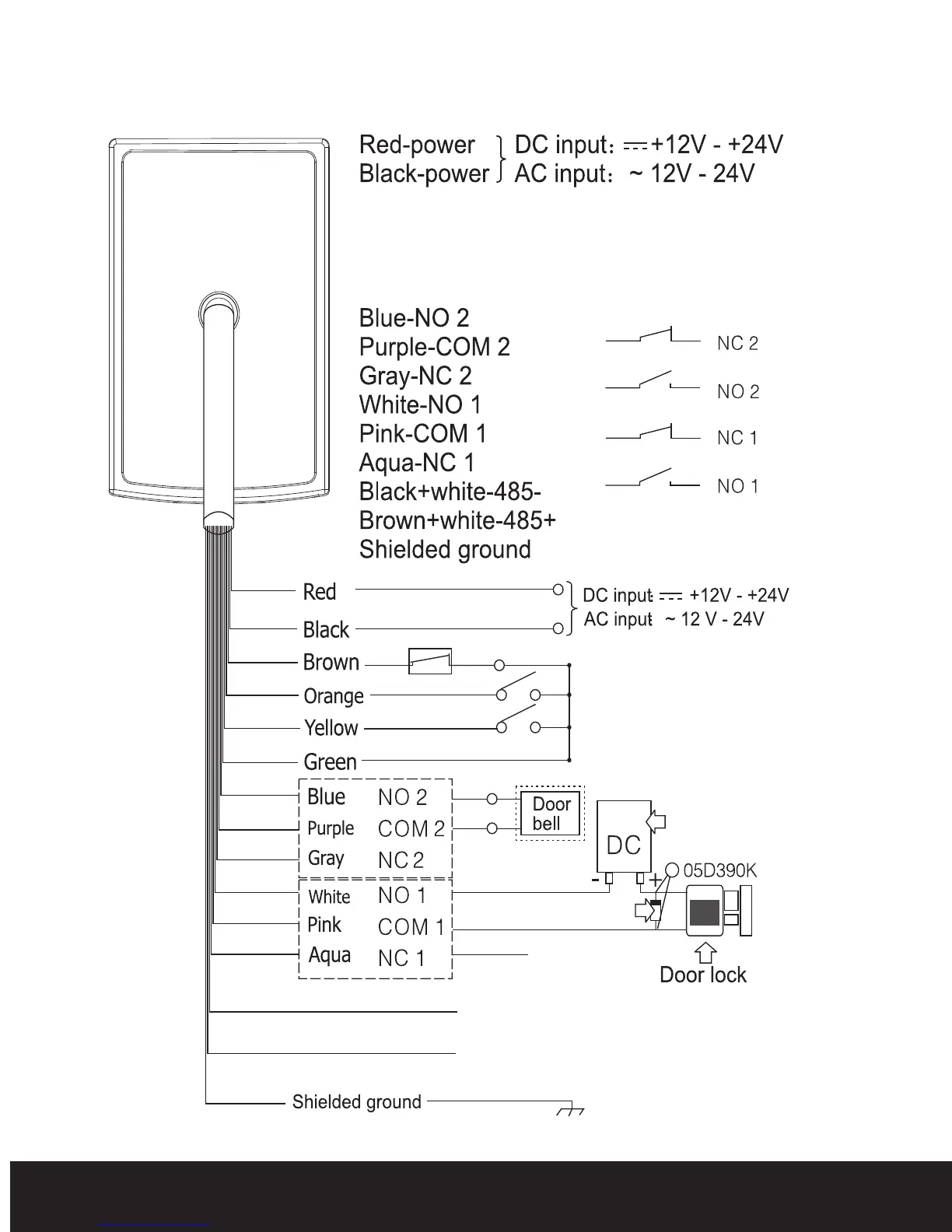

ESP EZ-TAG2 - Wiring Diagrams and Connections

4
Yellow-push to exit button - Zone 2
Additional power
supply for lock
Brown-door status detecting - reed switch
Orange-push to exit button - Zone 1
Green - COM
Not Used
Not Used
Exit button - Zone 2
Exit button - Zone 1
COM
Door contact - reed switch
Wiring Diagram and connections
EZ-TAG2 Manual.qxp_Layout 5 29/01/2015 08:16 Page 4
