ESP HDV4KB - Front Panel Components; System Indicator Lights; Remote Control Receiver; Front Panel USB Port

3
R
e
a
r
P
a
n
e
l
2
1
5
4
7
8 9
3
6
1 2 3

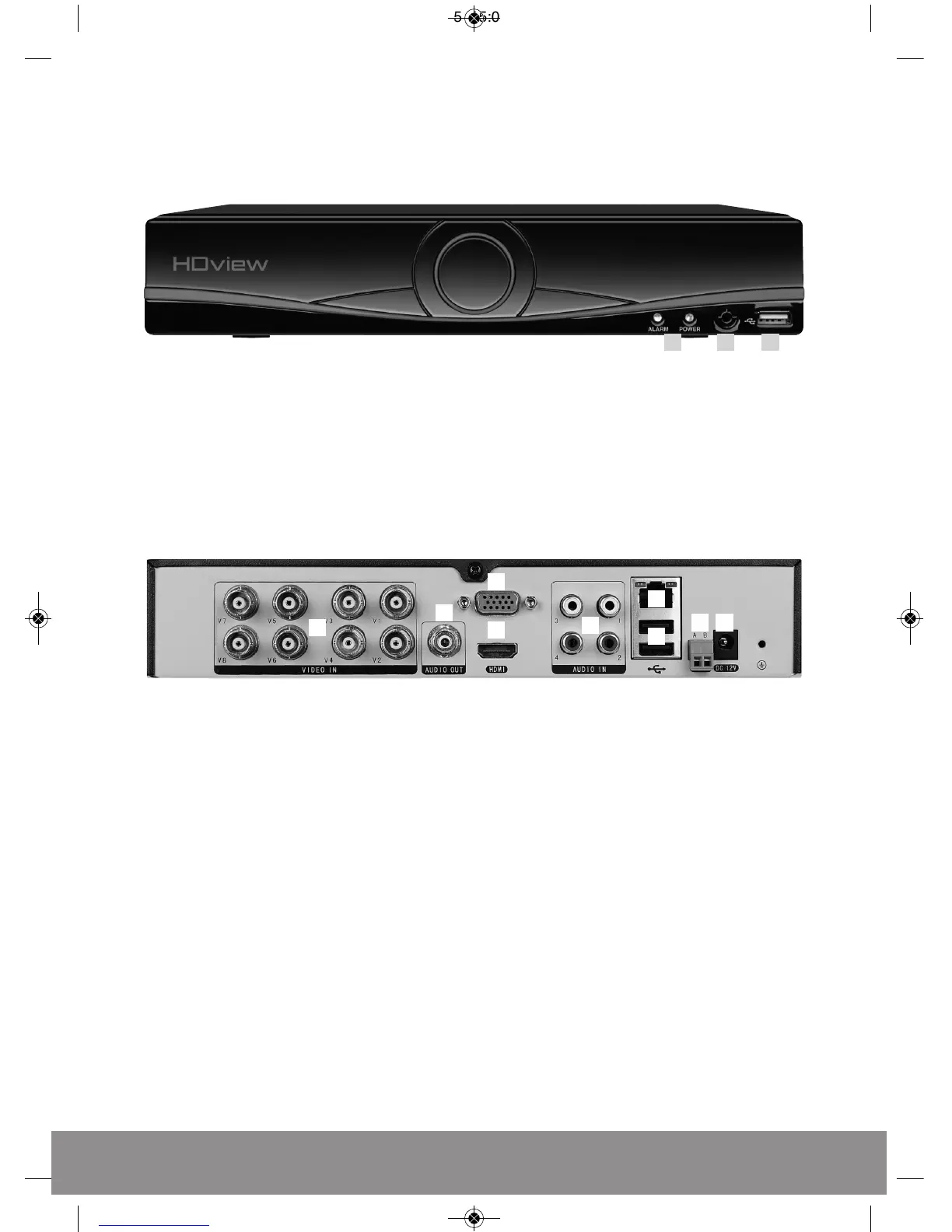

Front Panel
1. System indicator lights
2. Remote control receiver
3. USB for mouse or USB stick
1. VIDEO IN 1-4/8 for video input from camera
2. AUDIO OUT Audio output
3. VGA Output for monitor
4. HDMI Output for monitor
5. AUDIO IN Audio input
6. LAN Socket connection for ethernet cable
7. USB 1 + 2 For mouse control, USB backup and Wifi dongle
8. RS485 + - Signal Control
9. DC12V Power input
