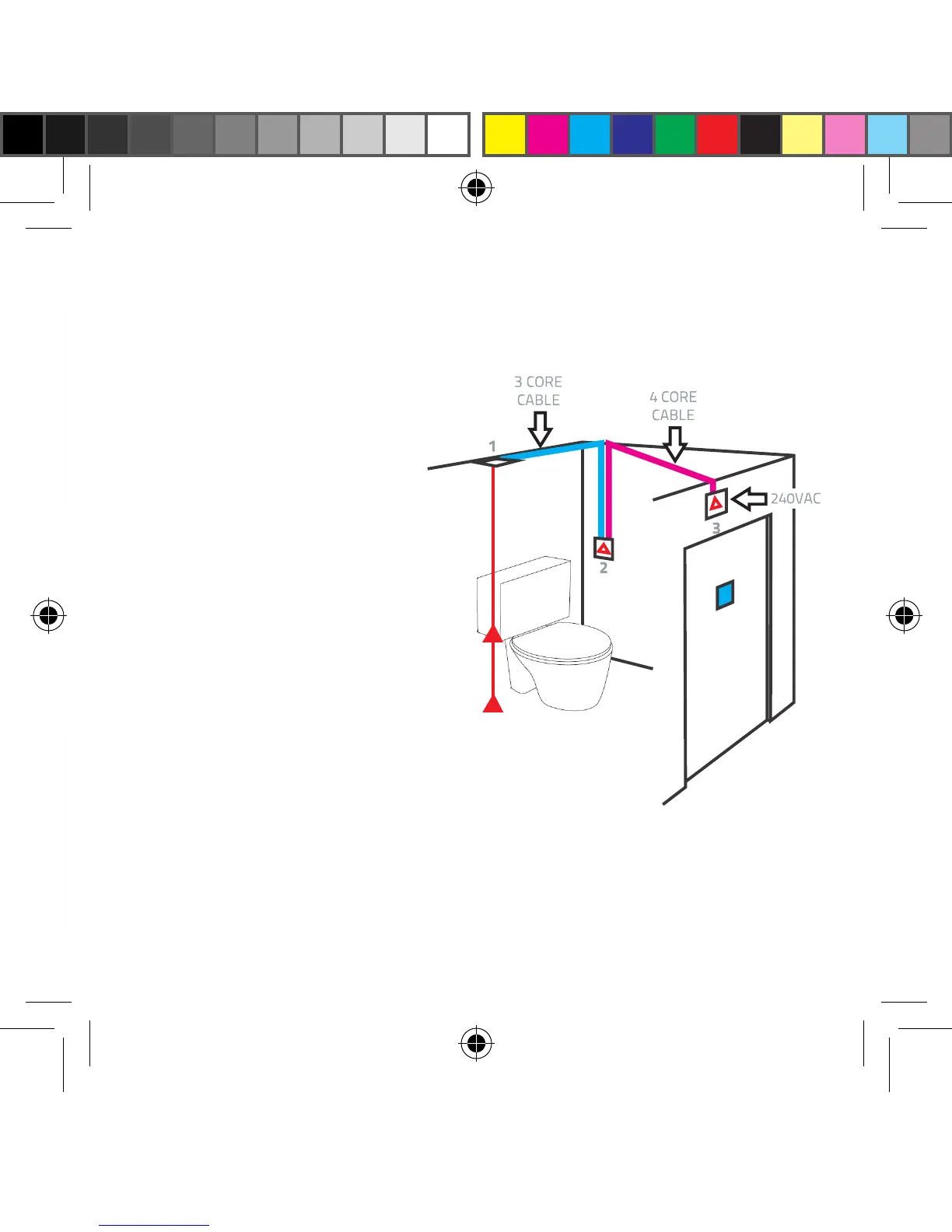

ESP UDTAKIT - Overview; Pull Cord Module; Reset Module; Input Power, Light and Buzzer Module

1. Pull cord Module
1st pull handle to be 100mm from floor.
2nd pull handle to be mounted
800/1000mm from floor.
2. Reset Module
Module to be mounted maximum
1200mm from the floor
3. Input Power, Light and
Buzzer Module
Activates when the Pull Cord
is triggered.
Also provides system power input
System designed to comply with care standards BS8300
Installation to be carried out by a qualified electrician.
Overview
