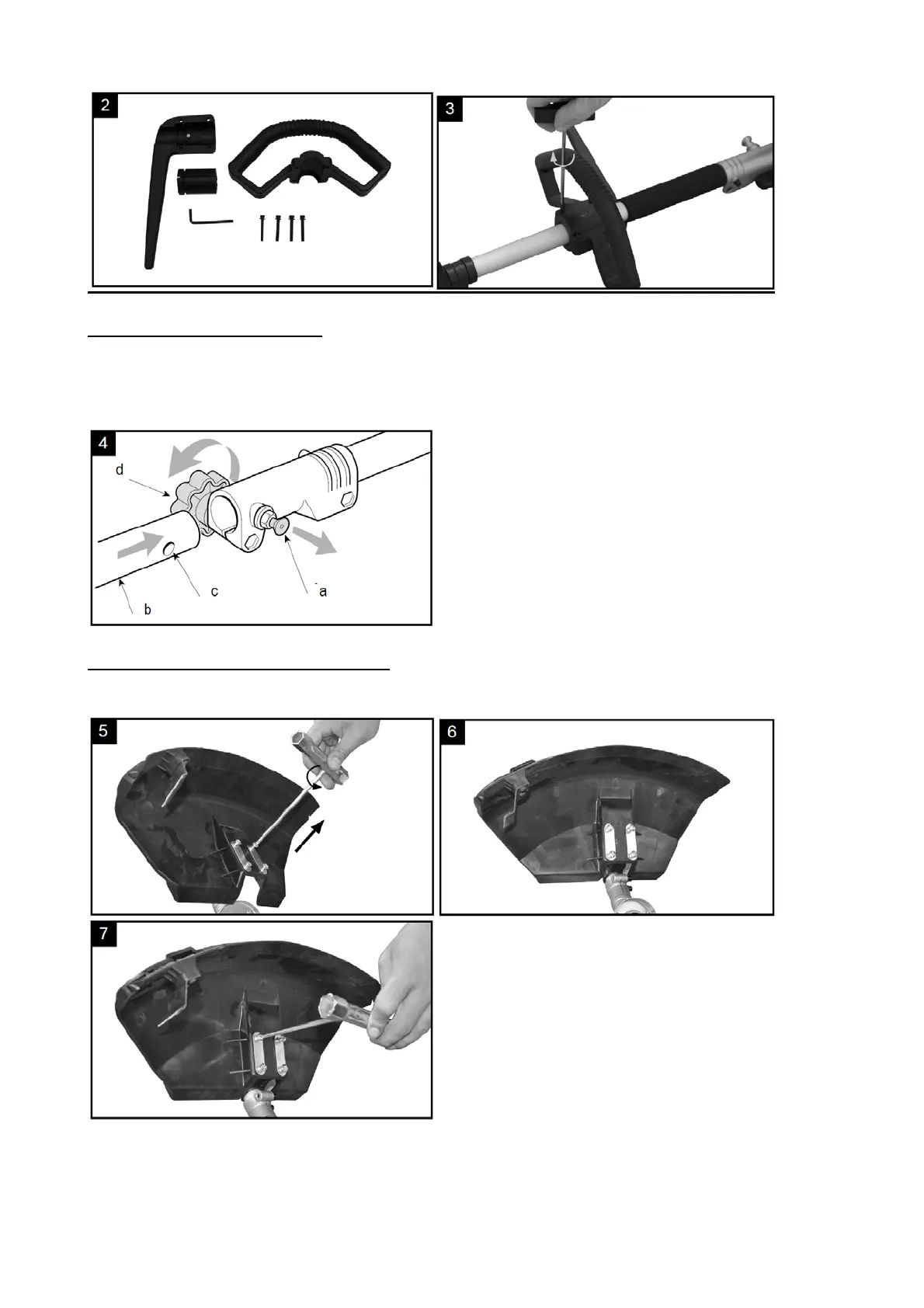

Mounting the shaft. Fig. 4
- Pull out the locking pin (a) and press the lower part of the shaft (b) downward until the
locking pin engages. The bolt (a) is in the right position when it is fully seated in the bore
(c).
- Lastly, tighten the knob (d) securely.
Assemble the safe guard. Fig. 5-7
- Fix the safe guard with hex key and wrench enclosed as standard accessories for tighten-
ing the nuts enough. Please see the below pictures.
WARNING! Use only original manufacturer‘s replacement parts, accessories and
attachments. Failure to do so can cause poor performance, possible injury and
may void your warranty. Never use the appliance without the guard assembled!
