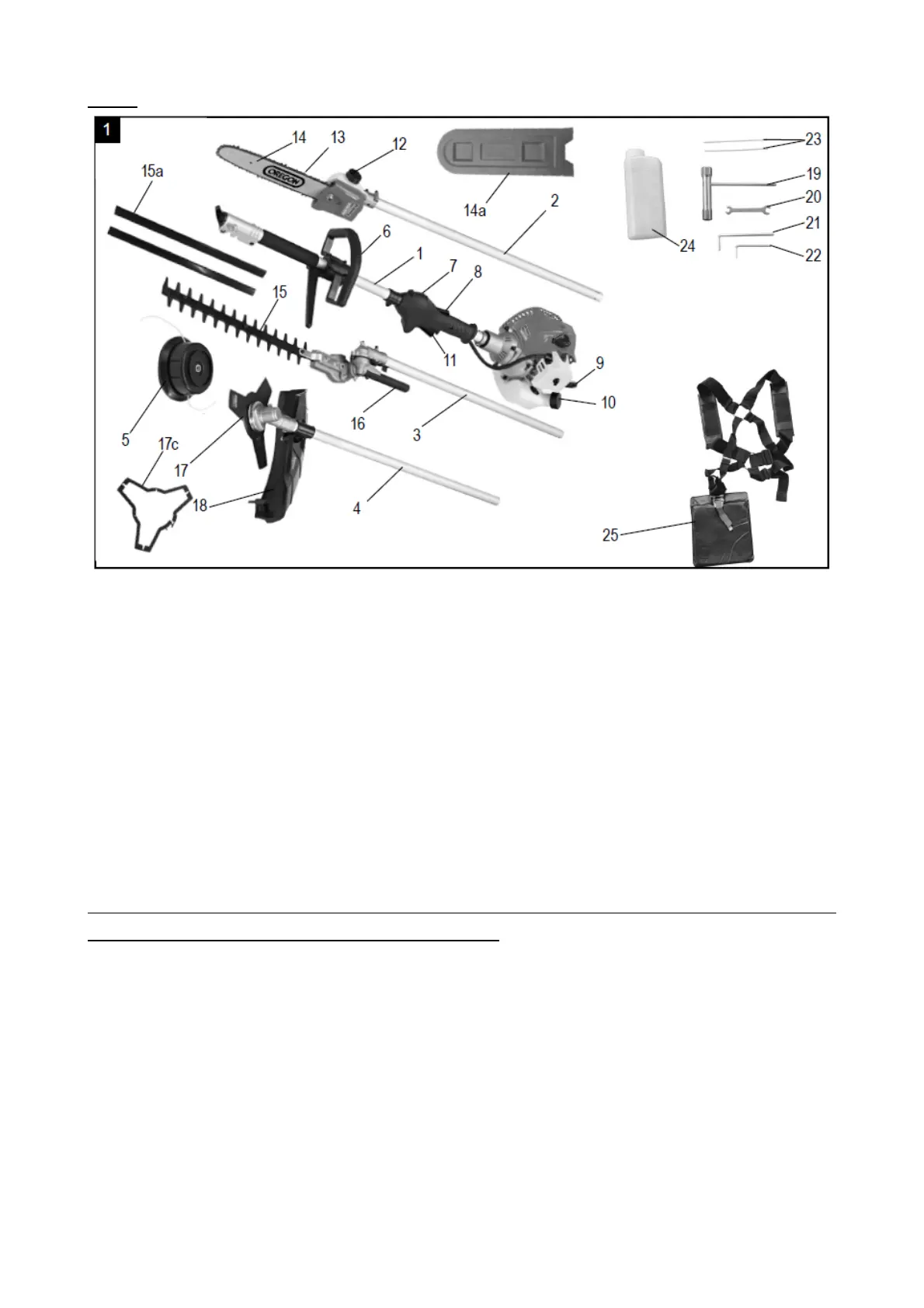

Parts
1. Motor drive unit
2. Pole saw
3. Hedge trimmer
4. Brush cutter
5. Gras trimmer
6. Front handle
7. Stop Switch
8. Throttle lever “lock”
9. Starter cable
10. Tank
11. Throttle lever
12. Automatic oil pump
13. Saw chain
PRIOR TO USE
Assemble the handle on the machine. Fig. 2-3
- Install the front handle as shown on the image 3.
- Make sure that you align the pin with the hole. Tighten the screws only loosely until you
have adjusted the most comfortable working position. The front handle should be aligned
as in picture 3 shown. Then tighten the screws.
14. Chain saw blade
14a Chain guard
15. Hedge trimmer cutting unit
16. Adjustment lever
17. Brush cutter cutting blade
17c Triangle blade
18. Protection shield (brush cutter + grass trimmer)
19. Spark plug wrench
20. Open-ended spanner (8 mm / 10 mm)
21. Allen key (size 4)
22. Allen key (size 6)
23. 2 x cable ties
24. Combined oil/petrol cylinder
25. Shoulder harness
