Esser 8000M - BSL Interface Module

Page 136
Fire Alarm Computer 8000C / M

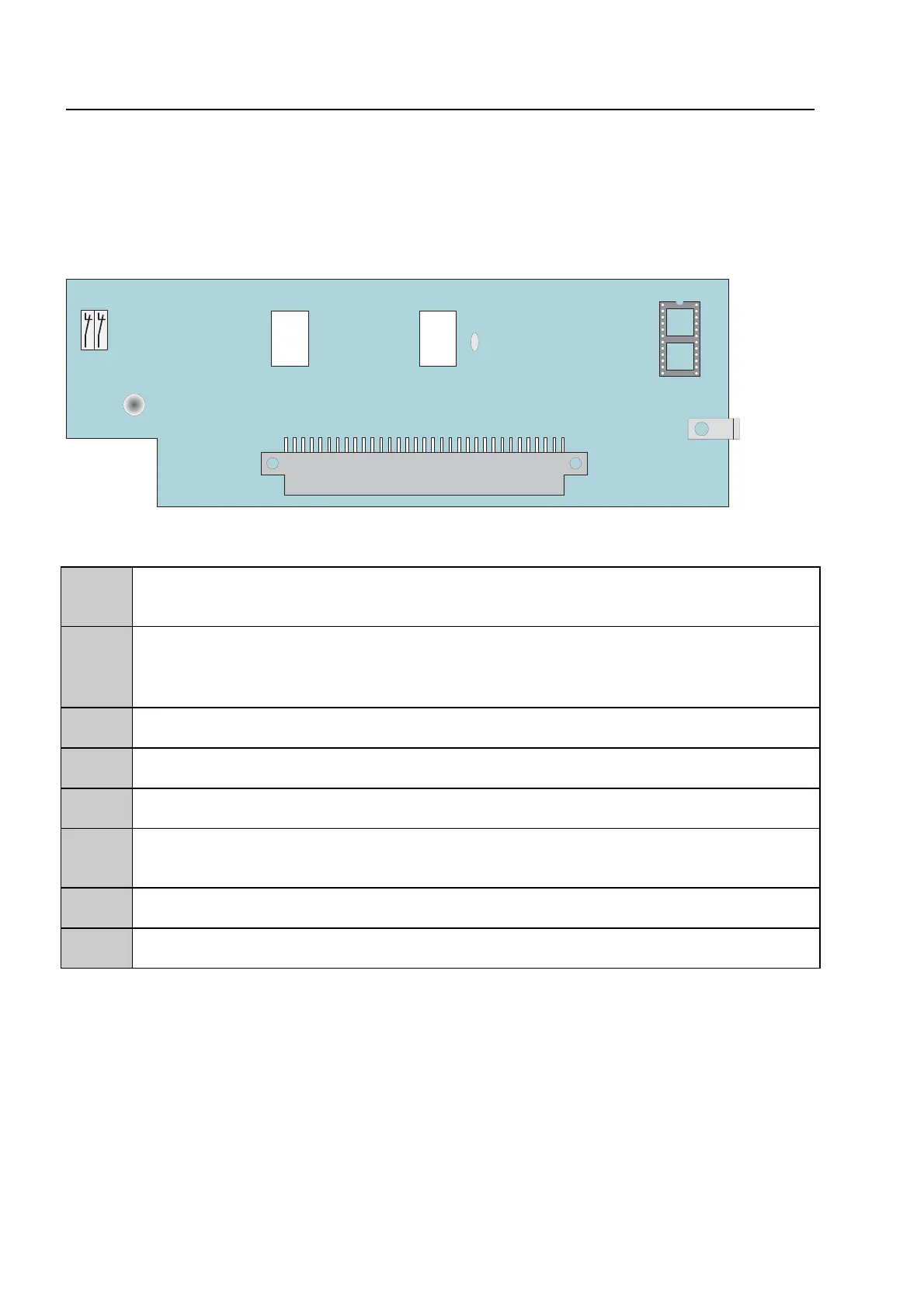

20 BSL interface module
The BSL interface module has the purpose of activating an extinguishing controller from the fire
alarm control pane. This module also accommodates a freely programmable, monitored relay (K1)
for a freely selectable control function.
X 1
S 1
K 3
K 1
F 1
T E S T
L E D
1
2
B S L m o d u l e
X1
64-way plug connector to micro module slot of the basic module, field device module o
r
extension module of the FACP 8000C / M
S1
Setting for freely programmable relay K1 (monitored/not monitored)
Contact 1/2 open
⇒
Relay K1 not monitored
Contact 1/2 closed
⇒
Relay K1 monitored (monitoring resistance 10 k
Ω
)
K1
Freely programmable, potential-free relay
K2
Monitored input for trouble message from extinguishing system control
K3
Relay for activating the extinguishing system (with appropriate internal wiring)
F1
Electronic fuse (multifuse): to reset, de-energize for approx. 30 seconds at the relevan
t
terminal card.
LED
Without indicator function
TEST
Test socket for in-factory adjustment
☞
Relay assignment on the BSL interface is programmed using the service PC and Customer
Data Editor 8000C / M software.
B
SL interface module
